Parameter Description
100%
90%
80%
70%
60%
50%
40%
30% ....................................................................................................................................................................................................................
....................................................................................................................................................................................................................
20%
10% ...................................................................................................................................................................................................................
0%
On
10 20 30 40 50 60
Time (s)

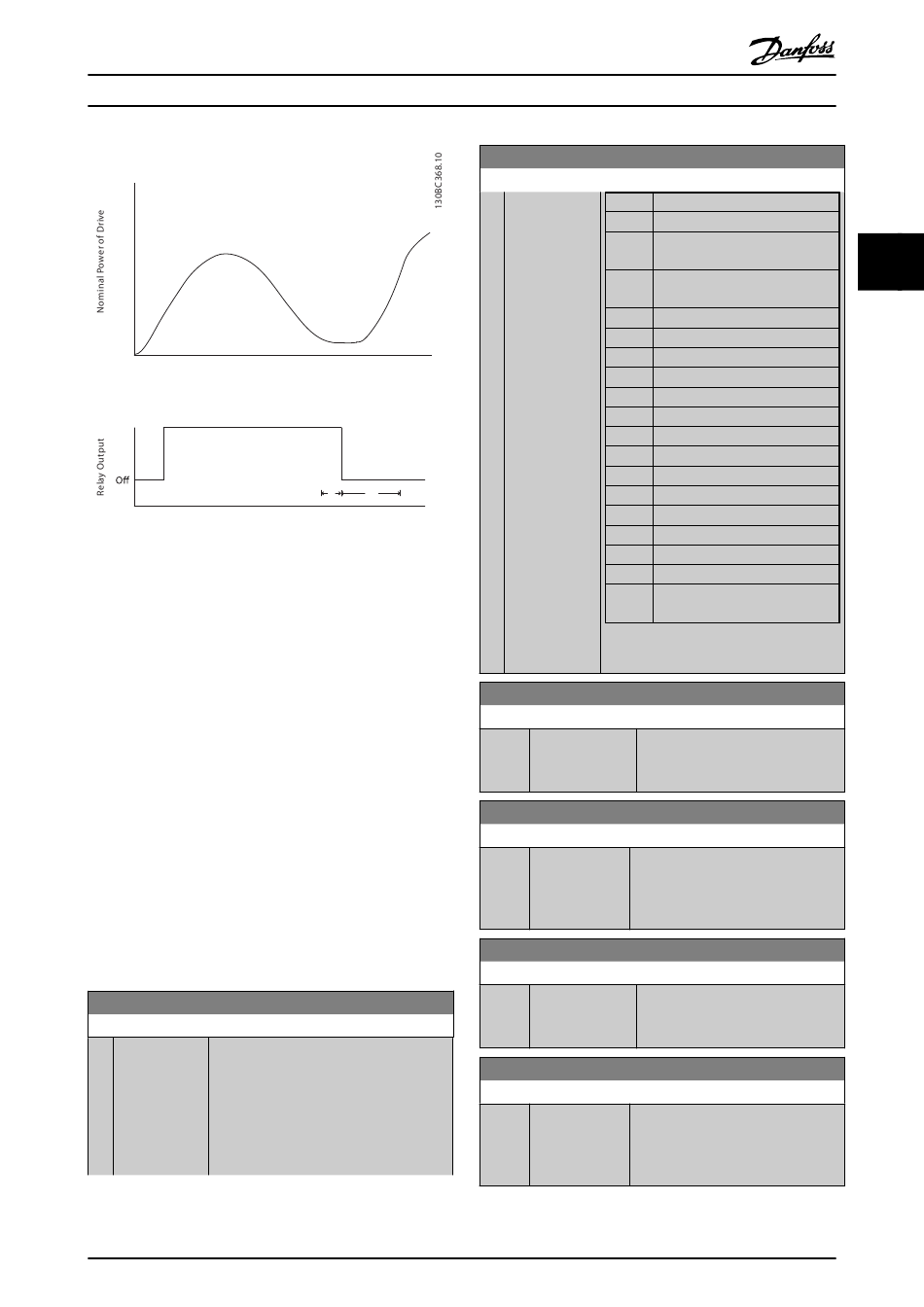

Illustration 3.28 Example of the output function
t represents the off delay timer (10 s).
1
t represents the Capacitor Reconnect Delay (5-80 AHF Cap
2
Reconnect Delay).
When the nominal power of the frequency converter
exceeds 20%, the output function turns on. When the
power goes below 10% there is an Off Delay Timer that
needs to expire before the output goes low, this is
represented by t . After the output goes low, the capacitor
1
reconnect delay timer needs to expire before the output is
allowed to be on again, represented by t
the nominal power is above 30% and the relay does not
turn on.
3.7.7 5-9* Bus Controlled
This parameter group selects digital and relay outputs via
a fieldbus setting.
5-90 Digital & Relay Bus Control
Range: Function:
0 [0 - This parameter holds the state of the
*
2147483647 ] digital outputs and relays that is controlled
by bus.
A logical '1' indicates that the output is
high or active.
A logical '0' indicates that the output is low
or inactive.
®
VLT AQUA Drive Programming Guide
t
t
1 2
70 80 90 100 110 120 130
. When t expires,
2 2
®
MG20O602 - VLT is a registered Danfoss trademark
5-90 Digital & Relay Bus Control
Range: Function:
Bit 0 CC Digital Output Terminal 27
Bit 1 CC Digital Output Terminal 29
Bit 2 GPIO Digital Output Terminal X
30/6
Bit 3 GPIO Digital Output Terminal X
30/7
Bit 4 CC Relay 1 output terminal
Bit 5 CC Relay 2 output terminal
Bit 6 Option B Relay 1 output terminal
Bit 7 Option B Relay 2 output terminal
Bit 8 Option B Relay 3 output terminal
Bit 9-15 Reserved for future terminals
Bit 16 Option C Relay 1 output terminal
Bit 17 Option C Relay 2 output terminal
Bit 18 Option C Relay 3 output terminal
Bit 19 Option C Relay 4 output terminal
Bit 20 Option C Relay 5 output terminal
Bit 21 Option C Relay 6 output terminal
Bit 22 Option C Relay 7 output terminal
Bit 23 Option C Relay 8 output terminal
Bit Reserved for future terminals
24-31
Table 3.15
5-93 Pulse Out #27 Bus Control
Range: Function:
0.00 % [0.00 - 100.00 Contains the frequency to apply to
*
%] the digital output terminal 27, when
it is configured as [Bus Controlled].
5-94 Pulse Out #27 Timeout Preset
Range: Function:
0.00 % [0.00 - 100.00 Contains the frequency to apply to
*
%] the digital output terminal 27, when
it is configured as [Bus Controlled
Timeout] and timeout is detected.
5-95 Pulse Out #29 Bus Control
Range: Function:
0.00 % [0.00 - 100.00 Contains the frequency to apply to
*
%] the digital output terminal 29, when
it is configured as [Bus Controlled].
5-96 Pulse Out #29 Timeout Preset
Range: Function:
0.00 % [0.00 - 100.00 Contains the frequency to apply to
*
%] the digital output terminal 29, when
it is configured as [Bus Controlled
Timeout] and timeout is detected
