Parameter Description
16-61 Terminal 53 Switch Setting
Option: Function:
View the setting of input terminal 53. Current =
0; Voltage = 1.
[0] Current
[1] Voltage
[2] Pt 1000 [°C]
[3] Pt 1000 [°F]
[4] Ni 1000 [°C]
[5] Ni 1000 [°F]
16-62 Analog Input 53
Range:
0.000 [-20.000 - 20.000 ] View the actual value at input 53.
*
16-63 Terminal 54 Switch Setting
Option: Function:
View the setting of input terminal 54. Current =
0; Voltage = 1.
[0] Current
[1] Voltage
[2] Pt 1000 [°C]
[3] Pt 1000 [°F]
[4] Ni 1000 [°C]
[5] Ni 1000 [°F]
16-64 Analog Input 54
Range:
0.000 [-20.000 - 20.000 ] View the actual value at input 54.
*
16-65 Analog Output 42 [mA]
Range: Function:
0.000 [0.000 - View the actual value at output 42 in
*
30.000 ] mA. The value shown reflects the
selection in 6-50 Terminal 42 Output.
16-66 Digital Output [bin]
Range: Function:
0 [0 - 15 ] View the binary value of all digital outputs.
*
16-67 Pulse Input #29 [Hz]
Range: Function:
0 [0 - 130000 ] View the actual frequency rate on terminal
*
29.
16-68 Pulse Input #33 [Hz]
Range: Function:
0 [0 - 130000 ] View the actual frequency rate on terminal
*
33.
®
VLT AQUA Drive Programming Guide
Function:
Function:
®
MG20O602 - VLT is a registered Danfoss trademark
16-69 Pulse Output #27 [Hz]
Range: Function:
0 [0 - 40000 ] View the actual value on terminal 27 in digital
*
output mode.
16-70 Pulse Output #29 [Hz]
Range: Function:
0 [0 - 40000 ] View the actual value of pulses on terminal 29
*
in digital output mode.

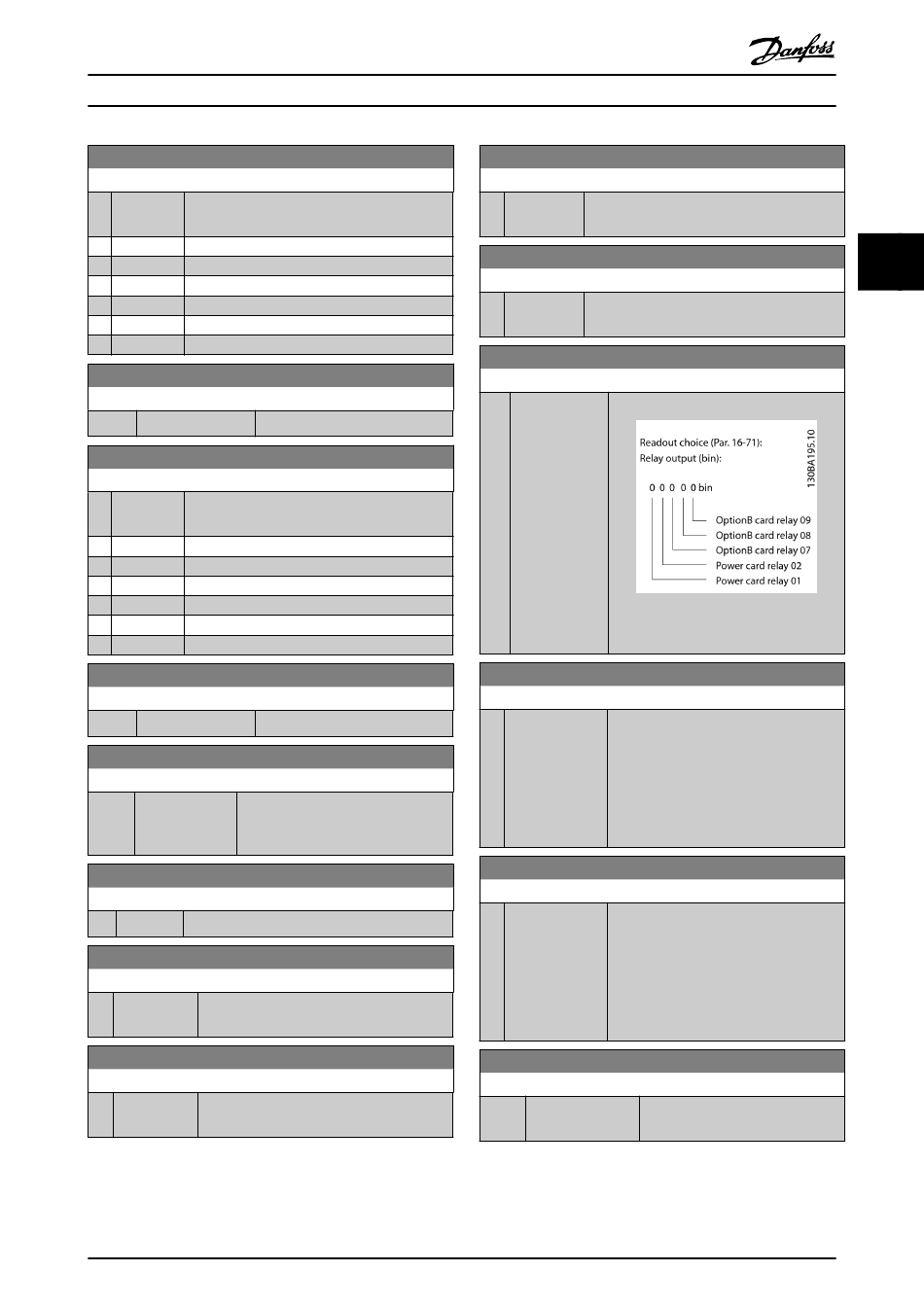

16-71 Relay Output [bin]
Range: Function:
0 [0 - 65535 ] View the settings of all relays.
*
Illustration 3.44
16-72 Counter A
Range: Function:
0 [-2147483648 - View the present value of Counter A.
*
2147483647 ] Counters are useful as comtor operands,
see 13-10 Comparator Operand.
The value can be reset or changed either
via digital inputs (parameter group 5-1*)
or by using an SLC action (13-52 SL
Controller Action).
16-73 Counter B
Range: Function:
0 [-2147483648 - View the present value of Counter B.
*
2147483647 ] Counters are useful as comtor operands
(13-10 Comparator Operand).
The value can be reset or changed either
via digital inputs (parameter group 5-1*)
or by using an SLC action (13-52 SL
Controller Action).
16-75 Analog In X30/11
Range: Function:
0.000 [-20.000 - 20.000 ] View the actual value at input
*
X30/11 of MCB 101.
3 3
