3.17 Parameters 20-** FC Closed Loop

3.17.1 20-** Drive Closed Loop
This parameter group is used for configuring the closed
loop PID Controller, that controls the output frequency of
3 3
the frequency converter.
3.17.2 20-0* Feedback
This parameter group is used to configure the feedback
signal for the frequency converter's closed loop PID
Controller. Whether the frequency converter is in Closed
Setpoint 1
P 20-21
Setpoint 2
P 20-22
Setpoint 3
P 20-23
Feedback 1 Source
P 20-00
Feedback 2 Source
P 20-03
Feedback 3 Source
P 20-06

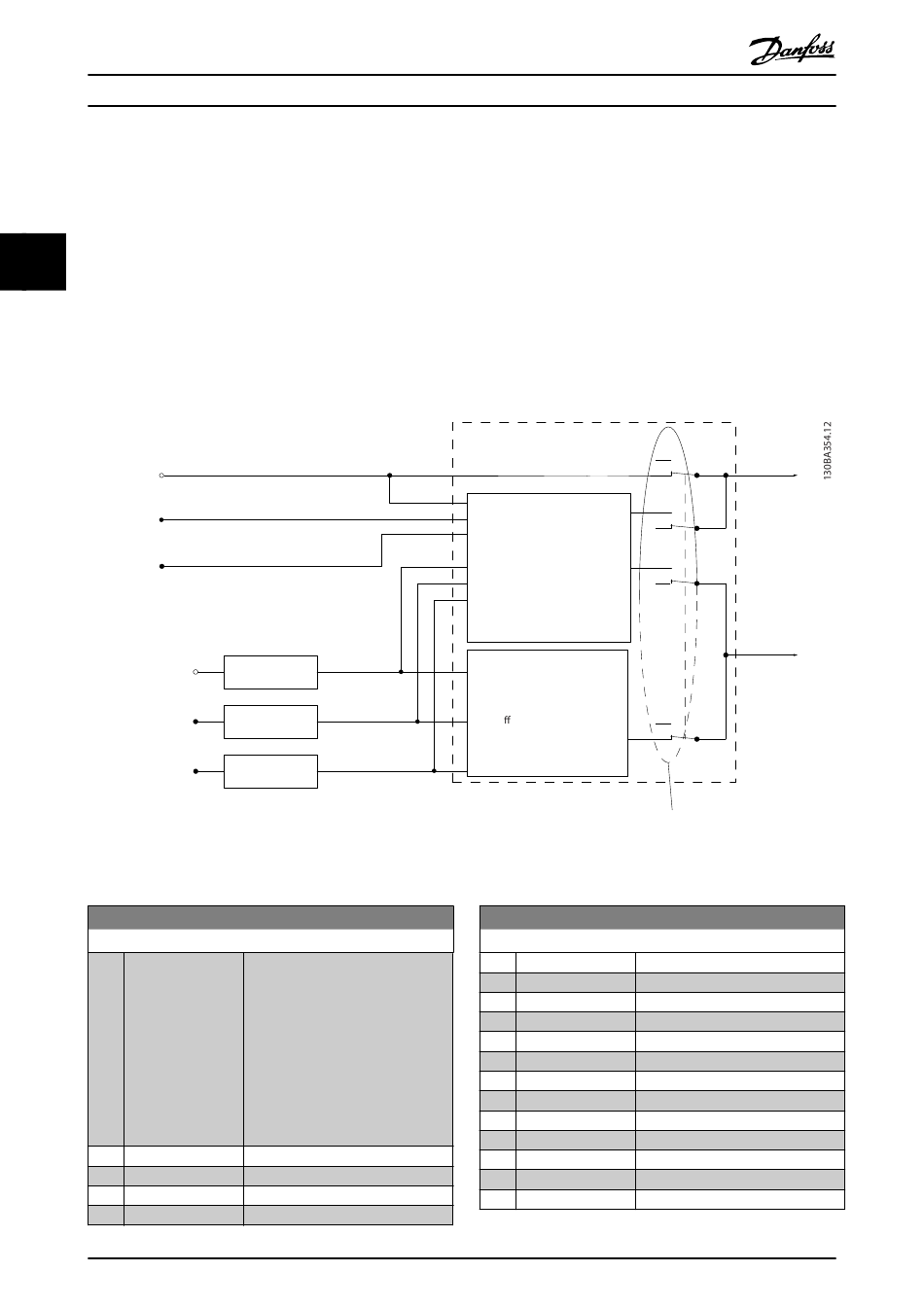

Illustration 3.45
20-00 Feedback 1 Source
Option:
[0] No function
[1] Analog input 53
[2] Analog input 54
*
[3] Pulse input 29
126
®
VLT AQUA Drive Programming Guide
Feedback 1
Feedback conv.
P 20-01
Feedback conv. Feedback 2
P 20-04
Feedback conv. Feedback 3
P 20-07
Function:
Up to three different feedback
signals can be used to provide the
feedback signal for the frequency
converter's PID Controller.
This parameter defines which input
will be used as the source of the
first feedback signal.
Analog input X30/11 and Analog
input X30/12 refer to inputs on the
optional General Purpose I/O board.
MG20O602 - VLT
Loop Mode or Open Loop Mode, the feedback signals can
be shown on the frequency converter's display. It can also
be used to control a frequency converter analog output,
and be transmitted over various serial communication
protocols.
Multi setpoint min.
Multi setpoint max.
Feedback 1 only
Feedback 2 only
Feedback 3 only
Sum (1+2+3)
Di erence (1-2)
Average (1+2+3)
Minimum (1|2|3)
Maximum (1|2|3)
20-00 Feedback 1 Source
Option:
[4] Pulse input 33
[7] Analog input X30/11
[8] Analog input X30/12
[9] Analog Input X42/1
[10] Analog Input X42/3
[11] Analog Input X42/5
[15] Analog Input X48/2
[100] Bus feedback 1
[101] Bus feedback 2
[102] Bus feedback 3
[200] Ext. Closed Loop 1
[201] Ext. Closed Loop 2
[202] Ext. Closed Loop 3
®
