Alignment Operation

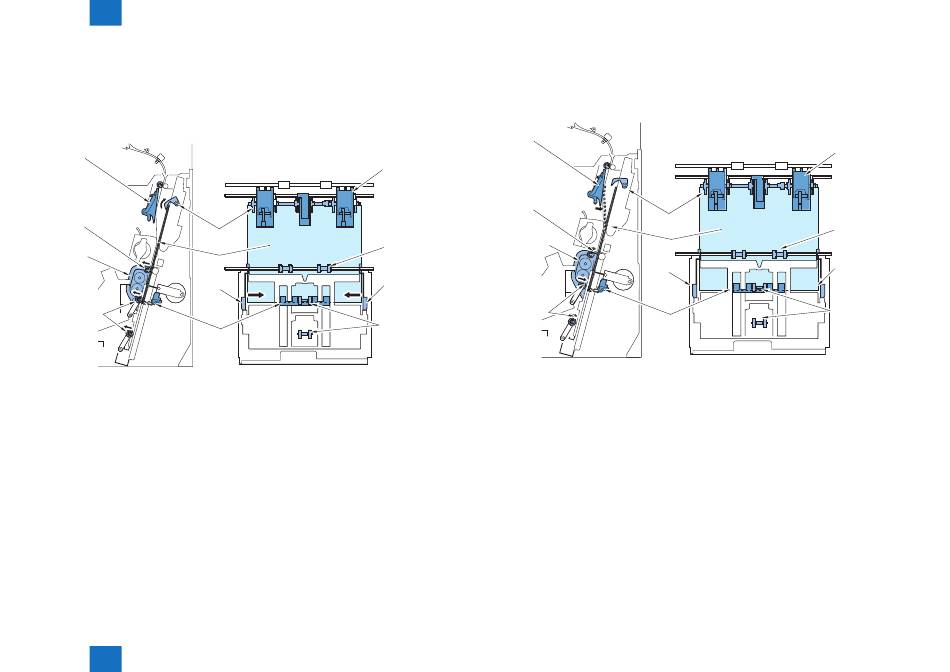

1) The machine opens the trailing edge retainer and disengages the alignment roller and
lead-in roller. It then narrower the alignment guide in accordance with the paper size to
align the paper stack.
Tapping plate
Pull roller
Trailing edge
stay
Alignment
Paper
guide
Alignment
guide
Alignment
roller
Leading
edge
stopper
2 Technology > Saddle Stitcher Unit > Alignment Operation
2) The machine engages the alignment roller again and the paper is pushed to the leading
edge stopper, and then the knocking plate taps the trailing edge of paper.
Tapping plate
Tapping plate
Pull roller
Alignment
Pull roller
guide
Alignment
guide
Alignment
Alignment
roller
roller
F-2-42 F-2-42
Tapping plate
Trailing edge
Pull roller
stay
Paper
Alignment
guide
Leading
edge
stopper
2-26
Alignment
guide
Alignment
roller
F-2-43 F-2-43
