Audio Submenu

This menu is available for the scaled DTP2/XTP/HDBT output only.

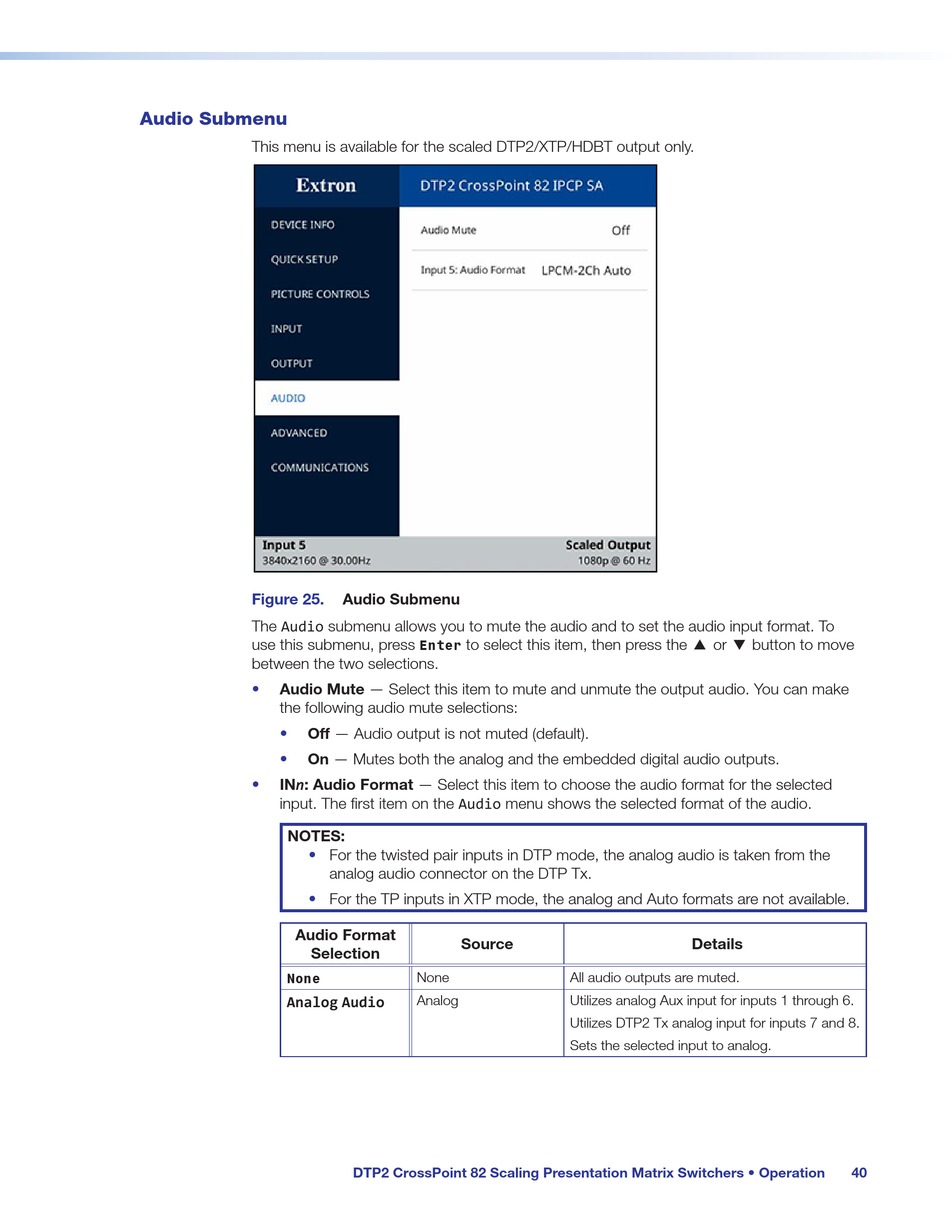

Figure 25.
The Audio submenu allows you to mute the audio and to set the audio input format. To
use this submenu, press
between the two selections.
• Audio Mute — Select this item to mute and unmute the output audio. You can make
the following audio mute selections:
Off — Audio output is not muted (default).
•
• On — Mutes both the analog and the embedded digital audio outputs.
• INn: Audio Format — Select this item to choose the audio format for the selected
input. The first item on the Audio menu shows the selected format of the audio.
NOTES:
•
•
Audio Format
Selection
None
Analog Audio
Audio Submenu
to select this item, then press the
Enter
For the twisted pair inputs in DTP mode, the analog audio is taken from the
analog audio connector on the DTP Tx.
For the TP inputs in XTP mode, the analog and Auto formats are not available.
Source
None
Analog
DTP2 CrossPoint 82 Scaling Presentation Matrix Switchers • Operation

or

Details
All audio outputs are muted.
Utilizes analog Aux input for inputs 1 through 6.
Utilizes DTP2 Tx analog input for inputs 7 and 8.
Sets the selected input to analog.
button to move
