To adjust the settings of a submenu item:
1.
Navigate to an adjustable submenu item and press the Enter or „ button to select the
item.
2.
Press the ƒ and „ buttons to adjust the setting or select a specific adjustable setting
within the selected submenu item.
If the selected submenu item has multiple adjustable settings, press the
buttons to select a value.
3.
Press the Enter button to accept the new value and return to the submenu.
NOTE: To cancel a change, press the ƒ button to return to the submenu list (left
column) without pressing Enter. Then, press the
different submenu.
To exit the on-screen menu system:
From any menu screen, press the Menu button to close the on-screen menu and exit the
system. Alternatively, wait for the menu display to time out (approximately 60 seconds).

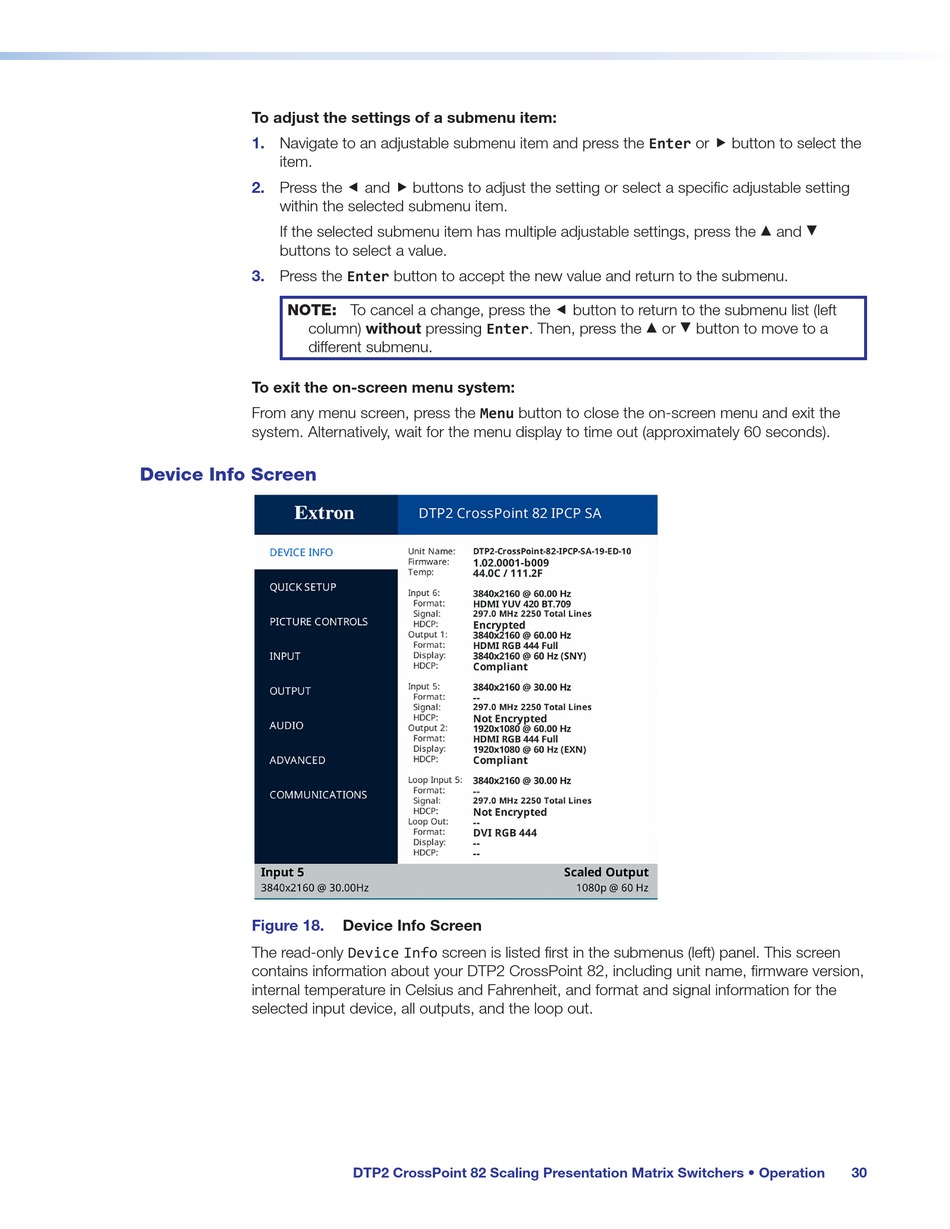

Device Info Screen
Figure 18.
The read-only Device Info screen is listed first in the submenus (left) panel. This screen
contains information about your DTP2 CrossPoint 82, including unit name, firmware version,
internal temperature in Celsius and Fahrenheit, and format and signal information for the
selected input device, all outputs, and the loop out.
Device Info Screen
DTP2 CrossPoint 82 Scaling Presentation Matrix Switchers • Operation
>
<
and
>
<
or
button to move to a
30
