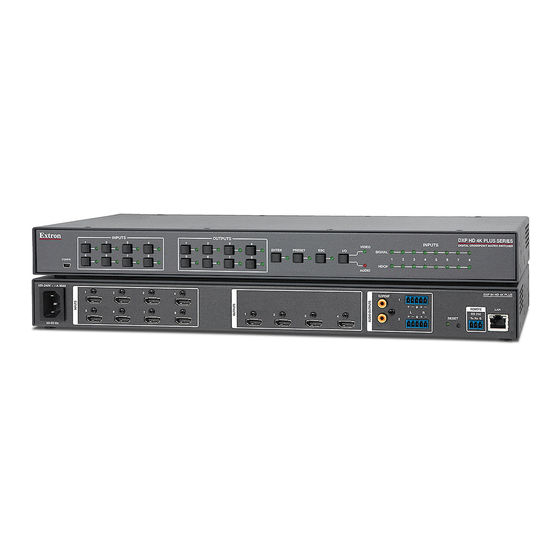

DXP HD 4K PLUS Series • Setup Guide
The DXP HD 4K PLUS Series are digital matrix switchers that route HDMI signals from multiple sources to HDMI-equipped
display devices. They support computer and video resolutions up to 4K @ 60 Hz. They also support HDMI 2.0b specifications,
including data rates up to 18 Gbps, HDR Deep Color up to 12-bit, 3D, and HD lossless audio formats. These switchers are
HDCP 2.2 compliant and incorporate Extron technologies including SpeedSwitch, EDID Minder, and Key Minder. Digital audio can
be de-embedded from any input and assigned to digital or analog stereo outputs. The following matrix sizes are available:
•
DXP 44 HD 4K PLUS — 4 inputs by 4 outputs
•
DXP 84 HD 4K PLUS — 8 inputs by 4 outputs
•
DXP 88 HD 4K PLUS — 8 inputs by 8 outputs
This setup guide enables you to quickly set up and configure your DXP matrix switcher. Step-by-step instructions show
you how to connect the hardware and to perform basic operations using both the front panel controls and selected Simple
Instruction Set (SIS) commands. The guide also shows you how to connect to the built-in web page and load and start up the
Product Configuration Software (PCS), which you can also use to configure and operate the switcher. For additional information
and specifications, see the DXP HD 4K PLUS product page at www.extron.com.
The terms "DXP," "matrix," "switcher," and "DXP matrix switcher" are used interchangeably in this guide to refer to all DXP HD 4K
PLUS models.
Extron
ANT A
USB
ShareLink 250 W US
1 2
E
ShareLink 250 W
Wireless Collaboration
Gateway
ANT A
USB
1 2
E
ShareLink 250 W
HDMI
100-240V ~ 1.0A MAX
50-60 Hz
CPUs
Extron
IPCP Pro 550
IP Link Pro
Control Processor
HDMI
100-240V ~ 50-60Hz
1 2 1 2 3 7 1
+ - + - T x Rx G Tx Rx G T x Rx G Tx R x G RTS CTS S G
SWITCHED 12 VDC
40W MAX TOTAL
3 4 4 5 6 8 5
+ - + - T x R x G Tx R x G T x Rx G Tx R x G RTS CTS S G
5A MAX 12 VDC COM
Extron
STATUS
SEND
INPUT POWER
CONFIG LINK
OUTPUT
OFF
DTP2 T 211
DTP2 T 211
INPUTS SIG LINK
POWER OVER DTP2
12V AUDIO
--A MAX RS-232 IR
DTP2 OUT
Tx Rx G Tx Rx Transmitter
CATx Cable
up to 330'
(100 m)
RS-232
HDMI
Projector
Extron
STATUS DTP2 R 211
INPUT SEND
POWER
CONFIG LINK
OUTPUT
OFF
DTP2 R 211
SIG LINK OUTPUTS Receiver
POWER OVER DTP2 AUDIO
12V RS-323 IR L R
--A MAX
Tx Rx G Tx Rx DTP2 IN
Wireless Keyboard and Mouse
esc F1 F2 F3 F4 F5 F6 F7 F8 F9 F10 F11 F12 F13 F14 F15 F16 F17 F18 F19
~ ! @ # $ % ^ & * ( ) _ + page = /
` 1 2 3 4 5 6 7 8 9 0 - = delete fn home up clear *
Room 1
Q W E R T Y U I O P [ { } ] | \ delete end page 7 8 9 -
tab down
: "
caps lock A S D F G H J K L ; ' return 4 5 6 +
Z X C V B N M < > ? 1 2 3
shift , . / shift
alt 0 .
control option command command option control enter

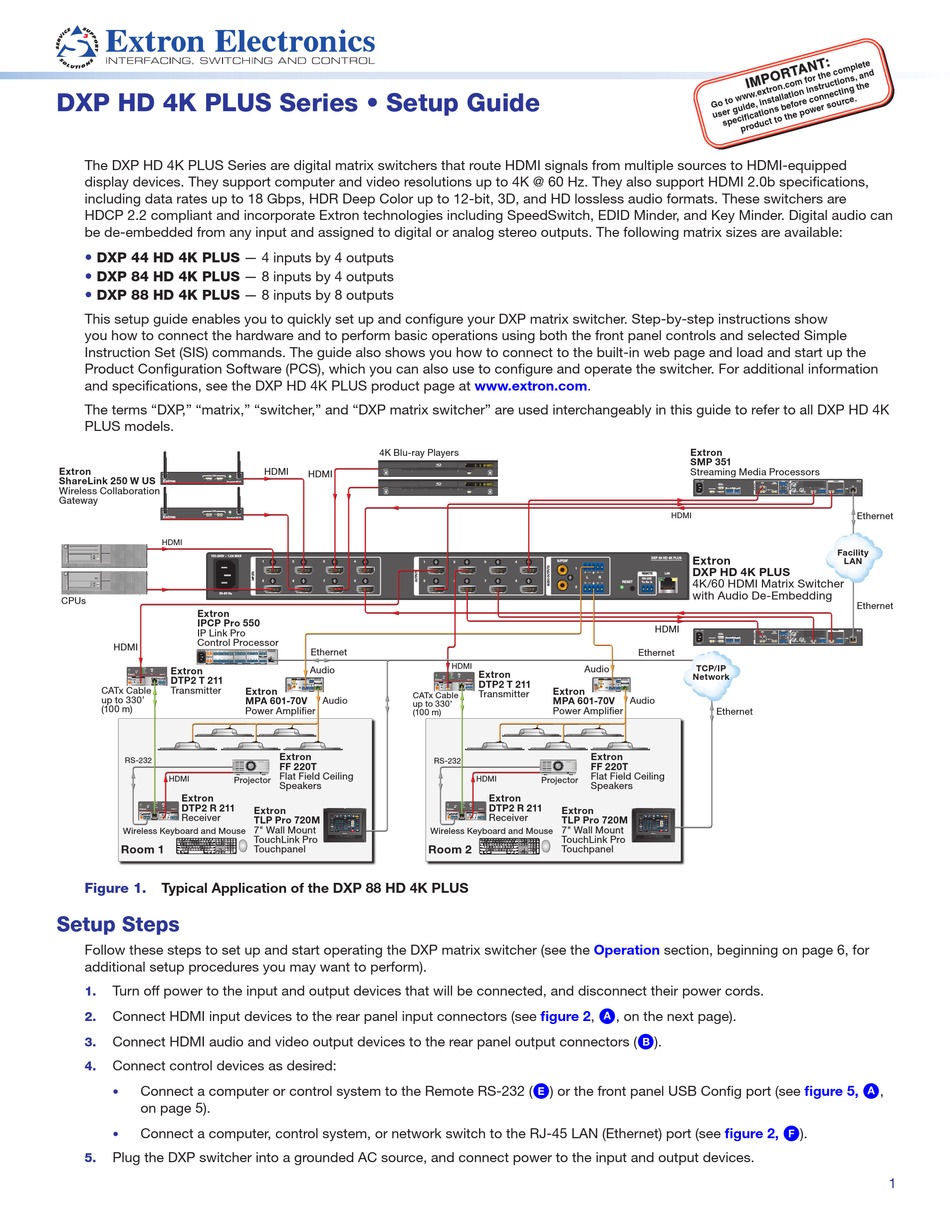

Typical Application of the DXP 88 HD 4K PLUS
Figure 1.
Setup Steps
Follow these steps to set up and start operating the DXP matrix switcher (see the
additional setup procedures you may want to perform).
Turn off power to the input and output devices that will be connected, and disconnect their power cords.
1.
Connect HDMI input devices to the rear panel input connectors (see
2.
Connect HDMI audio and video output devices to the rear panel output connectors (
3.
Connect control devices as desired:
4.
Connect a computer or control system to the Remote RS-232 (
•
on page 5).
Connect a computer, control system, or network switch to the RJ-45 LAN (Ethernet) port (see
•
Plug the DXP switcher into a grounded AC source, and connect power to the input and output devices.
5.
4K Blu-ray Players
HDMI
HDMI
STANDBY/ON
ANT B
STANDBY/ON
ANT B
1 2 3 4
5 6 7 8
Ethernet
IPCP PRO 550
2 3 4 1 2 3 4 P W R O UT = 1 2W
S G S G S G +V +S - S G
eBUS LAN
6 7 8 5 6 7 8 1 2 3 4 G
S G S G S G
IR/SERIAL RELAYS FLEX I/O
Audio
INPUTS MPA 601-70V
TIMER OFF G
L 70V OUTPUT
(SUMMED) STANDBY
POWER L (SUMMED) R 10V 50mA
Extron 12V 1.3A MAX R
R
V C G CLASS 2 WIRING
REMOTE CATx Cable
MPA 601-70V Audio
up to 330'
Power Ampli er
(100 m)
Extron
FF 220T
Flat Field Ceiling
Speakers
Extron
TLP Pro 720M
Doc
Laptop PC DVD VCR Cam Tuner 1 2 3
Display Volume
Tuner
On 1 2 3 Channel Presets
Off
4 5 6
7" Wall Mount Mute Mute
7 8 9
Control Room Last
0 More
Screen Enter Presets
Lighting Help December 15, 2013 - 7:58 AM System Audio Control
Off
E
TouchLink Pro
Touchpanel
PQLS HDMI OPEN/CLOSE FL OFF
USB
PQLS HDMI OPEN/CLOSE FL OFF
USB
S/PDIF
1 2 3 4
1
L
R
5 6 7 8
2
HDMI
Audio
Extron
STATUS
INPUT SEND
POWER
CONFIG LINK
OUTPUT DTP2 T 211
OFF DTP2 T 211
INPUTS L
POWER SIG LINK OVER DTP2 (SUMMED)
12V POWER
--A MAX AUDIO RS-232 IR Extron 12V 1.3A MAX
R
Transmitter
DTP2 OUT Tx Rx G Tx Rx
MPA 601-70V
Power Ampli er
Extron
RS-232
FF 220T
Flat Field Ceiling
HDMI
Projector
Speakers
Extron
STATUS DTP2 R 211
INPUT SEND
POWER
CONFIG LINK Extron
OUTPUT
OFF
DTP2 R 211
SIG LINK OUTPUTS Receiver
POWER OVER DTP2 AUDIO
12V RS-323 IR L R TLP Pro 720M
--A MAX
Tx Rx G Tx Rx DTP2 IN
7" Wall Mount
Wireless Keyboard and Mouse
TouchLink Pro
esc F1 F2 F3 F4 F5 F6 F7 F8 F9 F10 F11 F12 F13 F14 F15 F16 F17 F18 F19
~ ! @ # $ % ^ & * ( ) _ +
` 1 2 3 4 5 6 7 8 9 0 - = fn home page up clear = / *
Room 2 delete
Q W E R T Y U I O P { } | page 7 8 9 - Touchpanel
tab [ ] \ delete end down
A S D F G H J K L ; : " ' 4 5 6 +
caps lock return
< > ?
shift Z X C V B N M , . / shift 1 2 3
alt 0 .
control option command command option control enter
