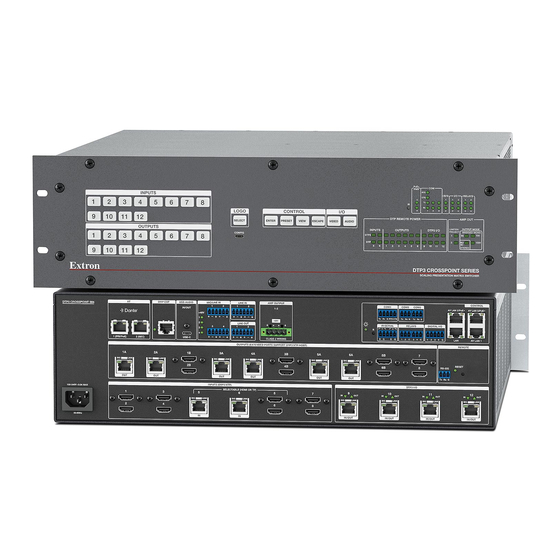

DTP3 CrossPoint Series • Setup Guide
IMPORTANT NOTE:
Go to
www.extron.com
product to the power source.
This guide provides basic instructions for an experienced technician to install the DTP3 CrossPoint matrix switchers.
The DTP3 CrossPoint matrix switchers distribute HDCP-compliant HDMI and Extron proprietary DTP video and audio signals to any
combination of outputs simultaneously (see figure 1). The DTP3 CrossPoint inputs can be configured to accept DTP3, DTP, or XTP
signals and the DTP outputs can be configured to DTP, DTP3, XTP, or HDBaseT modes via Product Configuration Software (PCS).
The DTP3 CrossPoint switchers support 4K 60 Hz 4:4:4 signals, audio DSP Pro, and AEC and are compatible with all DTP and DTP3
transmitters and receivers. Additionally, the DTP3 CrossPoint SL models have the ShareLink Pro module for sharing content from
computers, tablets, and smartphones.
This guide provides basic instructions for an experienced technician to set up and operate the DTP3 CrossPoint matrix switchers. For
additional information and specifications, see the select DTP3 CrossPoint product page at www.extron.com.
NOTE:
The images in the following diagrams use the DTP3 CrossPoint 884 IPCP A unless otherwise noted.
Room A
Ceiling
Ceiling Mic Array
(8 Mic Channels)
Conference Table
Microphones
Room B
Microphones

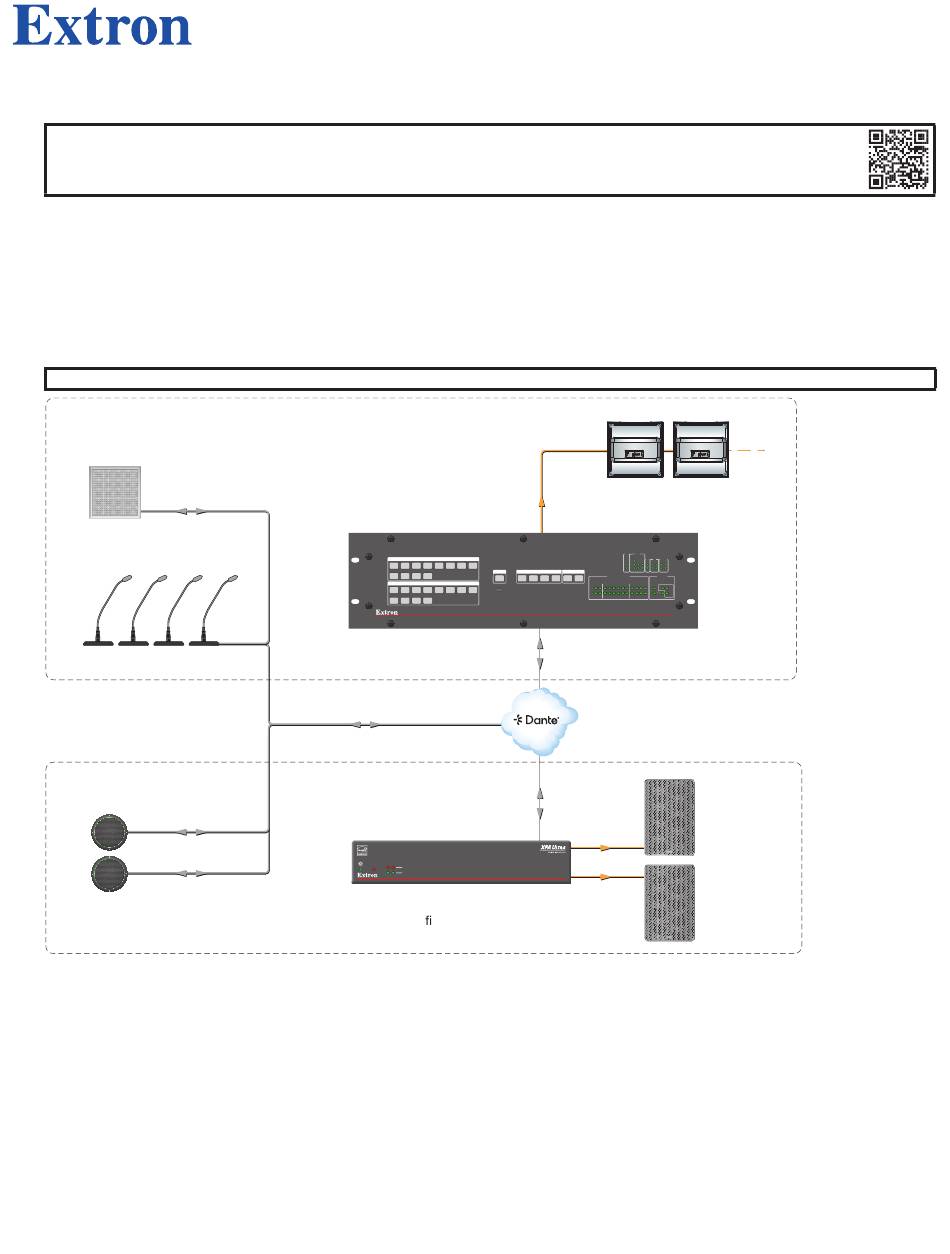

Figure 1.
Typical Application of the DTP3 CrossPoint 884 IPCP A
The switchers are available in four matrix sizes (the number of inputs, outputs, and configurable DTP3 I/Os) and three equipment
configurations (differentiated by their audio, control, and ShareLink Pro [662/642/622 models only] capabilities) for a total of 11 models:
Matrix sizes —
•
DTP3 CrossPoint 884 — 8x8x4 DTP3 matrix switcher
•
DTP3 Crosspoint 662 — 6x6x2 DTP3 matrix switcher
Equipment configurations —
•
DTP3 CrossPoint base models — Includes unamplfied audio outputs, with no IPCP Pro 360MQ xi control processor, or ShareLink Pro.
•
DTP3 CrossPoint IPCP A models — Includes a built-in Extron IPCP Pro control processor and a Class D power convertible amplifier.
•
DTP3 CrossPoint IPCP A SL models (662/642/622 models only) — Includes a built-in Extron IPCP Pro control processor, a Class D
power convertible amplifier, and a ShareLink Pro module.
Control and Configuration — The DTP3 CrossPoints can be controlled and configured via Product Configuration Software (PCS),
DSP Pro Configurator (advanced audio), Simple Instruction Set (SIS) commands, and the Internal Web Page.
for the complete user guide, installation instructions, and specifications before connecting the
1
2
3
9
10
11
1
2
3
9
10
11
Extron
DTP3 CrossPoint 884 IPCP A
Scaling Presentation Matrix
Ethernet
OVER
1
2
TEMP
LIMITER/PROTECT
SIGNAL
Extron
NetPA U 1002
Power Ampli er
Audio
INPUTS
4
5
6
7
8
LOGO
CONTROL
I/O
12
SELECT
ENTER
PRESET
VIEW
ESCAPE
VIDEO
AUDIO
OUTPUTS
INPUTS
CONFIG
4
5
6
7
8
DTP3
DTP
5
6
12
Ethernet
Ethernet
Audio
NetPA U 1002 SERIES
•
DTP3 CrossPoint 642 — 6x4x2 DTP3 matrix switcher
•
DTP3 CrossPoint 622 — 6x2x2 DTP3 matrix switcher
Extron
FF 220T
Flat Field Ceiling Speakers
PoE+
COM
PWR
RTS
IR/S
I/O
RELAYS
CTS
2
1
1
2
1
2
Tx
Rx
3
1
2
3
2
3
4
3
4
DTP REMOTE POWER
AMP OUT
LIMITER/
OUTPUT MODE
OUTPUTS
DTP3 I/O
PROTECT BRIDGED MONO
11
8
70V
12
8 /4
100V
1
2
3
4
5
6
7
8
9
10
STEREO
DTP3 CROSSPOINT SERIES
SCALING PRESENTATION MATRIX SWITCHER
Extron
SM 26
Surface Mount
Speakers
1
Advertisement
Related Manuals for Extron electronics CrossPoint DTP3 Series
Summary of Contents for Extron electronics CrossPoint DTP3 Series
- Page 1 DTP3 CrossPoint Series • Setup Guide IMPORTANT NOTE: Go to www.extron.com for the complete user guide, installation instructions, and specifications before connecting the product to the power source. This guide provides basic instructions for an experienced technician to install the DTP3 CrossPoint matrix switchers. The DTP3 CrossPoint matrix switchers distribute HDCP-compliant HDMI and Extron proprietary DTP video and audio signals to any combination of outputs simultaneously (see figure 1).
- Page 2 Disconnect Power and Mount the DTP3 CrossPoint Disconnect power from the switcher and turn off all devices that will be connected to it. Select a suitable mounting location, and choose an appropriate mounting option. Mounting information can be found in the DTP3 CrossPoint Series User Guide on www.extron.com. The DTP3 CrossPoint matrix switchers can be rack mounted or sit on a table with the provided rubber feet.
- Page 3 DTP3 CrossPoint Series • Setup Guide " (5 mm) MAX. (typ) Ring Sleeve Sleeve Jumper Ring Sleeve Sleeve Jumper Ring Sleeve Balanced Input Unbalanced Input Sleeve Jumper Balanced Input Unbalanced Input 3-pole Audio INPUT Wiring 6-pole Audio INPUT Wiring Figure 3. Balanced and Unbalanced Audio Input Wiring Diagram Line Out outputs 1 and 2 (see figure 2...
- Page 4 • Reset button — Initiates four levels of matrix switcher reset. For different reset levels, press and hold the recessed Reset button www.extron.com while the switcher is running or while powering up the switcher (see the DTP3 CrossPoint Series User Guide, at for more details).
