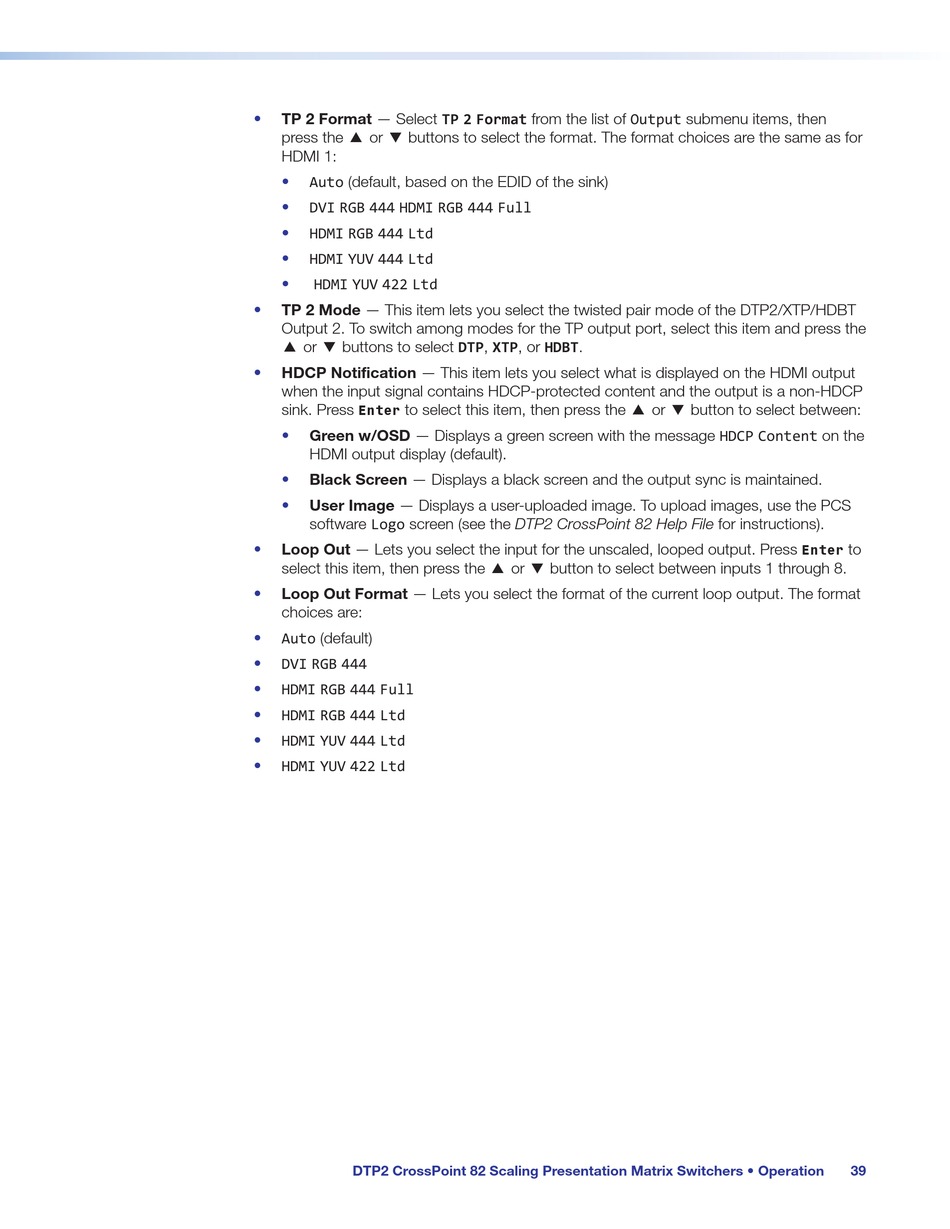

Extron electronics DTP2 CrossPoint 82 User Manual page 47

TP 2 Format — Select TP 2 Format from the list of Output submenu items, then
•

press the  or buttons to select the format. The format choices are the same as for
HDMI 1:
Auto (default, based on the EDID of the sink)
•
DVI RGB 444 HDMI RGB 444 Full
•
HDMI RGB 444 Ltd
•
HDMI YUV 444 Ltd
•
• HDMI YUV 422 Ltd
• TP 2 Mode — This item lets you select the twisted pair mode of the DTP2/XTP/HDBT
Output 2. To switch among modes for the TP output port, select this item and press the

or buttons to select DTP, XTP, or HDBT.

• HDCP Notification — This item lets you select what is displayed on the HDMI output
when the input signal contains HDCP-protected content and the output is a non-HDCP
sink. Press to select this item, then press the
Enter
Green w/OSD — Displays a green screen with the message HDCP Content on the
•
HDMI output display (default).
• Black Screen — Displays a black screen and the output sync is maintained.
User Image — Displays a user-uploaded image. To upload images, use the PCS
•
software Logo screen (see the DTP2 CrossPoint 82 Help File for instructions).
• Loop Out — Lets you select the input for the unscaled, looped output. Press
select this item, then press the
• Loop Out Format — Lets you select the format of the current loop output. The format
choices are:
Auto (default)
•
DVI RGB 444
•
HDMI RGB 444 Full
•
HDMI RGB 444 Ltd
•
HDMI YUV 444 Ltd
•
• HDMI YUV 422 Ltd
DTP2 CrossPoint 82 Scaling Presentation Matrix Switchers • Operation
or


or button to select between inputs 1 through 8.


button to select between:
to
Enter
