4.
Enter the password if required.
5.
Click Connect (see figure 37,
and the device configuration window opens.

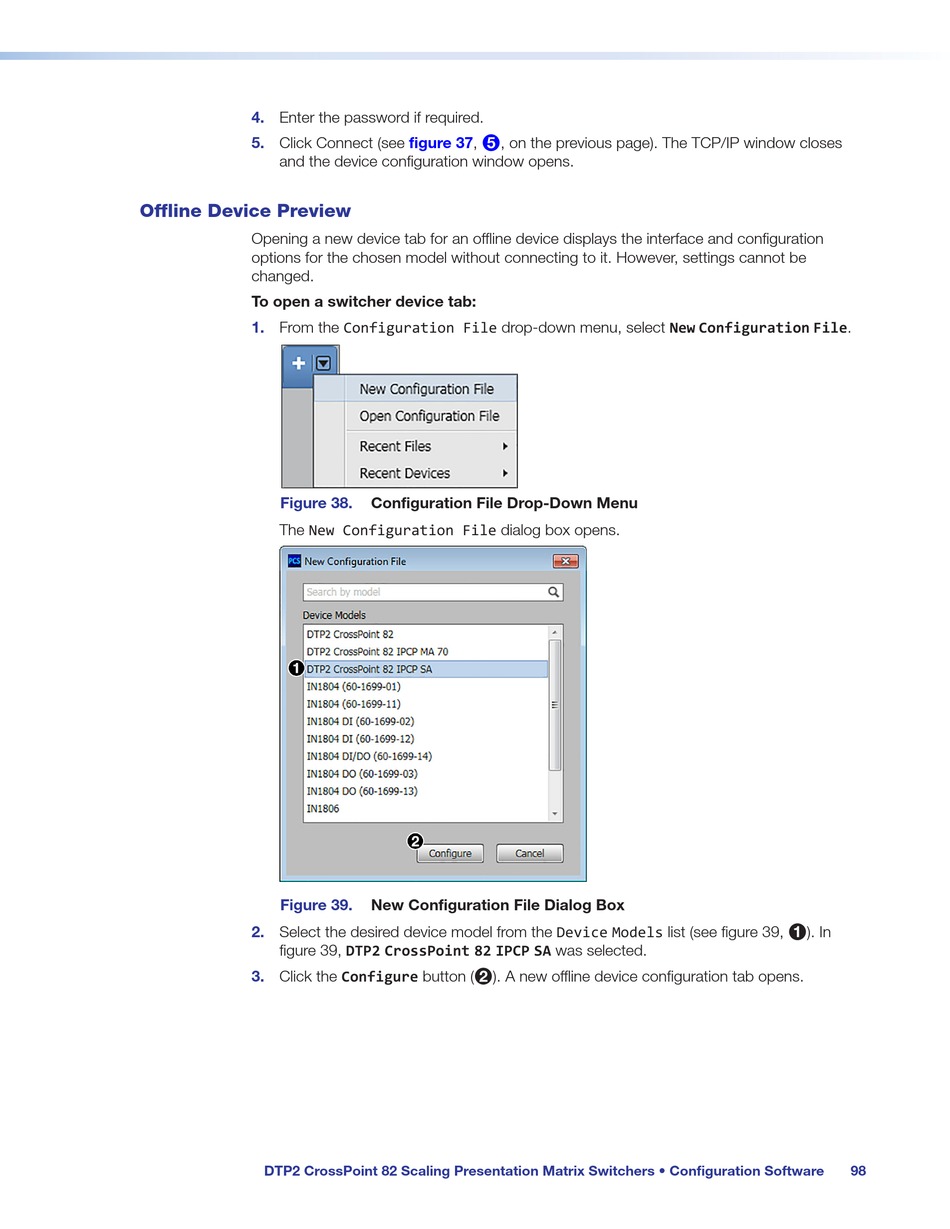

Offline Device Preview
Opening a new device tab for an offline device displays the interface and configuration
options for the chosen model without connecting to it. However, settings cannot be
changed.
To open a switcher device tab:
1.
From the Configuration File drop-down menu, select New Configuration File.
Figure 38.
The New Configuration File dialog box opens.
Figure 39.
2.
Select the desired device model from the Device Models list (see figure 39,
figure 39, DTP2 CrossPoint 82 IPCP SA was selected.
3.
Click the Configure button (
DTP2 CrossPoint 82 Scaling Presentation Matrix Switchers • Configuration Software
, on the previous page). The TCP/IP window closes
5
Configuration File Drop-Down Menu
New Configuration File Dialog Box
). A new offline device configuration tab opens.
2
). In
1
98
