A
B
Front panel configuration port
A
Input selection buttons
B
Logo button
C
Output selection buttons (1 and 2)
D
Status LED indicators
E

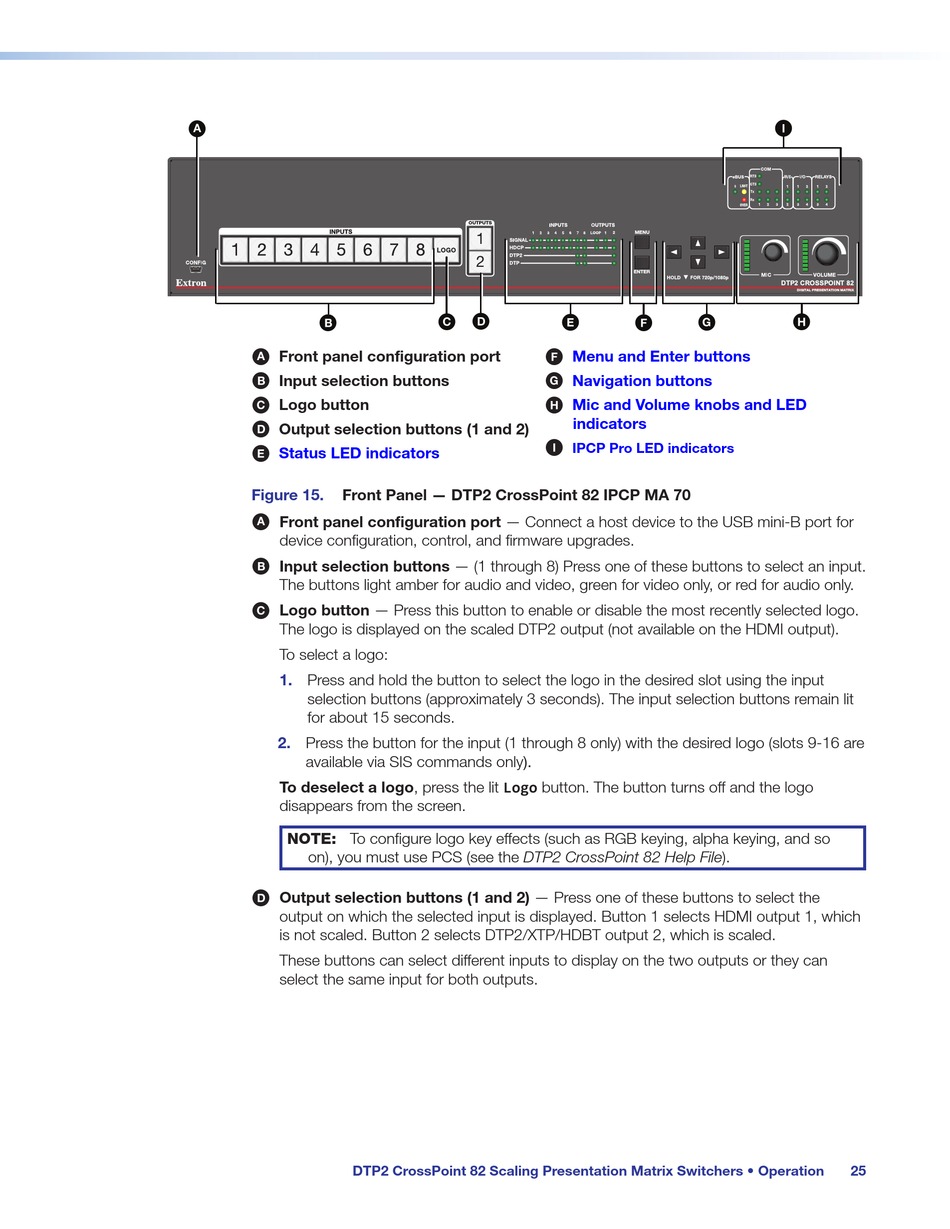

Figure 15.
Front Panel — DTP2 CrossPoint 82 IPCP MA 70
Front panel configuration port — Connect a host device to the USB mini-B port for
A
device configuration, control, and firmware upgrades.
Input selection buttons — (1 through 8) Press one of these buttons to select an input.
B
The buttons light amber for audio and video, green for video only, or red for audio only.
Logo button — Press this button to enable or disable the most recently selected logo.
C
The logo is displayed on the scaled DTP2 output (not available on the HDMI output).
To select a logo:
1.
Press and hold the button to select the logo in the desired slot using the input
selection buttons (approximately 3 seconds). The input selection buttons remain lit
for about 15 seconds.
2.
Press the button for the input (1 through 8 only) with the desired logo (slots 9-16 are
available via SIS commands only).
To deselect a logo, press the lit Logo button. The button turns off and the logo
disappears from the screen.
NOTE: To configure logo key effects (such as RGB keying, alpha keying, and so
on), you must use PCS (see the DTP2 CrossPoint 82 Help File).
Output selection buttons (1 and 2) — Press one of these buttons to select the
D
output on which the selected input is displayed. Button 1 selects HDMI output 1, which
is not scaled. Button 2 selects DTP2/XTP/HDBT output 2, which is scaled.
These buttons can select different inputs to display on the two outputs or they can
select the same input for both outputs.
DTP2 CrossPoint 82 Scaling Presentation Matrix Switchers • Operation
OUTPUTS
1
2
2
C
D
E
Menu and Enter buttons
F
Navigation buttons
G
Mic and Volume knobs and LED
H
indicators
I
IPCP Pro LED indicators
I
MENU
ENTER
DTP2 CROSSPOINT 82
DIGITAL PRESENTATION MATRIX
H
F
G
25
