Output Submenu

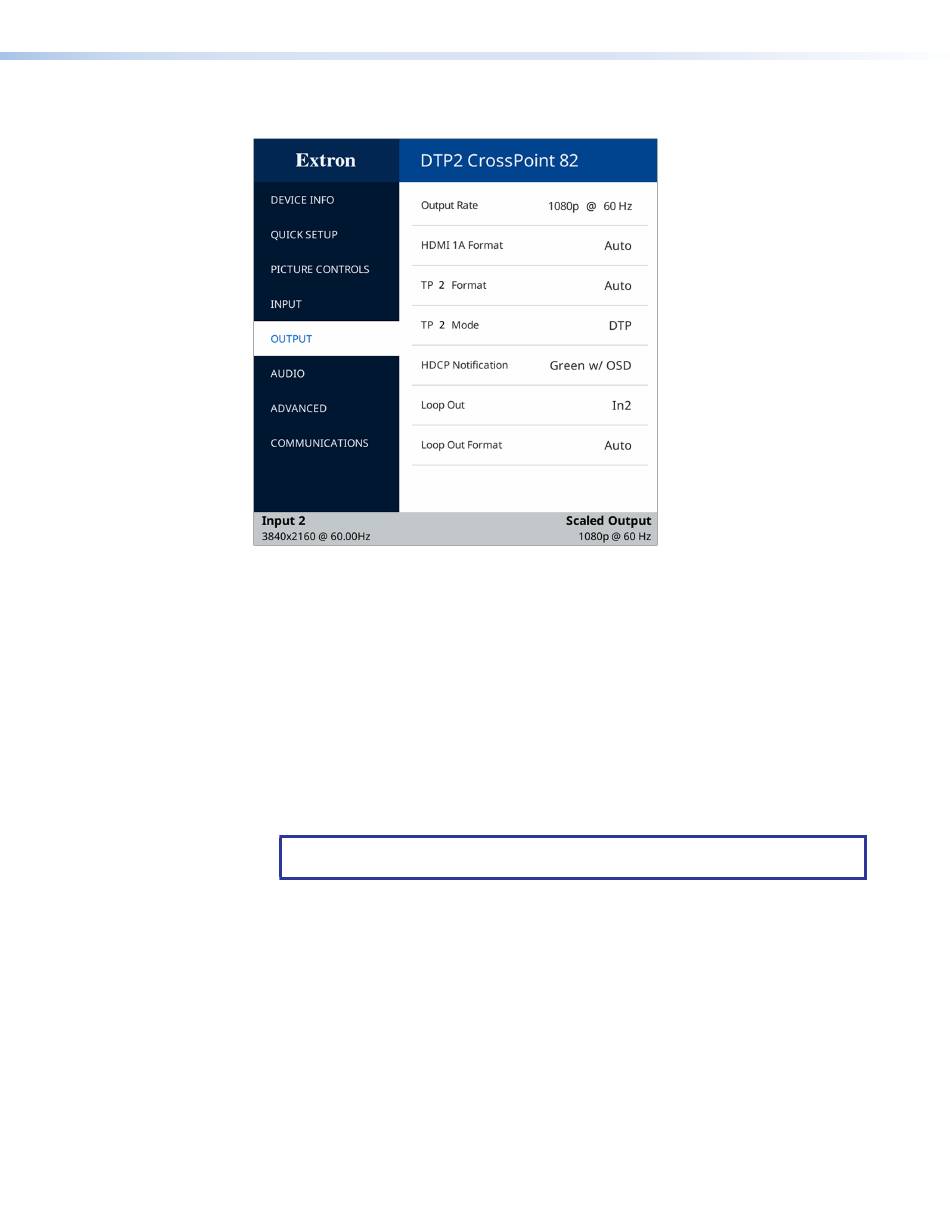

Figure 24.
The Output submenu enables you to configure the output resolution, refresh rate, HDMI
and TP format, TP mode, HDCP notification, and Loop Out format and connected input.
Output Rate — Select this item to specify the output resolution and refresh rate. The
•
DTP2 CrossPoint 82 switchers have a range of resolutions from which to choose (see
the Output Resolutions and Refresh Rates
settings). The available rates depend on the selected resolution.
Ten custom user-defined output rate slots are also available to be defined via SIS
commands or via the
When a resolution is applied to a user-defined EDID slot, its name is displayed in the
Output Resolution panel in the format c
be C1: 1280x780 @ 60 Hz (EXN) (the last three letters in parentheses represent the
name of the manufacturer of the device).
NOTE: The 10 custom, user-defined output rates default to 1080p @ 60 Hz when
no custom EDID is captured or uploaded.
Output Submenu
Capture EDID
DTP2 CrossPoint 82 Scaling Presentation Matrix Switchers • Operation
table on the next page for the available
item on the Input menu.
: x @ (
n nnnn nnnn nn XXX
). An example would
