Audio Submenu

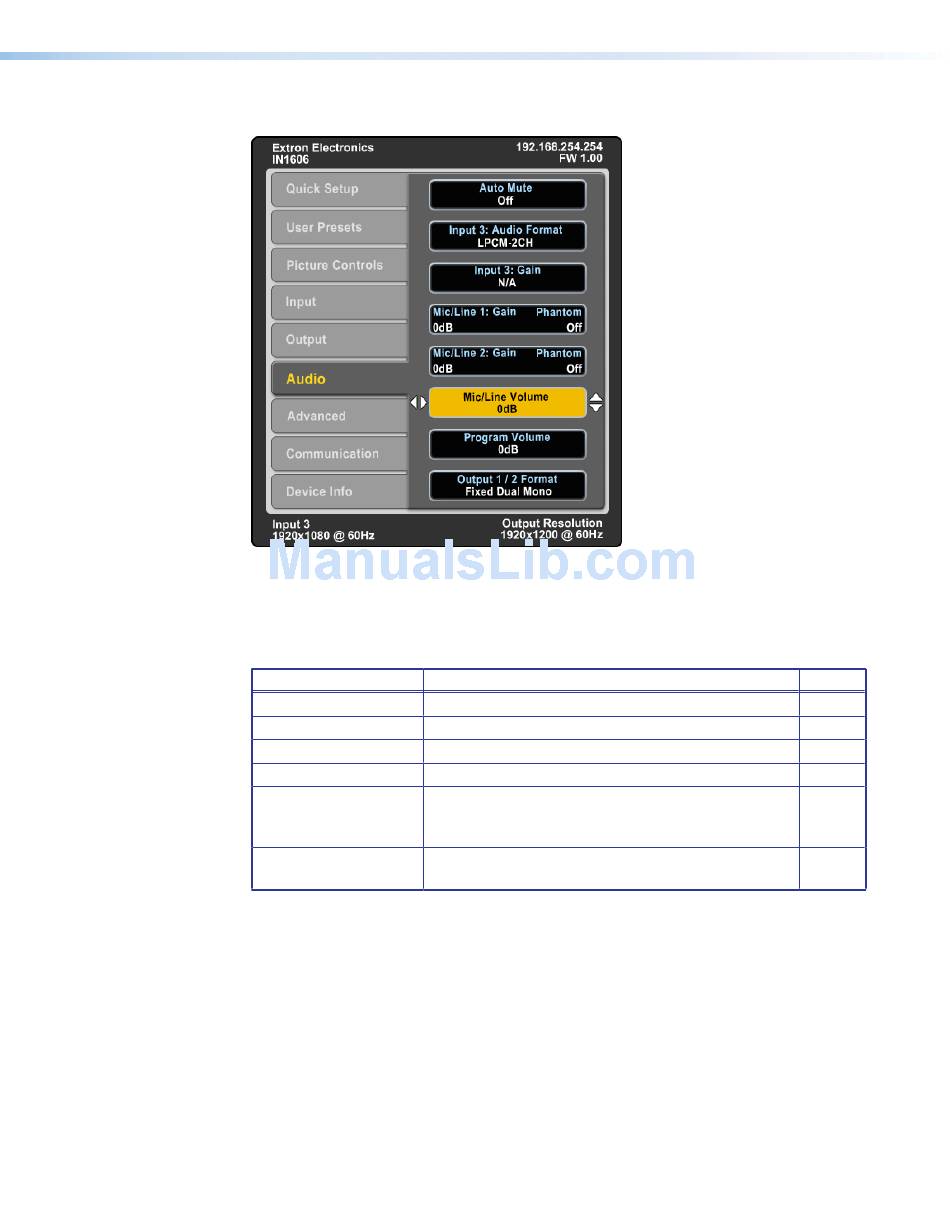

Figure 12.
The Audio submenu allows users to adjust audio settings.
Audio Mute — Press the Navigation buttons to globally mute or unmute audio.
Audio Format — Press the Navigation buttons to select the audio input format.
Audio Input Format
None
Analog
LPCM-2Ch
Multi-Ch
LPCM-2Ch Auto
Multi-Ch Auto
Gain — Press the Navigation buttons to set the gain (in dB) for the active analog input.
Mic/Line Gain and Phantom — Press the Navigation buttons to set the gain (in dB) and
enable or disable phantom power for Mic/Line 1 and 2.
Mic/Line Volume — Press the Navigation buttons to set the Mic/Line mix volume (in dB).
Program Volume — Press the Navigation buttons to set the Program mix volume (in dB).
Output 1/2 Format — Press the Navigation buttons to set the audio output format to
Stereo or L + R Program (Mono).
Audio Submenu
Details
Mutes audio for the selected input.
Sets the selected input to analog.
Sets the selected input to LPCM-2Ch audio.
Sets the selected input to Multi-Ch audio.
Sets the selected input to prioritize LPCM-2Ch audio.
Analog audio is passed when LPCM-2Ch is not
present.
Sets the selected input to prioritize Multi-Ch audio.
Analog audio is passed when Multi-Ch is not present.
IN1606 Scaling Presentation Switcher • Operation
Inputs
All
All
3-6
3-6
3-6
3-6
19
