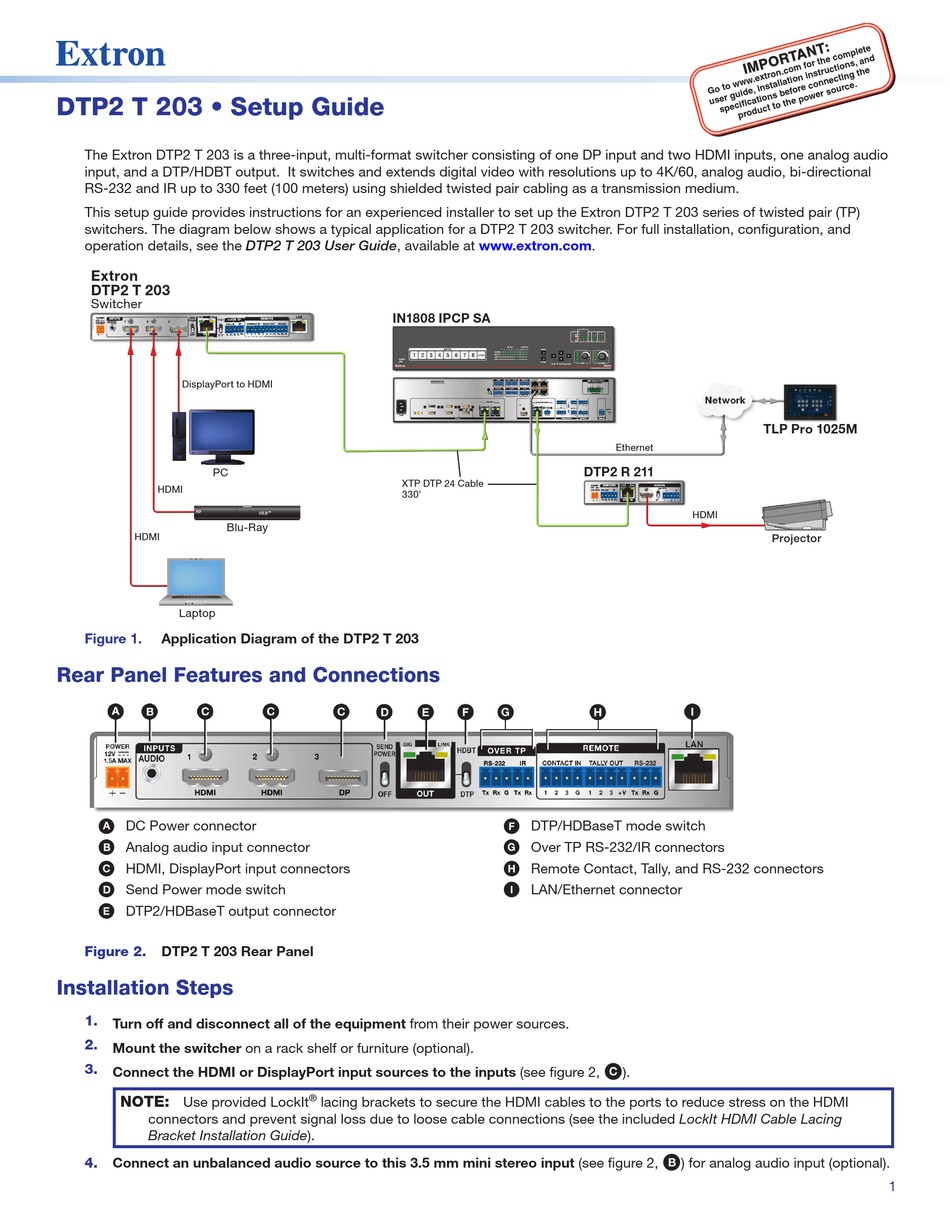

DTP2 T 203 • Setup Guide
The Extron DTP2 T 203 is a three-input, multi-format switcher consisting of one DP input and two HDMI inputs, one analog audio
input, and a DTP/HDBT output. It switches and extends digital video with resolutions up to 4K/60, analog audio, bi-directional
RS-232 and IR up to 330 feet (100 meters) using shielded twisted pair cabling as a transmission medium.
This setup guide provides instructions for an experienced installer to set up the Extron DTP2 T 203 series of twisted pair (TP)
switchers. The diagram below shows a typical application for a DTP2 T 203 switcher. For full installation, configuration, and
operation details, see the DTP2 T 203 User Guide, available at www.extron.com.
Extron
DTP2 T 203
Switcher
SIG LINK
POWER INPUTS SEND
HDBT OVER TP
12V POWER
AUDIO 1 2 3
1.5A MAX
RS-232
HDMI HDMI DP
OFF OUT DTP Tx Rx G
DisplayPort to HDMI
PC
HDMI
Blu-Ray
HDMI
Laptop
Figure 1. Application Diagram of the DTP2 T 203
Rear Panel Features and Connections
DC Power connector
A
B Analog audio input connector
HDMI, DisplayPort input connectors
C
Send Power mode switch
D
DTP2/HDBaseT output connector
E
Figure 2. DTP2 T 203 Rear Panel
Installation Steps
1.
Turn off and disconnect all of the equipment from their power sources.
2.
Mount the switcher on a rack shelf or furniture (optional).
3.
Connect the HDMI or DisplayPort input sources to the inputs (see figure 2,
NOTE:
Use provided LockIt
connectors and prevent signal loss due to loose cable connections (see the included LockIt HDMI Cable Lacing
Bracket Installation Guide).
4. Connect an unbalanced audio source to this 3.5 mm mini stereo input (see figure 2,
IN1808 IPCP SA
LAN
REMOTE REMOTE
REMOTE
IR CONTACT IN TALLY OUT RS-232
CONTACT IN CONTACT IN TALLY OUT TALLY OUT RS-232 RS-232
Tx Rx 1 2 3 G 1 2 3 +V Tx Rx G
1 1 2 2 3 3 G G 1 1 2 2 3 +V 3 +V Tx Tx Rx Rx G G
100-240V 50/60 Hz
--A MAX
XTP DTP 24 Cable
330'
®
lacing brackets to secure the HDMI cables to the ports to reduce stress on the HDMI
COM 1 COM 2 COM 3 DIGITAL I/O AV LAN 2 AV LAN 3
IN1808 IPCP SA
Tx Rx G RTS CTS Tx Rx G Tx Rx G 1 2 3 4 G
IR/SERIAL RELAYS eBUS
1 2 1 2 C 3 4 C +V -S +S G
R R R R R R R R R R R R R R R R R R R R R R R R
S G S G PWR OUT = 6W
LAN AV LAN 1
DTP2/XTP DTP2/XTP DTP2/XTP/HDBT DTP2/XTP/HDBT
2 2
1A 1A 1B 1B
RS-232 RESET
Tx Rx G
DTP2 R 211
POWER OVER DTP2
12V
0.8A MAX RS-232
Tx Rx
DTP/HDBaseT mode switch
F
G Over TP RS-232/IR connectors
Remote Contact, Tally, and RS-232 connectors
H
LAN/Ethernet connector
I
C
TLP Pro 1025M
Ethernet
SIG LINK
OUTPUTS
AUDIO
IR L R
G Tx Rx DTP2 IN
HDMI
Projector
).
B ) for analog audio input (optional).
