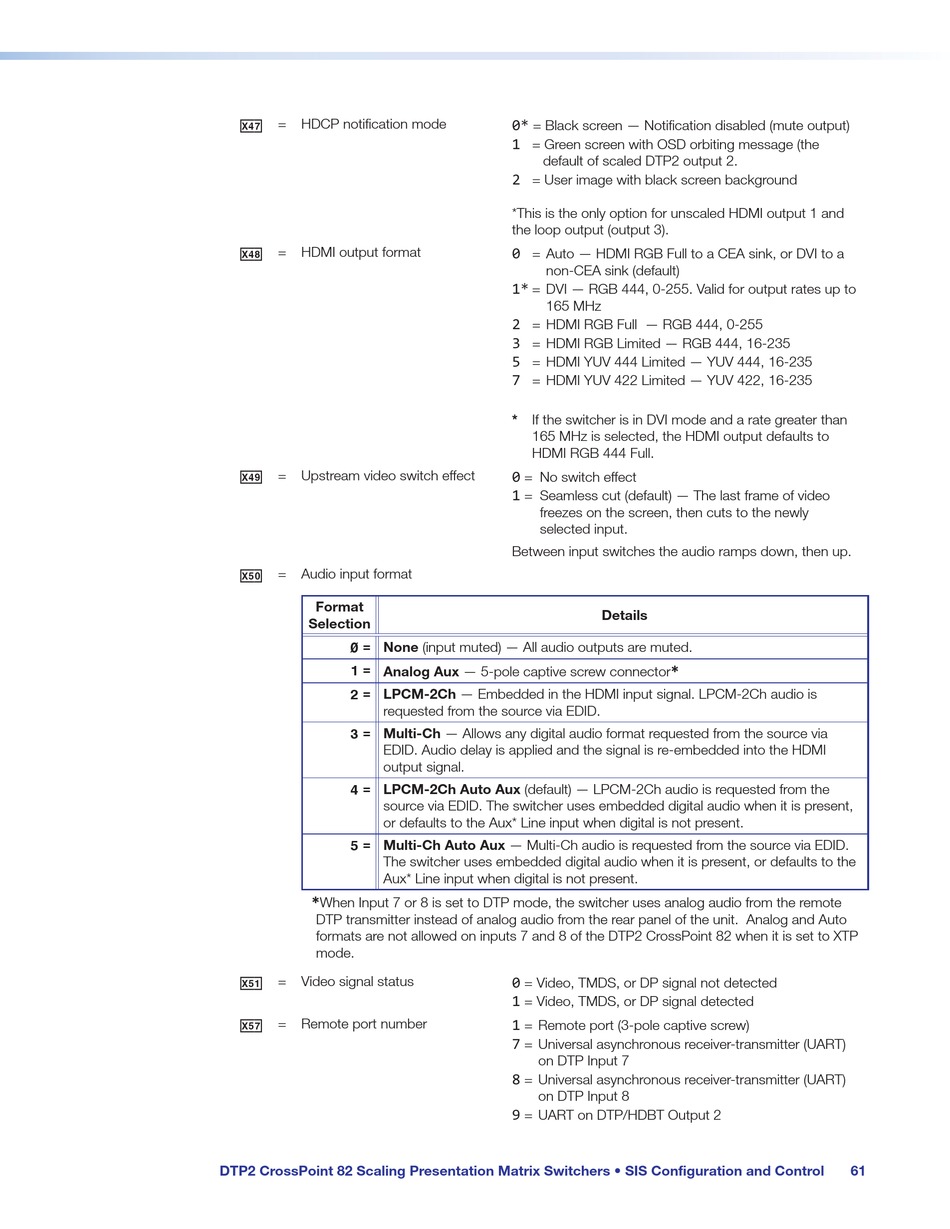

X4& = HDCP notification mode
X4* = HDMI output format
X4(
= Upstream video switch effect
X5) = Audio input format
Format
Selection
0 = None (input muted) — All audio outputs are muted.
1 = Analog Aux — 5-pole captive screw connector
2 = LPCM-2Ch — Embedded in the HDMI input signal. LPCM-2Ch audio is
requested from the source via EDID.
3 = Multi-Ch — Allows any digital audio format requested from the source via
EDID. Audio delay is applied and the signal is re-embedded into the HDMI
output signal.
4 = LPCM-2Ch Auto Aux (default) — LPCM-2Ch audio is requested from the
source via EDID. The switcher uses embedded digital audio when it is present,
or defaults to the Aux* Line input when digital is not present.
5 = Multi-Ch Auto Aux — Multi-Ch audio is requested from the source via EDID.
The switcher uses embedded digital audio when it is present, or defaults to the
Aux* Line input when digital is not present.
*
When Input 7 or 8 is set to DTP mode, the switcher uses analog audio from the remote
DTP transmitter instead of analog audio from the rear panel of the unit. Analog and Auto
formats are not allowed on inputs 7 and 8 of the DTP2 CrossPoint 82 when it is set to XTP
mode.
X5!
= Video signal status
X5& = Remote port number
DTP2 CrossPoint 82 Scaling Presentation Matrix Switchers • SIS Configuration and Control
0*
= Black screen — Notification disabled (mute output)
1
= Green screen with OSD orbiting message (the
default of scaled DTP2 output 2.
2
= User image with black screen background
*This is the only option for unscaled HDMI output 1 and
the loop output (output 3).
0
= Auto — HDMI RGB Full to a CEA sink, or DVI to a
non-CEA sink (default)
1*
= DVI — RGB 444, 0-255. Valid for output rates up to
165 MHz
2
= HDMI RGB Full — RGB 444, 0-255
3
= HDMI RGB Limited — RGB 444, 16-235
5
= HDMI YUV 444 Limited — YUV 444, 16-235
7
= HDMI YUV 422 Limited — YUV 422, 16-235
* If the switcher is in DVI mode and a rate greater than
165 MHz is selected, the HDMI output defaults to
HDMI RGB 444 Full.
0
= No switch effect
1
= Seamless cut (default) — The last frame of video
freezes on the screen, then cuts to the newly
selected input.
Between input switches the audio ramps down, then up.
Details
*
0
= Video, TMDS, or DP signal not detected
1
= Video, TMDS, or DP signal detected
1
= Remote port (3-pole captive screw)
7
= Universal asynchronous receiver-transmitter (UART)
on DTP Input 7
8
= Universal asynchronous receiver-transmitter (UART)
on DTP Input 8
9
= UART on DTP/HDBT Output 2
