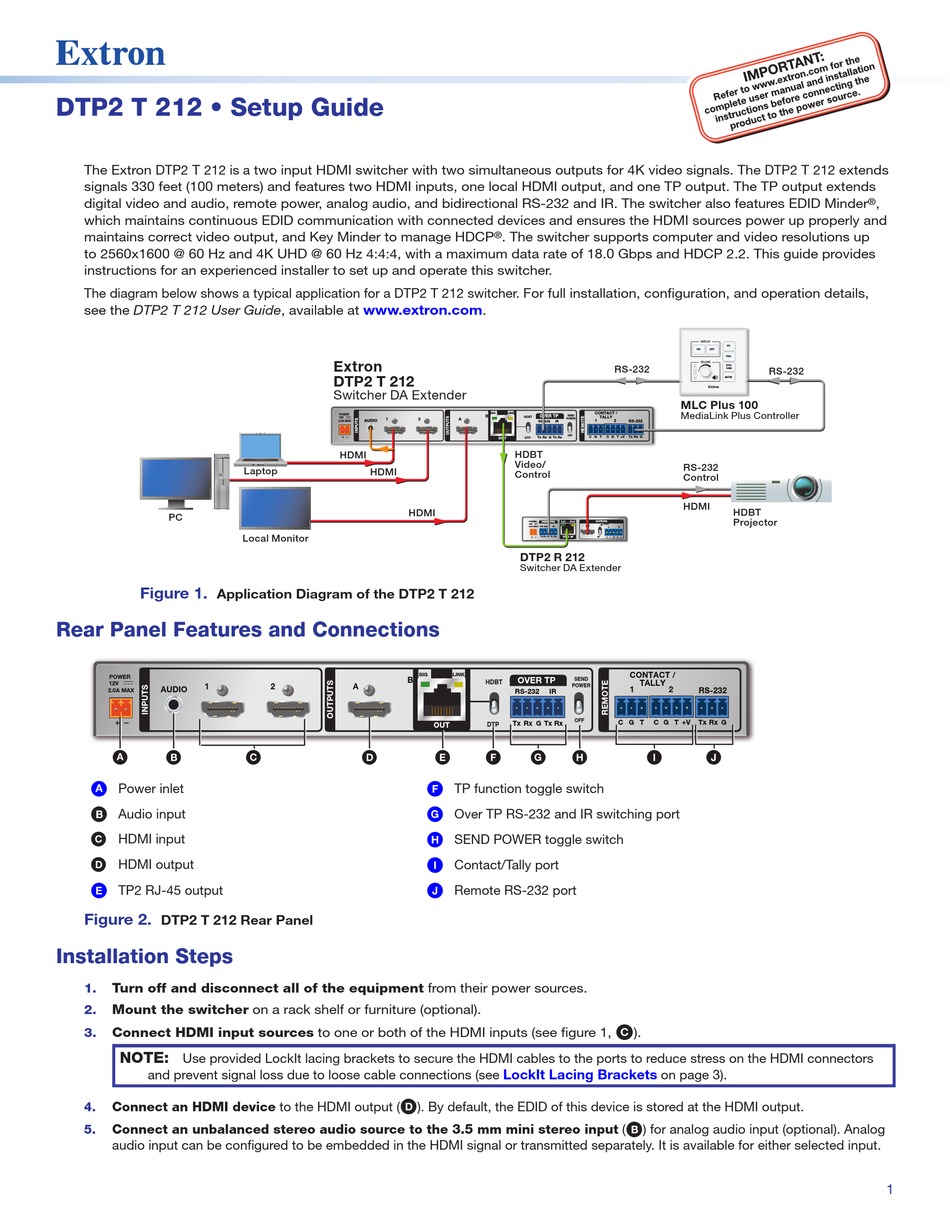

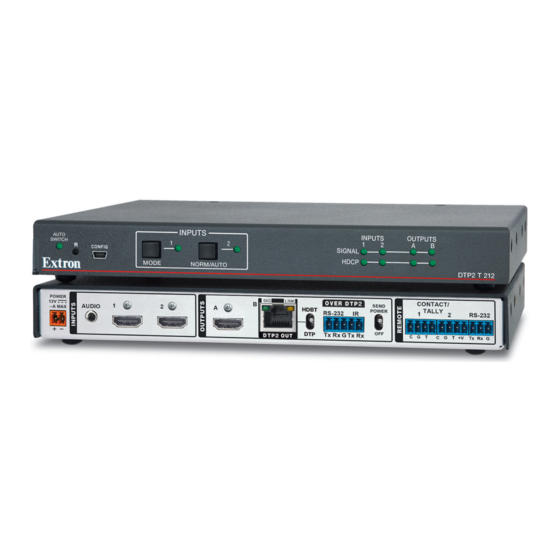

DTP2 T 212 • Setup Guide
The Extron DTP2 T 212 is a two input HDMI switcher with two simultaneous outputs for 4K video signals. The DTP2 T 212 extends
signals 330 feet (100 meters) and features two HDMI inputs, one local HDMI output, and one TP output. The TP output extends
digital video and audio, remote power, analog audio, and bidirectional RS-232 and IR. The switcher also features EDID Minder
which maintains continuous EDID communication with connected devices and ensures the HDMI sources power up properly and
maintains correct video output, and Key Minder to manage HDCP
to 2560x1600 @ 60 Hz and 4K UHD @ 60 Hz 4:4:4, with a maximum data rate of 18.0 Gbps and HDCP 2.2. This guide provides
instructions for an experienced installer to set up and operate this switcher.
The diagram below shows a typical application for a DTP2 T 212 switcher. For full installation, configuration, and operation details,
see the DTP2 T 212 User Guide, available at
WiFi 1 2 3 4
PC
Figure 1.
Application Diagram of the DTP2 T 212

Rear Panel Features and Connections

POWER
12V
1
AUDIO
2.0A MAX
A A A B B B
A Power inlet
B Audio input
HDMI input
C
HDMI output
D
E TP2 RJ-45 output
Figure 2.
DTP2 T 212 Rear Panel

Installation Steps

Turn off and disconnect all of the equipment from their power sources.
1.
Mount the switcher on a rack shelf or furniture (optional).
2.
Connect HDMI input sources to one or both of the HDMI inputs (see figure 1,
3.
NOTE:
Use provided LockIt lacing brackets to secure the HDMI cables to the ports to reduce stress on the HDMI connectors
and prevent signal loss due to loose cable connections (see
Connect an HDMI device to the HDMI output (
4.
5. Connect an unbalanced stereo audio source to the 3.5 mm mini stereo input (
audio input can be configured to be embedded in the HDMI signal or transmitted separately. It is available for either selected input.
