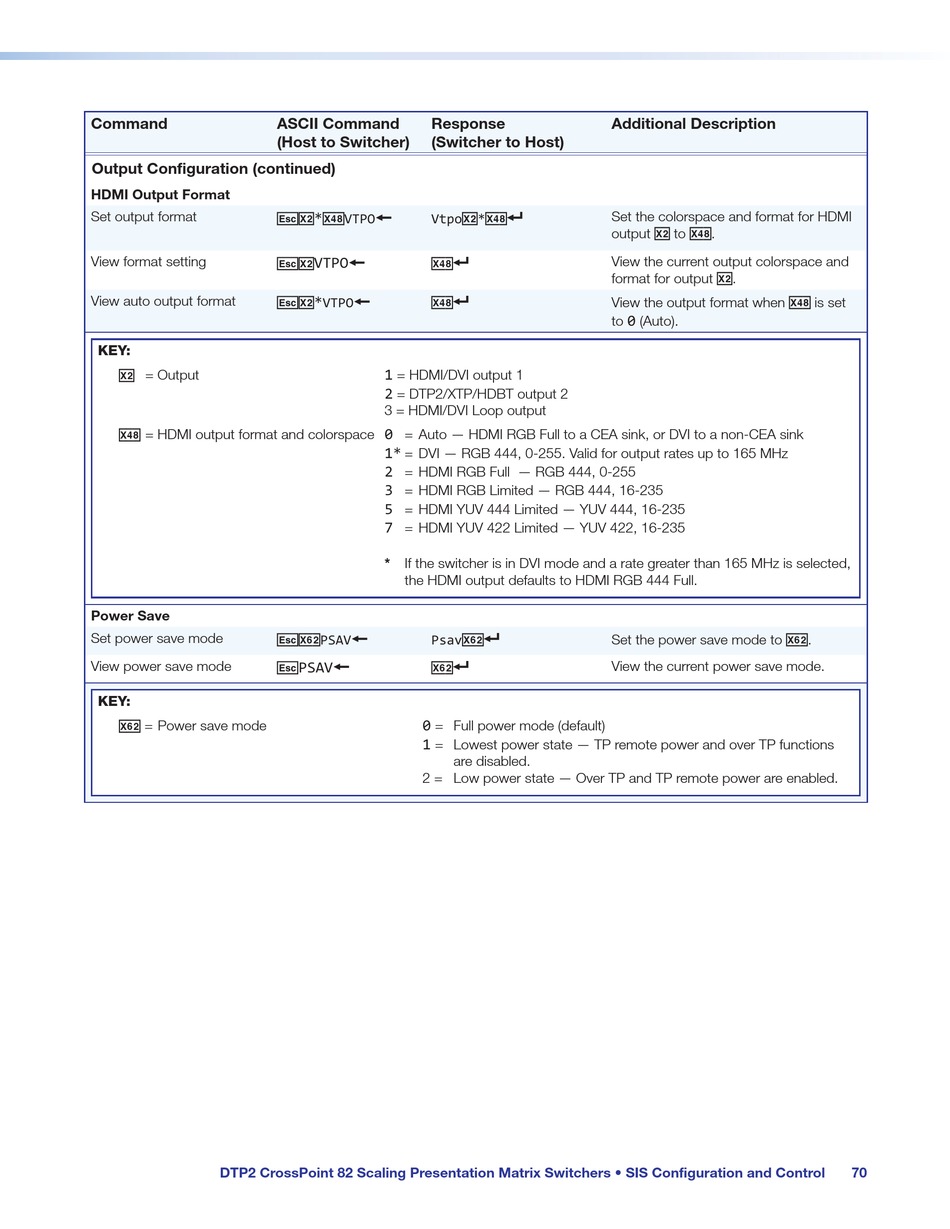

Command
Output Configuration (continued)
HDMI Output Format
Set output format
View format setting
View auto output format
KEY:
X@
= Output
X4*
= HDMI output format and colorspace
Power Save
Set power save mode
View power save mode
KEY:
X6@
= Power save mode
DTP2 CrossPoint 82 Scaling Presentation Matrix Switchers • SIS Configuration and Control
ASCII Command
Response
(Host to Switcher)
(Switcher to Host)
EX@ * X4*
}
VTPO
Vtpo
EX@ VTPO }
X4*]
EX@ *
}
X4*]
VTPO
1
= HDMI/DVI output 1
2
= DTP2/XTP/HDBT output 2
3 = HDMI/DVI Loop output
0
= Auto — HDMI RGB Full to a CEA sink, or DVI to a non-CEA sink
1*
= DVI — RGB 444, 0-255. Valid for output rates up to 165 MHz
2
= HDMI RGB Full — RGB 444, 0-255
3
= HDMI RGB Limited — RGB 444, 16-235
5
= HDMI YUV 444 Limited — YUV 444, 16-235
7
= HDMI YUV 422 Limited — YUV 422, 16-235
* If the switcher is in DVI mode and a rate greater than 165 MHz is selected,
the HDMI output defaults to HDMI RGB 444 Full.
EX6@
}
PSAV
Psav
E PSAV }
X6@]
0
= Full power mode (default)
1
= Lowest power state — TP remote power and over TP functions
are disabled.
2 = Low power state — Over TP and TP remote power are enabled.
Additional Description
X@
X4*]
Set the colorspace and format for HDMI
*
output
View the current output colorspace and
format for output
View the output format when
0
to
(Auto).
X6@]
Set the power save mode to
View the current power save mode.
X@
X4*
to
.
X@
.
X4*
is set
X6@
.
