Roles And Permissions Panel - Extron electronics DTP2 CrossPoint 82 User Manual

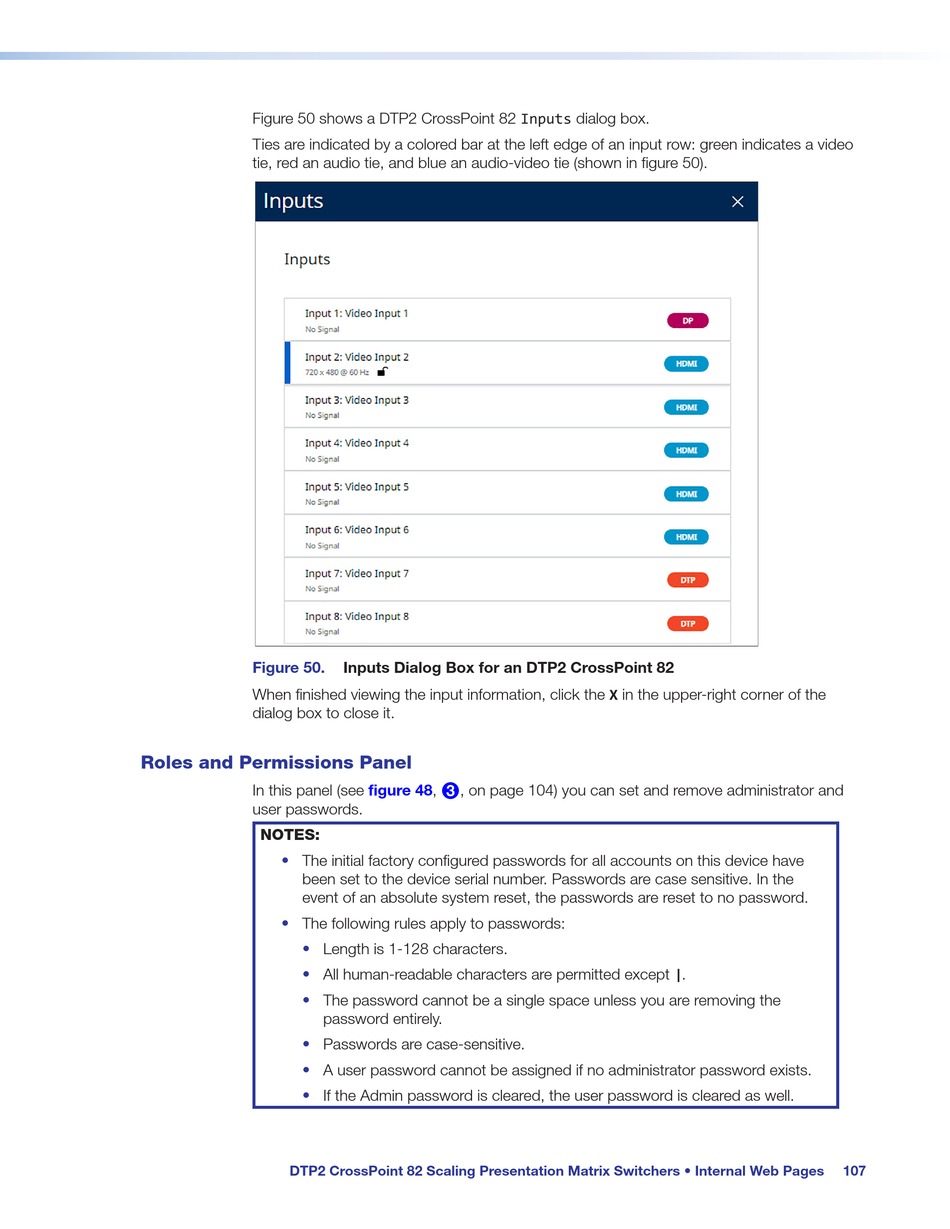

Figure 50 shows a DTP2 CrossPoint 82 Inputs dialog box.
Ties are indicated by a colored bar at the left edge of an input row: green indicates a video
tie, red an audio tie, and blue an audio-video tie (shown in figure 50).
Figure 50.
When finished viewing the input information, click the X in the upper-right corner of the
dialog box to close it.

Roles and Permissions Panel

In this panel (see figure 48,
user passwords.
NOTES:
• The initial factory configured passwords for all accounts on this device have
been set to the device serial number. Passwords are case sensitive. In the
event of an absolute system reset, the passwords are reset to no password.
• The following rules apply to passwords:
•
•
•
•
•
•
DTP2 CrossPoint 82 Scaling Presentation Matrix Switchers • Internal Web Pages
Inputs Dialog Box for an DTP2 CrossPoint 82
, on page 104) you can set and remove administrator and
3
Length is 1-128 characters.
All human-readable characters are permitted except | .
The password cannot be a single space unless you are removing the
password entirely.
Passwords are case-sensitive.
A user password cannot be assigned if no administrator password exists.
If the Admin password is cleared, the user password is cleared as well.
107
