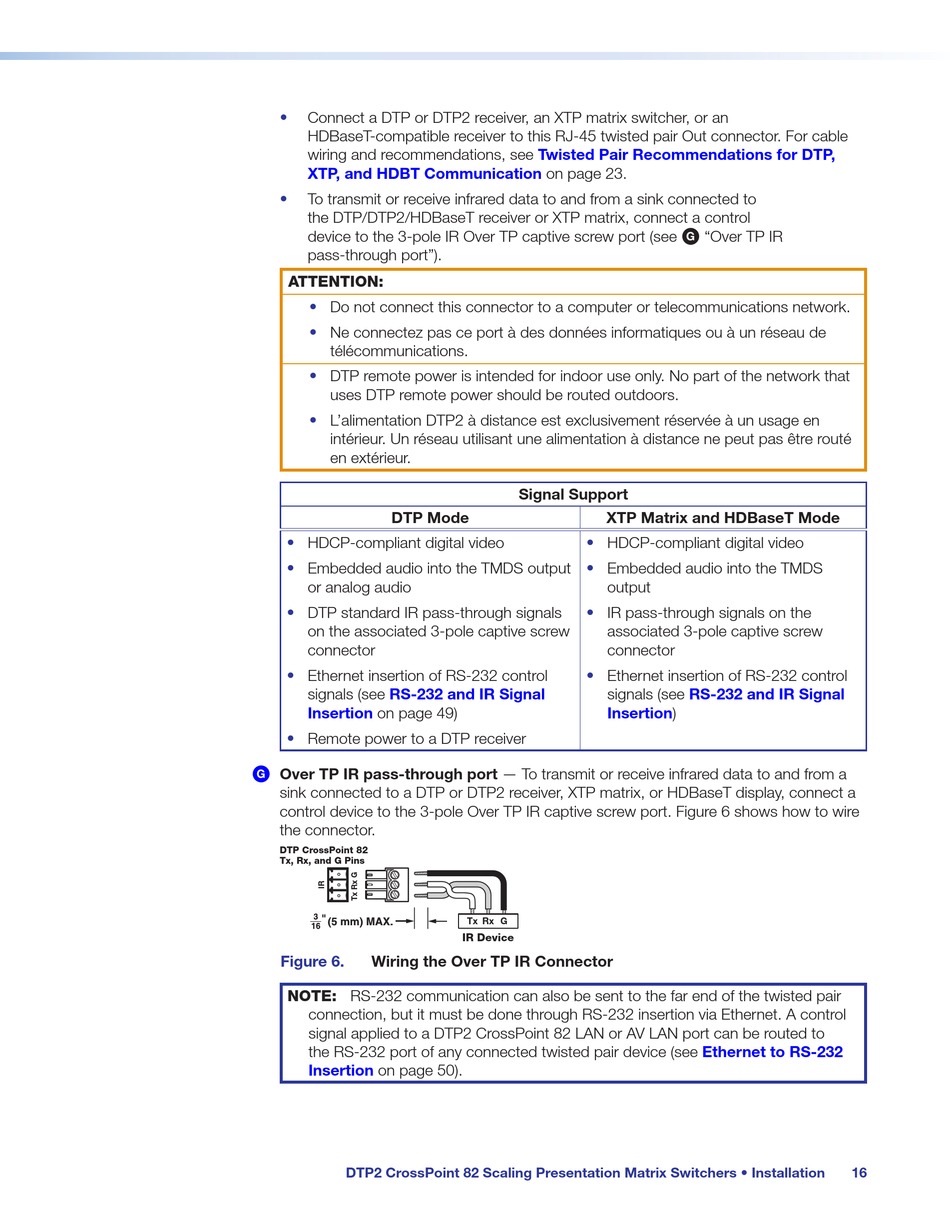

Connect a DTP or DTP2 receiver, an XTP matrix switcher, or an
•
HDBaseT-compatible receiver to this RJ-45 twisted pair Out connector. For cable
wiring and recommendations, see
XTP, and HDBT Communication
•
To transmit or receive infrared data to and from a sink connected to
the DTP/DTP2/HDBaseT receiver or XTP matrix, connect a control
device to the 3-pole IR Over TP captive screw port (see
pass-through port").
ATTENTION:
•
Do not connect this connector to a computer or telecommunications network.
•
Ne connectez pas ce port à des données informatiques ou à un réseau de
télécommunications.
•
DTP remote power is intended for indoor use only. No part of the network that
uses DTP remote power should be routed outdoors.
•
L'alimentation DTP2 à distance est exclusivement réservée à un usage en
intérieur. Un réseau utilisant une alimentation à distance ne peut pas être routé
en extérieur.
DTP Mode
•
HDCP-compliant digital video
•
Embedded audio into the TMDS output
or analog audio
•
DTP standard IR pass-through signals
on the associated 3-pole captive screw
connector
•
Ethernet insertion of RS-232 control
signals (see
RS-232 and IR Signal
Insertion
on page 49)
•
Remote power to a DTP receiver
Over TP IR pass-through port — To transmit or receive infrared data to and from a
G
sink connected to a DTP or DTP2 receiver, XTP matrix, or HDBaseT display, connect a
control device to the 3-pole Over TP IR captive screw port. Figure 6 shows how to wire
the connector.
DTP CrossPoint 82
Tx, Rx, and G Pins
Figure 6.
Wiring the Over TP IR Connector
NOTE: RS-232 communication can also be sent to the far end of the twisted pair
connection, but it must be done through RS-232 insertion via Ethernet. A control
signal applied to a DTP2 CrossPoint 82 LAN or AV LAN port can be routed to
the RS-232 port of any connected twisted pair device (see
Insertion
on page 50).
DTP2 CrossPoint 82 Scaling Presentation Matrix Switchers • Installation
Twisted Pair Recommendations for DTP,
on page 23.
Signal Support
XTP Matrix and HDBaseT Mode
•
HDCP-compliant digital video
•
Embedded audio into the TMDS
output
•
IR pass-through signals on the
associated 3-pole captive screw
connector
•
Ethernet insertion of RS-232 control
signals (see
Insertion)
Tx
Rx
G
IR Device
"Over TP IR
G
RS-232 and IR Signal
Ethernet to RS-232
16
