Configuring Module-Specific Settings

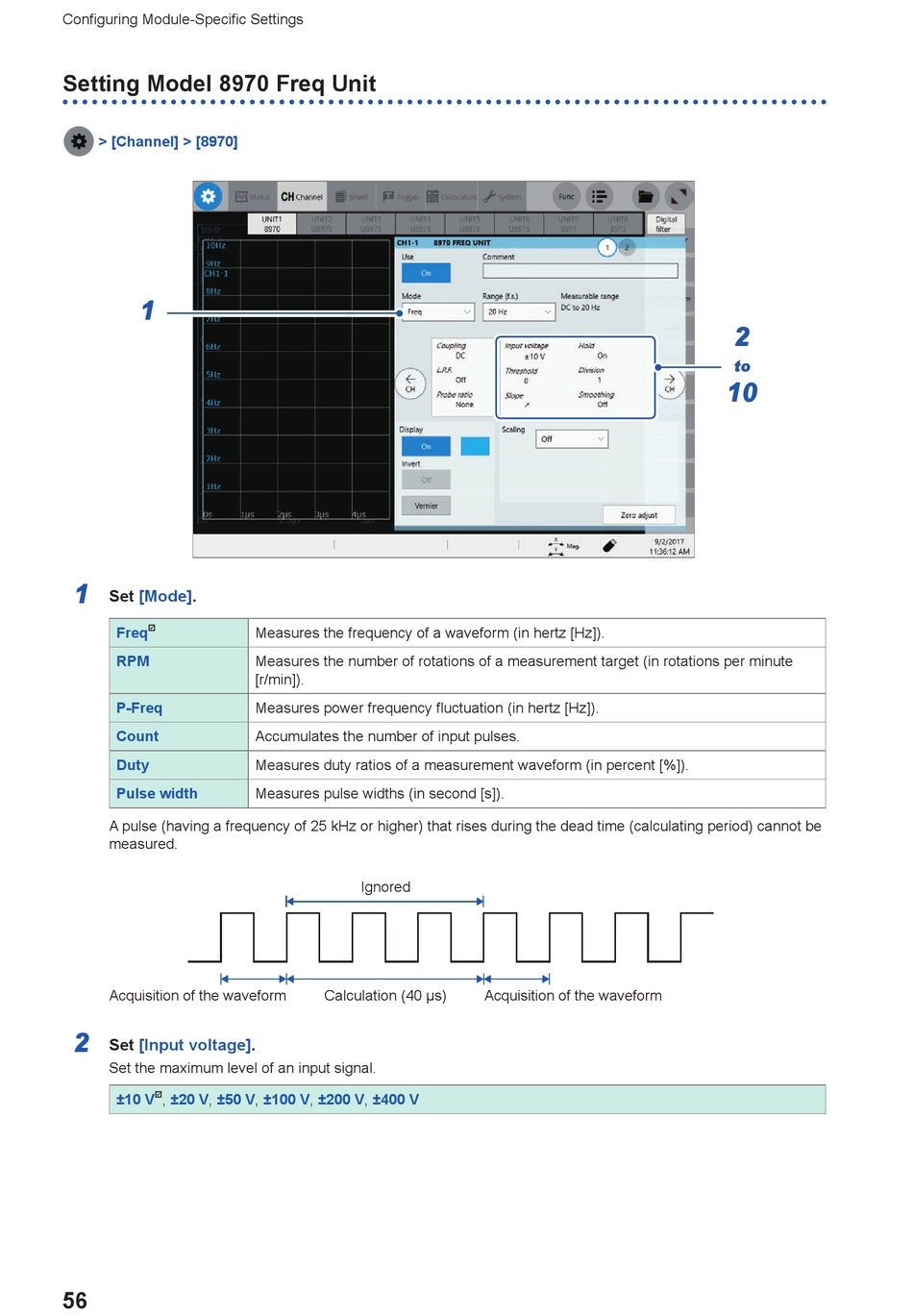

Setting Model 8970 Freq Unit
> [Channel] > [8970]
1
1
Set [Mode].
Freq

RPM
P-Freq
Count
Duty
Pulse width
A pulse (having a frequency of 25 kHz or higher) that rises during the dead time (calculating period) cannot be
measured.
Acquisition of the waveform
2
Set [Input voltage].
Set the maximum level of an input signal.
±10 V ±20 V, ±50
 ,
56
Measures the frequency of a waveform (in hertz [Hz]).
Measures the number of rotations of a measurement target (in rotations per minute
[r/min]).
Measures power frequency fluctuation (in hertz [Hz]).
Accumulates the number of input pulses.
Measures duty ratios of a measurement waveform (in percent [%]).
Measures pulse widths (in second [s]).
Ignored
Calculation (40 μs)
V, ±100 V, ±200 V, ±400 V
Acquisition of the waveform
2
to
10
