Trigger Setting Procedure

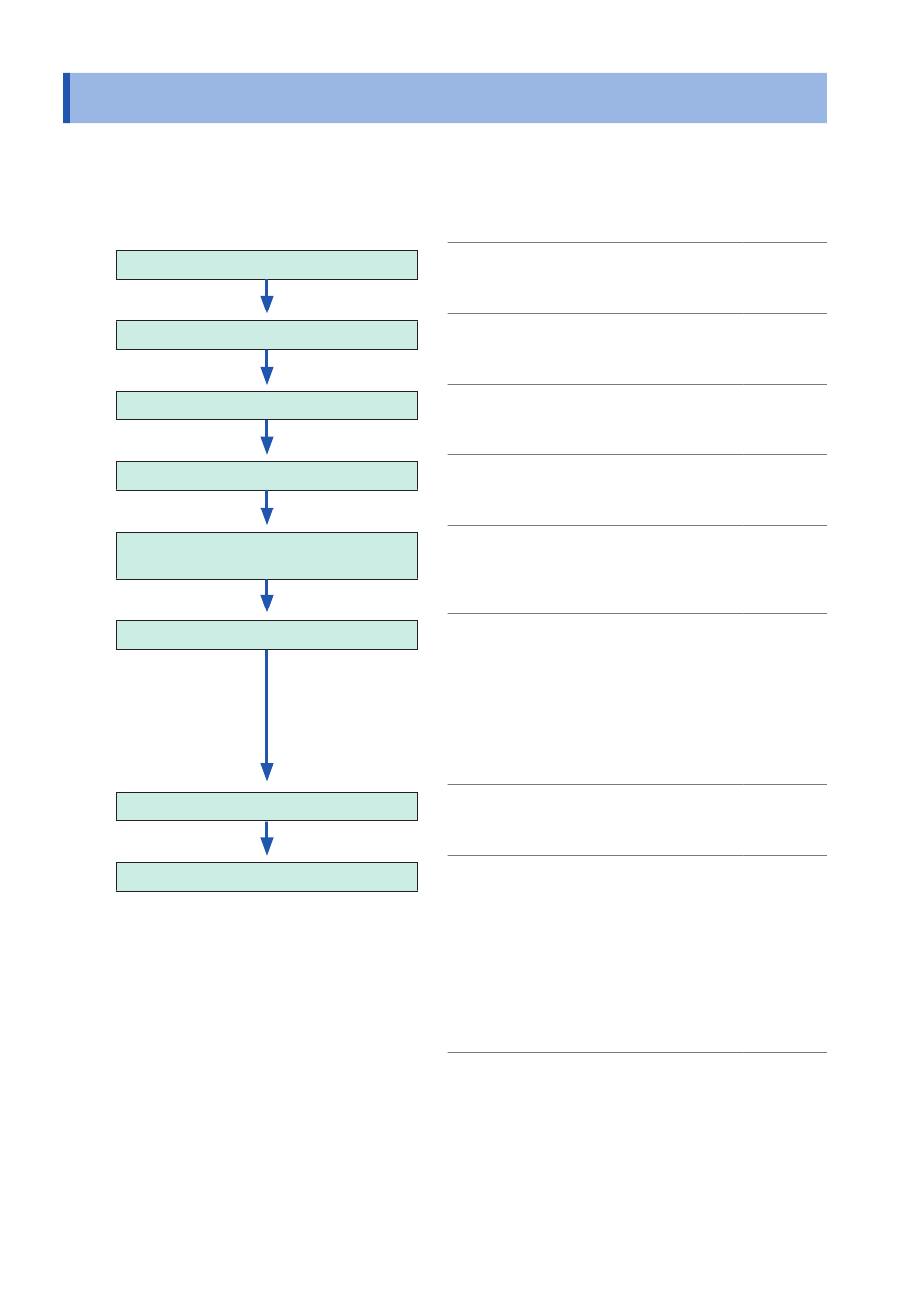

5.1 Trigger Setting Procedure
• The instrument is triggered based on the trigger conditions (logical AND or logical OR) among
trigger sources except for the forcible trigger. (p. 91)
• When triggered, the instrument outputs the TRIG OUT signal from the external control terminal.
(p. 183)
Setting the trigger function
Setting the trigger timing
Setting the pre-trigger
Setting the post-trigger
Setting the trigger logical conditions (AND
or OR) among trigger sources
Setting trigger types
Setting the measurement mode
Starting a measurement
82
Enable the trigger function.
Set the start/stop timing of recordings
controlled by triggers.
Set a recording length preceding the start
trigger point.
Set a recording length following the stop
trigger point.
Set the trigger logical conditions (AND or
OR) among the analog, logic, external, and
interval triggers to trigger the instrument.
Set the trigger-source-specified trigger conditions.
• Analog trigger
• Logic trigger
• Interval trigger
• External trigger
• Forcible trigger
Set whether the instrument waits for a
trigger repeatedly after a measurement has
been stopped or not.
Press the START key to start a measurement. (The key
lights up in green.)
When the trigger conditions are satisfied, the instrument
starts to acquire data.
To stop the measurement, press the
Press the key once: Stops the measurement once
the instrument has acquired the
specified recording length of data.
Press the key twice: Stops the recording immediately.
(p. 83)
(p. 84)
(p. 86)
(p. 86)
(p. 91)
(p. 93)
(p. 102)
(p. 104)
(p. 106)
(p. 106)
(p. 6)
STOP
key.
