Searching For Differences from the Fundamental Wave (Memory HiConcierge)

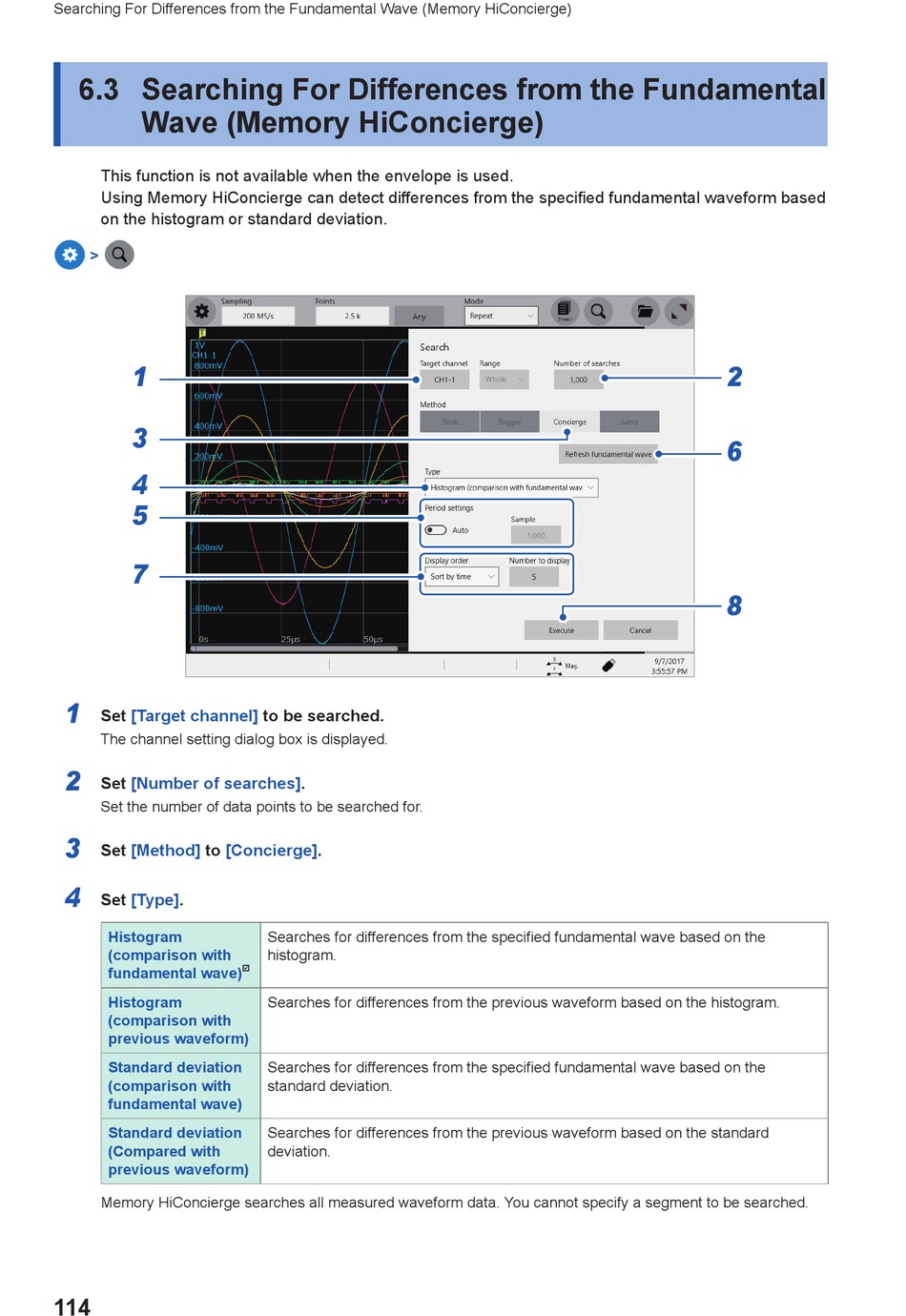

6.3 Searching For Differences from the Fundamental
Wave (Memory HiConcierge)
This function is not available when the envelope is used.
Using Memory HiConcierge can detect differences from the specified fundamental waveform based
on the histogram or standard deviation.
>
1
3
4
5
7
1
Set [Target channel]
The channel setting dialog box is displayed.
2
Set [Number of searches].
Set the number of data points to be searched for.
3
Set [Method] to [Concierge].
4
Set [Type].
Histogram
(comparison with
fundamental wave)
Histogram
(comparison with
previous waveform)
Standard deviation
(comparison with
fundamental wave)
Standard deviation
(Compared with
previous waveform)
Memory HiConcierge searches all measured waveform data. You cannot specify a segment to be searched.
114
to be searched.
Searches for differences from the specified fundamental wave based on the
histogram.

Searches for differences from the previous waveform based on the histogram.
Searches for differences from the specified fundamental wave based on the
standard deviation.
Searches for differences from the previous waveform based on the standard
deviation.
