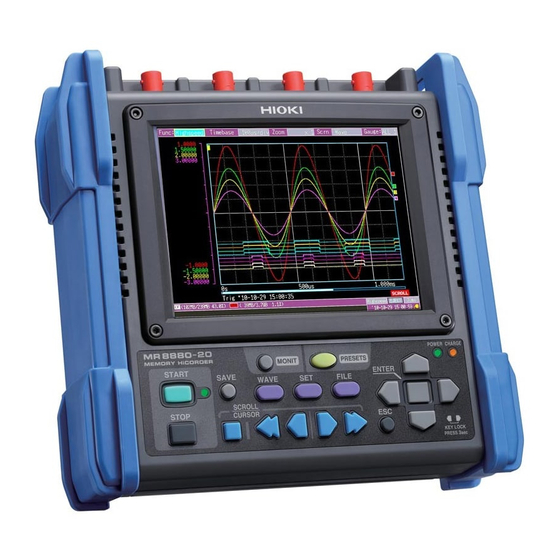

MEMORY HiCORDER MR8880
• Maximum 600V AC/DC input - no need for a differential probe
• 4 completely isolated channels let you simultaneously record
• Operating temperature range:
• Built to withstand mechanical shocks and vibrations
Simply select what you'd like to measure and follow the on-
screen instructions to select the appropriate settings. The re-
corder can be easily configured to measure voltage drops and
www.
.com
power outages.
CAT III 600 V
insulation performance
data on a 3-phase power line plus have one extra channel
Tough against harsh environments
(ships standard with side protectors)
Make settings easily with
information@itm.com
-10°C to 50°C
PRESETS
Advertisement
Table of Contents
Related Manuals for Hioki MEMORY HiCORDER MR8880
Summary of Contents for Hioki MEMORY HiCORDER MR8880
- Page 1 MEMORY HiCORDER MR8880 Capture high- to low-voltage signals in a single device Rugged, Professional and Ready for the Field CAT III 600 V insulation performance • Maximum 600V AC/DC input - no need for a differential probe • 4 completely isolated channels let you simultaneously record...
- Page 2 Safe & Reliable Measurement The MR8880 offers safe, reliable operation featuring CAT III 600 V isolated inputs in a compact yet durable design that excels at taking measurements in harsh environments. Direct input and measurement of 3-phase power lines CAT III 600 V isolated inputs (4 channels) n 4 analog + 8 logic channels n Directly input 600 V AC/DC (CAT III) and 300 V AC/DC (CAT IV) input.
-
Page 3: Other Convenient Functions
Settings are as Easy as 1-2-3 with PRESETS To configure the MR8880, you need only select what you’d like to measure—“Measure a commercial power supply,” “Monitor a power source for a voltage drop,” etc.—and follow the on-screen instructions to select the appropriate set- tings. - Page 4 Recording interval of 100 μs to 1 min n Recording Capacity Note: Use only Hioki CF cards that are guaranteed to operate with the HiCorder for continuous long-term recording. l Waveform data is saved directly in a binary format to a CF card or...
- Page 5 By backing up the internal power supply until processing to save data to the ex- ternal media completes, the instrument enables highly reliable data collection. Note: Operation of non-HIOKI CF cards is not guaranteed Can the MR8880 The instrument complies with JIS withstand the vibrations in automotive vibration standards.
-
Page 6: Basic Specifications
600 V AC, DC CAT III / 300 V AC, DC CAT IV 3) HIOKI sensor: Set HIOKI clamp-on probe and range value. Max. rated voltage to (with input isolated from the unit, the maximum voltage that can be applied between 4) Output rate setting: Select scaled value per 1 V from a list. -
Page 7: Appearance And Dimensions
n Appearance and Dimensions Screen display Analog input Display 5.7-inch VGA-TFT color LCD (640 × 480dot) (Isolated BNC terminal) Time axis: × 10 to × 2 (zoom view supported for high-speed Waveform display recording only), × 1, × 1/2 to × 1/2,000 scale USB terminal Voltage axis: ×... - Page 8 Includes a PC card adapter with the 9728/9729, and the 9830 OUTPUT CORD L9095 Use only CF Cards or USB drive sold by HIOKI. Compatibility and *Voltage to ground is within this product's specifications. performance are not guaranteed for CF cards/USB memory stick Connect to BNC terminal, 1.5 m (4.92 ft) length...
