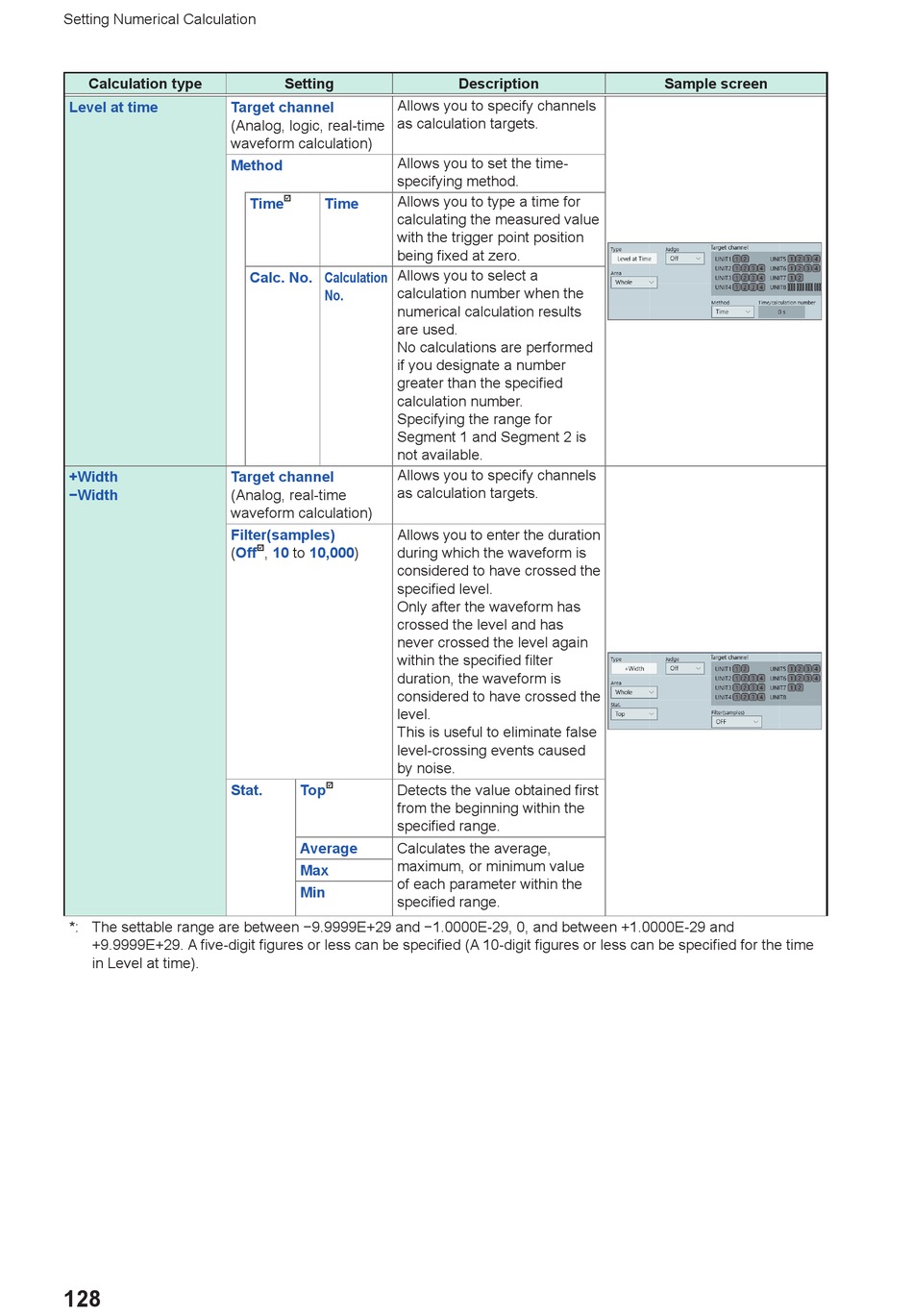

Setting Numerical Calculation
Calculation type
Level at time Target channel
(Analog, logic, real-time
waveform calculation)
Method
+Width Target channel
−Width (Analog, real-time
waveform calculation)
Filter(samples)
(Off
Stat.
*: The settable range are between −9.9999E+29 and −1.0000E-29, 0, and between +1.0000E-29 and
+9.9999E+29. A five-digit figures or less can be specified (A 10-digit figures or less can be specified for the time
in Level at time).
128
Setting
Allows you to specify channels
as calculation targets.
Allows you to set the time-
specifying method.
Allows you to type a time for
Time Time

calculating the measured value
with the trigger point position
being fixed at zero.
Allows you to select a
Calc. No. Calculation
calculation number when the
No.
numerical calculation results
are used.
No calculations are performed
if you designate a number
greater than the specified
calculation number.
Specifying the range for
Segment 1 and Segment 2 is
not available.
Allows you to specify channels
as calculation targets.
Allows you to enter the duration
 , 10 to 10,000) during which the waveform is
considered to have crossed the
specified level.
Only after the waveform has
crossed the level and has
never crossed the level again
within the specified filter
duration, the waveform is
considered to have crossed the
level.
This is useful to eliminate false
level-crossing events caused
by noise.
Top  Detects the value obtained first
from the beginning within the
specified range.
Average
Calculates the average,
maximum, or minimum value
Max
of each parameter within the
Min
specified range.
Description Sample screen
