2.7 Enlarging a Part of the Waveform (Zoom
Function)

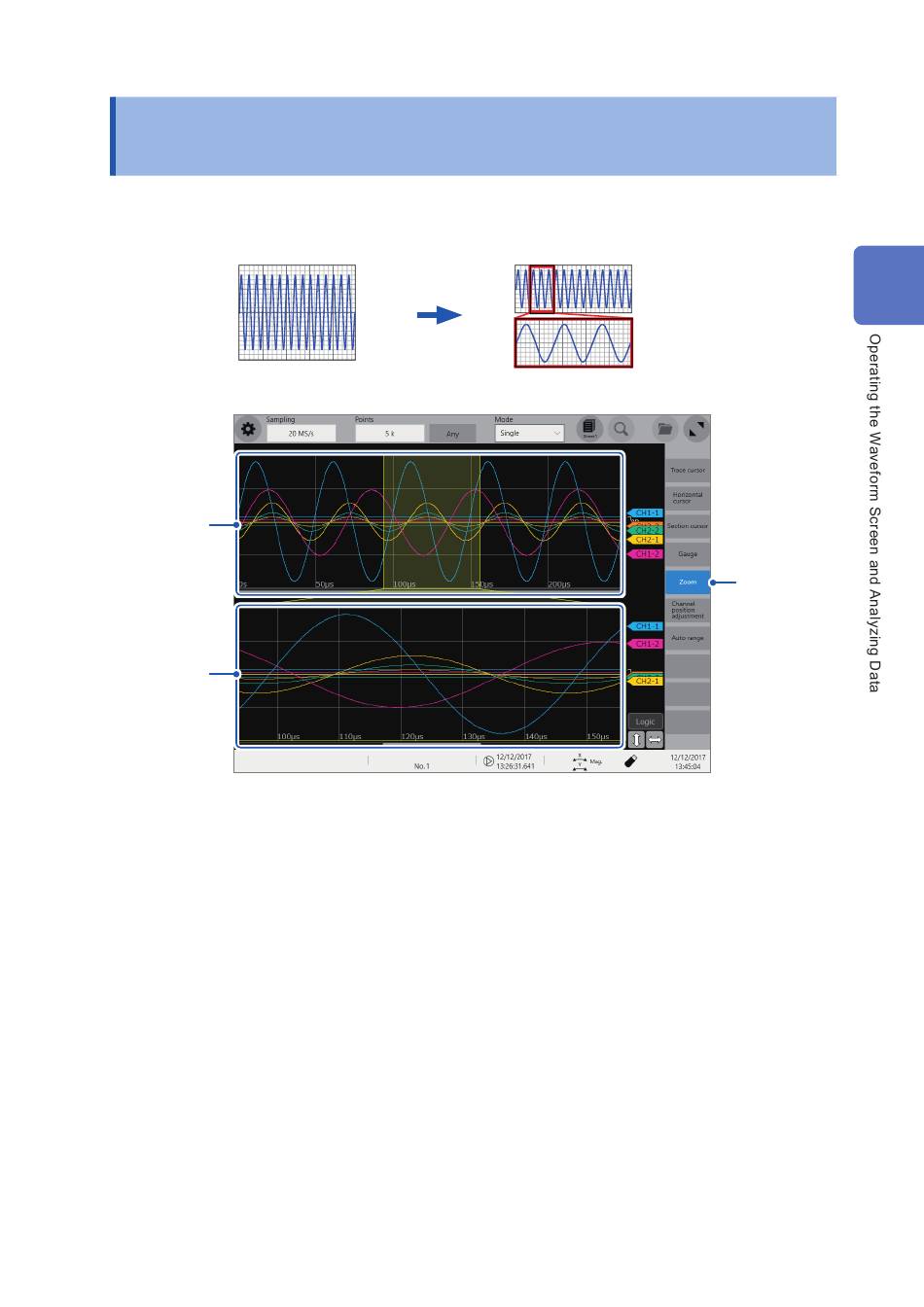

Using the zoom function allows you to enlarge a part of the waveform.
Normal display
2
2
1
Set [Zoom].
When the zoom function is enabled, the screen is horizontally split into two: the upper and lower screens.
Upper screen: Displays the waveforms in the magnification specified before the zoom function was applied.
The part of the waveforms enclosed by the yellow frame represents the zoomed display range
shown in the lower screen.
Lower screen: Displays the zoomed-in waveform
2
Change the display magnification.
Pinch in or out each screen to change the display magnification of waveforms on each screen.
3
Scroll the waveform to be observed.
Drag and scroll waveforms on each screen.
To cancel the zoomed display
Tap [Zoom] on the screen to cancel the zoomed display. When you cancel the zoomed display, the
display (the upper screen) restores that with the normal magnification.

Enlarging a Part of the Waveform (Zoom Function)

Zoomed display
Normal
waveform
Zoomed
waveform
2
1
