Max.
20 MS/s
high-speed sampling
For on-site work and R&D testing
Global Standard Recorder
Measuring multi-channel voltage and current simultaneously
4CH ANALOG UNIT
3CH CURRENT UNIT
High-voltage 1000 V direct input measurement
Max. 1 MS/s high-speed sampling, 16-bit resolution measurement
HIGH-VOLTAGE UNIT
Generate and record in a single unit
ARBITRARY WAVEFORM GENERATOR UNIT
Reproduce and output problematic waveform measurements
No amp needed; max. 15 V output
Logic channels
All analog channels
32 ch
Max.
Max.
isolated
16 channels standard
Compatible with multi-channel input units

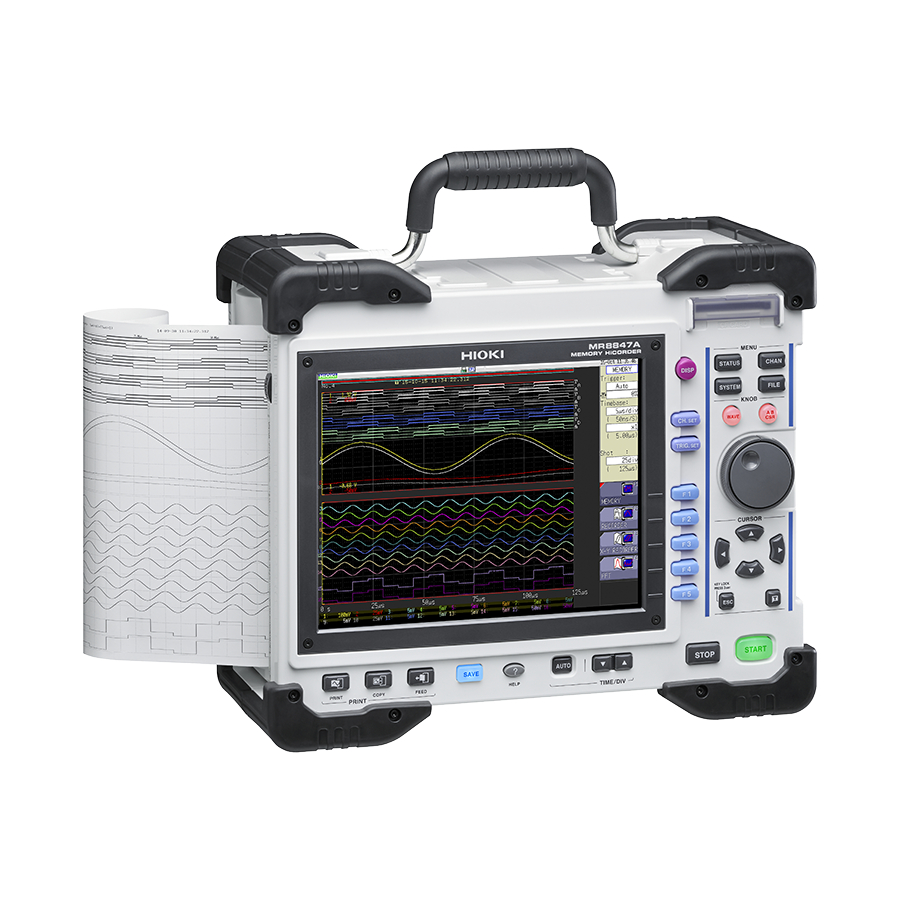

MEMORY HiCORDER MR8847A
64 ch
(Ver. 2 .00 or later)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MR8847A and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Hioki MR8847A

  • Page 1 MEMORY HiCORDER MR8847A Max. Logic channels All analog channels 20 MS/s 32 ch 64 ch Max. Max. high-speed sampling isolated 16 channels standard For on-site work and R&D testing Global Standard Recorder Measuring multi-channel voltage and current simultaneously Compatible with multi-channel input units (Ver.
  • Page 2 Testing Vibration testing at the product development stage A high-spec, high-quality versatile measuring device 20 MS/sec sampling speed Isolated input for all channels Perform multi-channel, high-speed sampling at 20 M samples/sec Connections between analog input (time axis resolution: 50 nsec) for all channels at the same time. channels, and between the input channel and the main unit, are Note:...
  • Page 3 Input Print output The MR8847A has 16 built-in logic input channels. Add 3 SSD 128 GB storage media logic input units to record a total of 64 channels at once. The waveforms of all channels can be displayed on a The new internal SSD unit (available as an single screen, making it ideal for timing measurements.
  • Page 4 Current Probe CT6711, it can measure currents from 1 mA to 50 A. space taken up by instruments can be reduced by replacing a bench-style DMM with the MR8847A. Systems can be simplified by eliminating the Observe minuscule currents using high-sensitivity need to control multiple instruments.
  • Page 5 Square wave Pulse wave -0.01 Ramp up wave Ramp down wave Sweep output Program output -0.015 Elapsed time [h] Hioki offers a wide range of current sensors to suit all frequency band and rated current needs Program and generate connected waveforms...
  • Page 6: Table Of Contents

    U8975 FREQ UNIT 8970 Maximum 1 MS/s high-speed sampling and 16-bit resolution in the high-voltage unit CONNECTION CORD L9197 allow the MR8847A to be used for interruption and switch testing CURRENT UNIT 8971 CLAMP ON SENSOR 9272-05 CONVERSION CABLE CT9901...
  • Page 7: Device Model No

    MEMORY HiCORDER MR8847 A Anomaly simulation testing 4 ch 4 ch waveform voltage Reproduce and output the observed anomalous waveforms without modification. When resolving problems observed output measurement during research or development, you can reproduce such problems for effecient testing. You can also output waveforms that you created yourself for testing and measure the results at the same time.
  • Page 8 Acquiring data with triggers, and post-acquisition searching Adjust levels while displaying waveforms The MR8847A includes a search function for finding abnormal waveforms within all of the acquired data. You can use this function to search for anomalies after data has been acquired, when it is too difficult to set triggers because it is not possible to predict what types of anomalies might be observed.
  • Page 9 MEMORY HiCORDER MR8847 A Enlarge waveforms Zoom function Display time axis reduced waveforms at the top of the screen, and time axis enlarged waveforms at the bottom of the screen. You can use the scroll function to display the entire waveform while also observing specific parts.
  • Page 10 1 h 06 min 40 s 4 h 26 min 40 s 8 h 53 min 20 s - Caution: for more reliable data protection, we recommend use of Hioki CF cards USB DRIVE Z4006 , which are guaranteed to work with the instrument...
  • Page 11: Memory Hicorder Mr8847-51

    *New function on Ver. 2.0 ■ Data can be viewed by the iPad using Hioki’s dedicated apps available from the App Store. Search for “HIOKI” and download the “HMR Terminal” app. *iOS is a registered trademark of Cisco Technology, Inc. and/or its affiliates in the United States and certain other countries.
  • Page 12 Definitive analysis of important data Calculate parameter values from measured waveforms The MR8847A can perform 24 calculations, including RMS, peak value, and maximum value, from measured wavefo r m s. It c a n a l s o p e r fo r m ti m e d i f fe re n c e...
  • Page 13 Judge FFT analysis waveforms in the same way. Judge waveform quality by area Judgment: poor Judge X-Y waveforms In addition to time axis signals, the MR8847A also has a waveform judgment function for X-Y waveforms built in. Use this to detect: - Displacement and pressure of presses...
  • Page 14 Product specifications Basic specifications (Accuracy guaranteed for 1 year, post-adjustment accuracy guaranteed Internal printer for 1 year) Printer paper one-touch loading, high-speed thermal printing MEMORY (high-speed recording), RECORDER (real-time recording) Features Measurement X-Y RECORDER, FFT functions 216 mm (8.50 in.) × 30 m (98.43 ft.), thermal paper roll (use 9231 paper) Waveform section recording width: 200 mm (7.87 in.) 20 division full scale, Recording Paper Eight analog input modules: 16 analog channels + 16 logic channels (built-in)
  • Page 15 MEMORY HiCORDER MR8847 A Trigger functions FFT function MEMORY (high-speed recording), FFT: single, repeat, auto Storage waveform, linear spectrum, RMS spectrum, power spectrum, Trigger mode RECORDER (real-time recording): single, repeat density of power spectrum, cross power spectrum, auto-correlation function, histogram, transfer function, cross-correlation function, Analysis modes Ch 1 to ch 16 (analog), atandard logic 16 ch + logic unit (max.
  • Page 16: Analog Unit 8966

    Measurement functions [752°F] for B), ±0.1% f.s. ±3°C (±5.4°F) (at 400°C [752°F] or more) Reference junction compensation accuracy: ±1.5°C (±2.7°F ) (added to Mini DIN connector (for Hioki logic probes only) Input terminals measurement accuracy with internal reference junction compensation)
  • Page 17: High-Voltage Unit U8974

    RMS measurement (rise time from 0% to 90% of full scale), FAST 100 ms (rise time from 0% to 90% of Waveforms measured by MR8847A, etc., generated by Hioki model 7075 or SF8000, CSV waveforms Arbitrary waveform gen- full scale), crest factor: 2...
  • Page 18: 4Ch Analog Unit U8975

    4 terminals, 16 ch, for use with up to 3 units Use only the CF Cards or USB drive sold by Hioki. Compatibility and performance are not guaran- teed for CF cards or USB memory sticks made by other manufacturers. You may be unable to read from or save data to such cards.
  • Page 19: Connection Cord

    Frequency characteristics: DC to 120 MHz * Separate power source is also required. Custom cable wideband response, 1 mA-class up to 5 A rms * For P9000, inquire with your local Hioki distributor DIFFERENTIAL PROBE 9322 CLAMP ON PROBE 3273-50 (1) Bus powered USB cable...
  • Page 20 Unit selection guide (17 types) The following units are compatible with the MR8847A. Some units in the list are also compatible with the MEMORY HiCORDER MR6000, Unit MR8827, MR8740, MR8741, and MR8740-50. Please check the brochure of each product. interchangeability Max.
