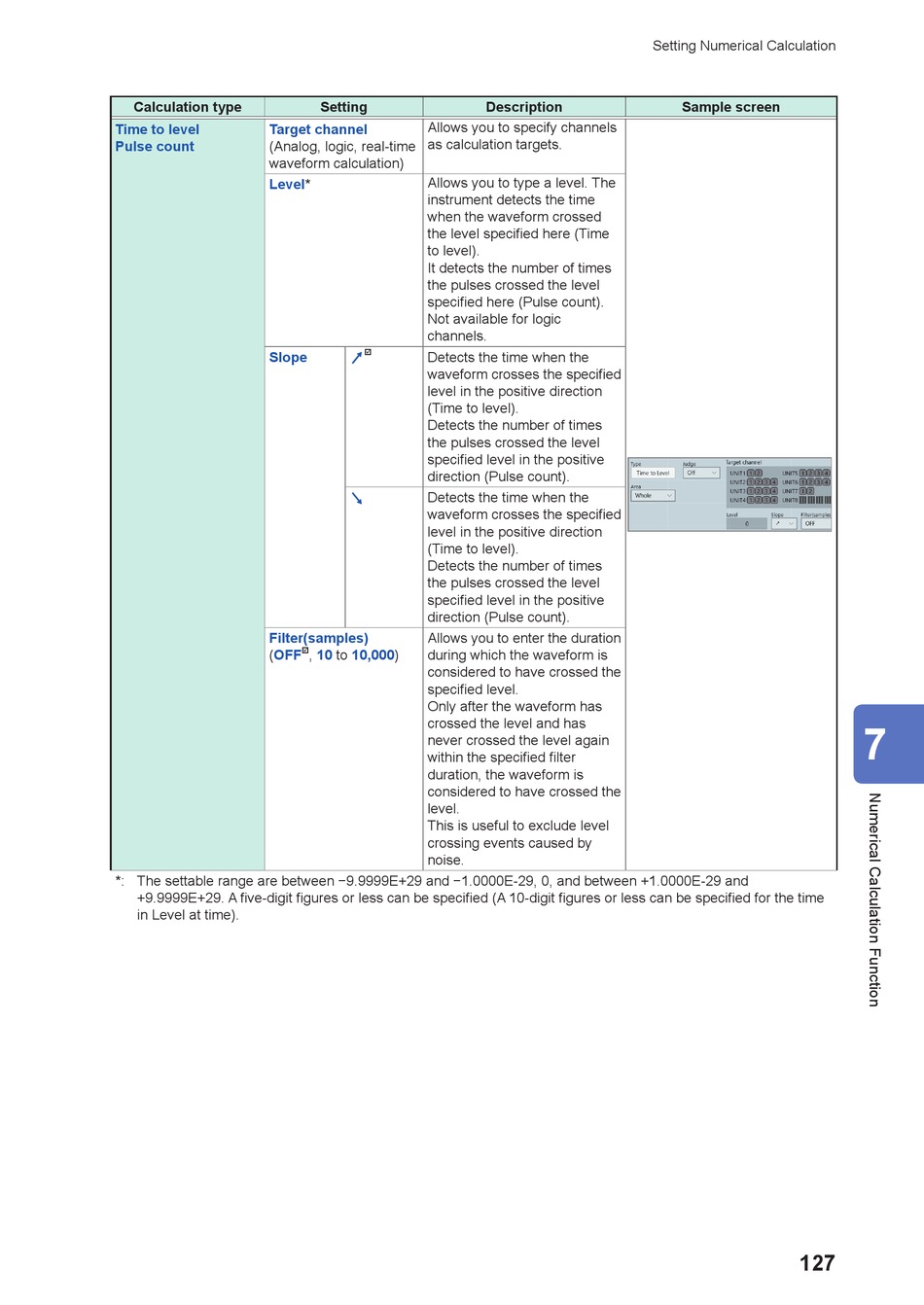

Hioki Memory HiCorder MR6000 Instruction Manual page 131

Calculation type
Time to level Target channel
Pulse count
(Analog, logic, real-time
waveform calculation)
Level*
Slope
Filter(samples)
(OFF
*: The settable range are between −9.9999E+29 and −1.0000E-29, 0, and between +1.0000E-29 and
+9.9999E+29. A five-digit figures or less can be specified (A 10-digit figures or less can be specified for the time
in Level at time).
Setting
Allows you to specify channels
as calculation targets.
Allows you to type a level. The
instrument detects the time
when the waveform crossed
the level specified here (Time
to level).
It detects the number of times
the pulses crossed the level
specified here (Pulse count).
Not available for logic
channels.
 Detects the time when the
waveform crosses the specified
level in the positive direction
(Time to level).
Detects the number of times
the pulses crossed the level
specified level in the positive
direction (Pulse count).
Detects the time when the
waveform crosses the specified
level in the positive direction
(Time to level).
Detects the number of times
the pulses crossed the level
specified level in the positive
direction (Pulse count).
Allows you to enter the duration
 , 10 to 10,000) during which the waveform is
considered to have crossed the
specified level.
Only after the waveform has
crossed the level and has
never crossed the level again
within the specified filter
duration, the waveform is
considered to have crossed the
level.
This is useful to exclude level
crossing events caused by
noise.
Setting Numerical Calculation
Description Sample screen
