External Input and Output

10.1 External Input and Output
External input (IN1), (IN2)
Externally inputting signals can start and stop the measurement as well as save the data. In factory
default settings, the START signal is assigned to the IN1 terminal, and the Stop signal to the IN2
terminal.
Signal inputting procedure
1
Connect each of the IN1, IN2, and GND terminals to an external signal-outputting device with
the wires.
Refer to "2.5 Connecting the External Control Terminals" in Quick Start Manual.
2

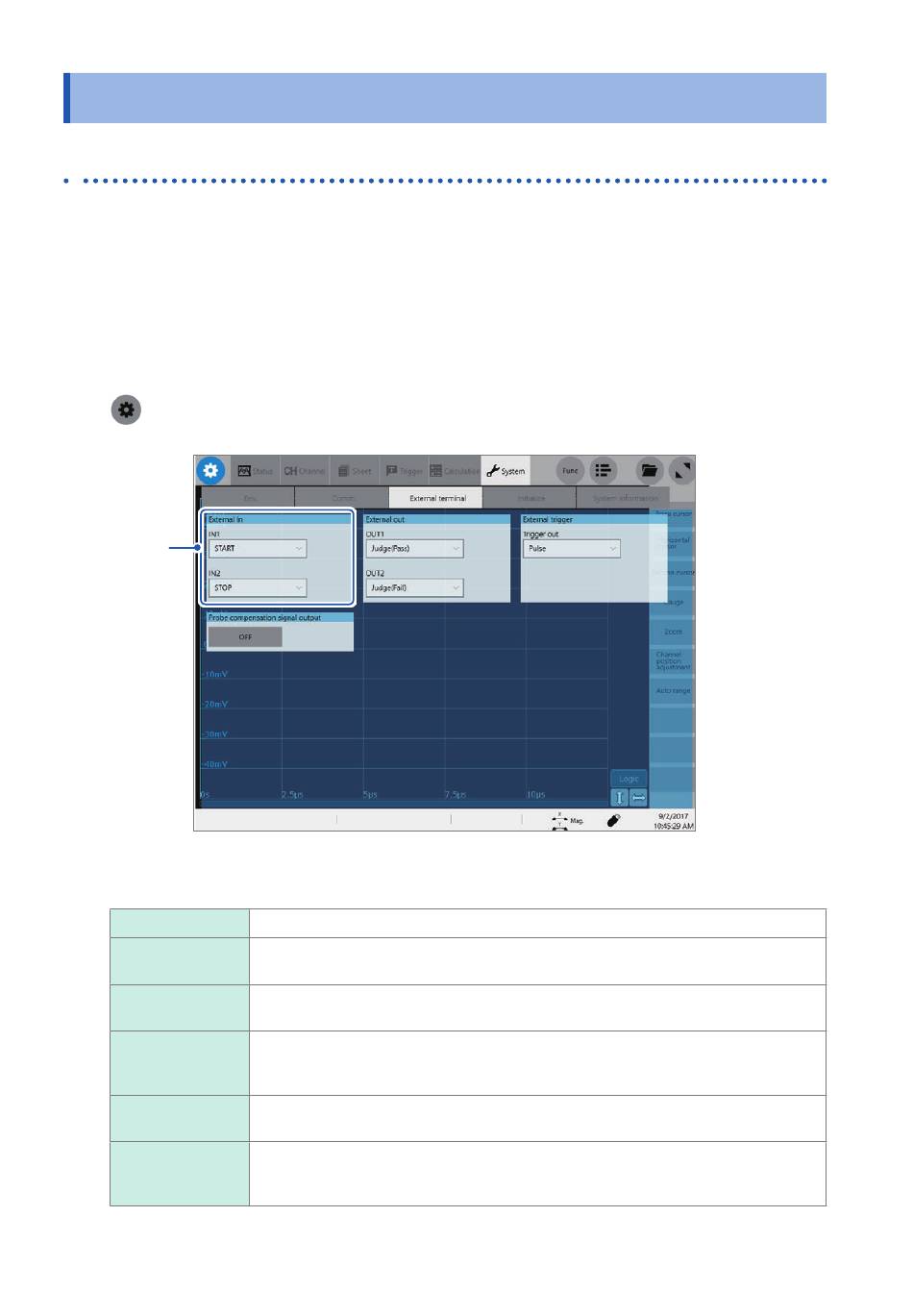

> [System] > [External terminal]
3
3
Set [External In].
Select any two of the actions to be performed by the instrument in response to the external input signal.
START
STOP
START/STOP
SAVE
ABORT
EVENT
180
Starts a measurement.
Stops the measurement. (Post-measurement processes such as numerical
calculations and automatic saving are performed.)
Starts a measurement when the low-level signal is input; stops the measurement when
the high-level signal is input.
Saves the measured data on the storage device specified in [Quick], which is
accessible by proceeding in the following order:
[Status] > [Save] > [Save key operation] > [Quick]
Forcefully terminates the measurement. (No post-measurement processes such as
numerical calculations or automatic saving are performed.)
Puts on a event mark.
The event marks are put on the Waveform screen.
The event mark can be put by pressing the
START
key during measurement.
