Operating the Rotary Knob

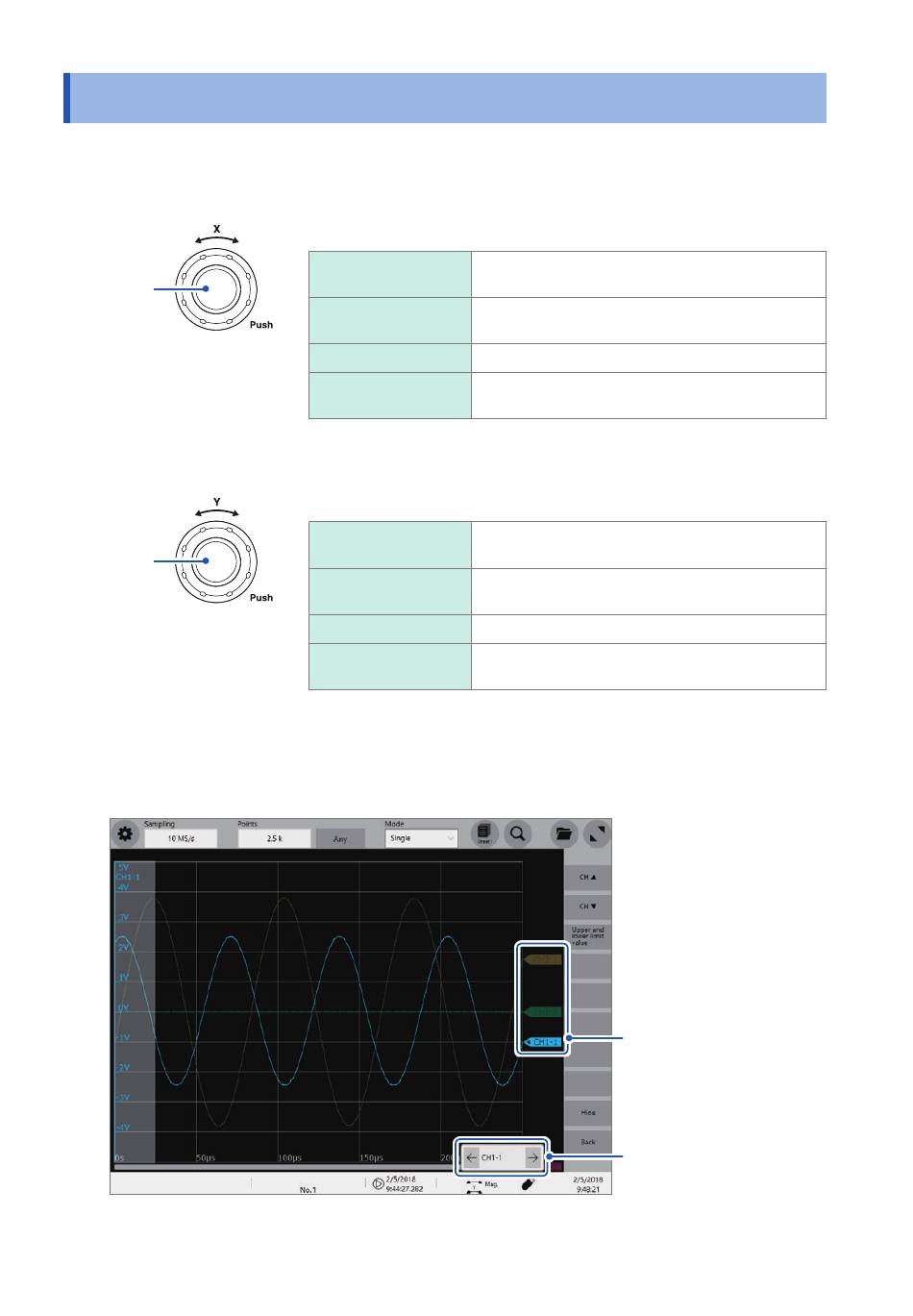

2.6 Operating the Rotary Knob
Push the rotary knob to select an action and turn the knob to perform the action.
Operation of the rotary knob X
Push
Operation of the rotary knob Y
Push
When a rotary knob is operated, the channel-selecting panel is displayed in some cases, which
allows you to select an operational channel by tapping the
directly select an operational channel by tapping a channel marker.
36
Pushing the rotary knob X selects one of the following actions in turn:
Rotate
Magnification/
demagnification ratio
Position
Cursor
Setting
Pushing the rotary knob Y selects one of the following actions in turn:
Rotate
Magnification/
demagnification ratio
Position
Cursor
Setting
Changes the magnification/demagnification ratio of
all channels in the horizontal axis direction.
Changes the display position of all channels in the
horizontal axis direction.
Moves the selected cursor.
Changes the sampling rate. This operation can be
used on the waveform screen only.
Changes the display magnification of the selected
channel in the vertical axis direction.
Changes the display position of the selected channel
in the vertical axis direction.
Moves the selected cursor.
Changes the measurement range. This operation
can be used on the waveform screen only.
[←] or [→] button. In addition, you can
Tap a channel
marker.
Select a channel.
