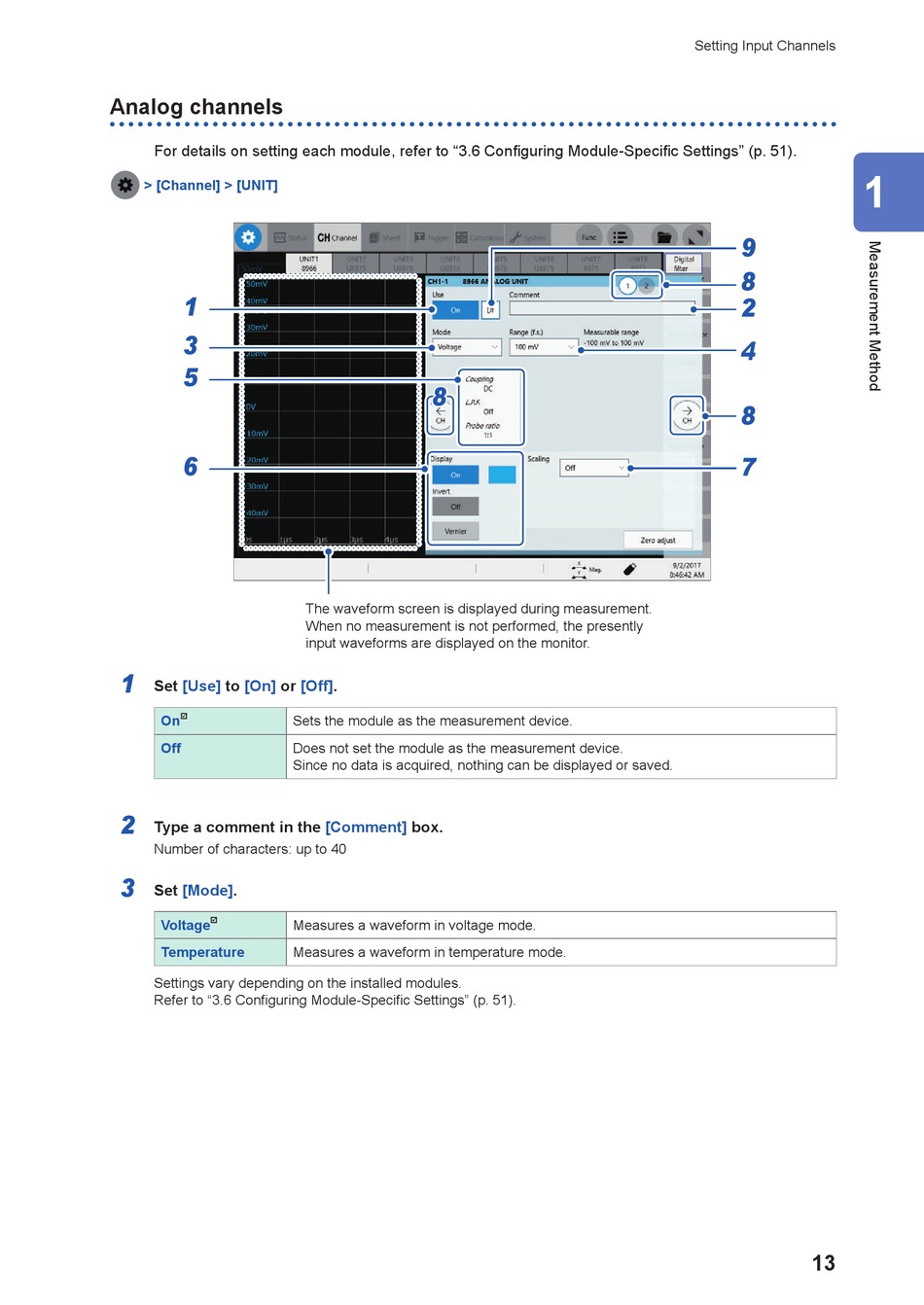

Analog channels
For details on setting each module, refer to "3.6 Configuring Module-Specific Settings" (p. 51).
> [Channel] > [UNIT]
1
3
5
6
1
Set [Use] to [On] or [Off].
On 
Off
2
Type a comment in the
Number of characters: up to 40
3
Set [Mode].
Voltage 
Temperature
Settings vary depending on the installed modules.
Refer to "3.6 Configuring Module-Specific Settings" (p. 51).
8
The waveform screen is displayed during measurement.
When no measurement is not performed, the presently
input waveforms are displayed on the monitor.
Sets the module as the measurement device.
Does not set the module as the measurement device.
Since no data is acquired, nothing can be displayed or saved.
[Comment] box.
Measures a waveform in voltage mode.
Measures a waveform in temperature mode.
