Numerical Calculation Function
The numerical calculation function cannot be used when the envelope is used.
Results calculated from the acquired waveforms are displayed as numerical values on the
waveform screen. These calculation results can be evaluated on a pass/fail basis.

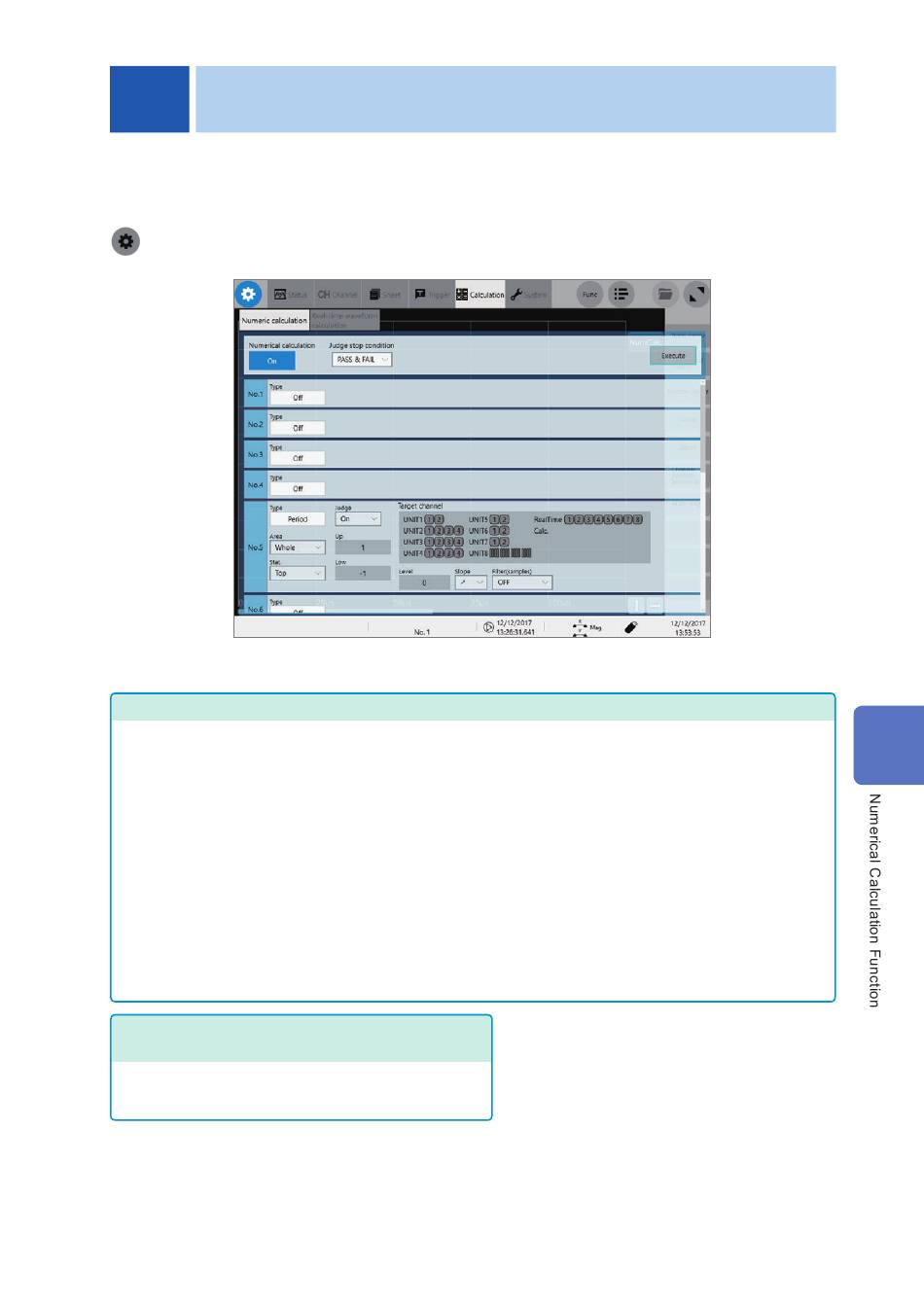

> [Calculation] > [Numeric calculation]
Operation available on the

Numerical Calculation

• Average
• RMS
P-P
•
• Maximum
Time to maximum
•
• Minimum
• Time to minimum
• Period
• Frequency
• Rise time
• Fall time
Standard deviation
•
• Area
X-Y area
•
• Time to level
• Level at time
Evaluating the numerical calculation results on a
pass/fail basis
You can evaluate the results of numerical calculations by
comparing them with specified reference ranges, giving
pass or fail judgments.
[Numeric calculation]
• Pulse width
• Duty ratio
Pulse count
•
• Arithmetic operations
Time difference
•
• Phase contrast
• High level
• Low level
• Intermediate value
• Amplitude
• Overshoot
• Undershoot
• +Width
−Width
•
• Burst width
• Accumulation
You can execute up to 16 types of numerical
(p. 132)
calculations simultaneously. When the
scaling function is enabled, scaled values are
calculated.
screen
• Angle of XY waveform
(33 types in total)
• Calculation of the data between
section cursors
Numerical calculations can be
performed for the data within
the range specified with section
cursors.
Formula details: "The target channel
to be calculated and the calculation
condition of each calculation type"
(p. 125)
