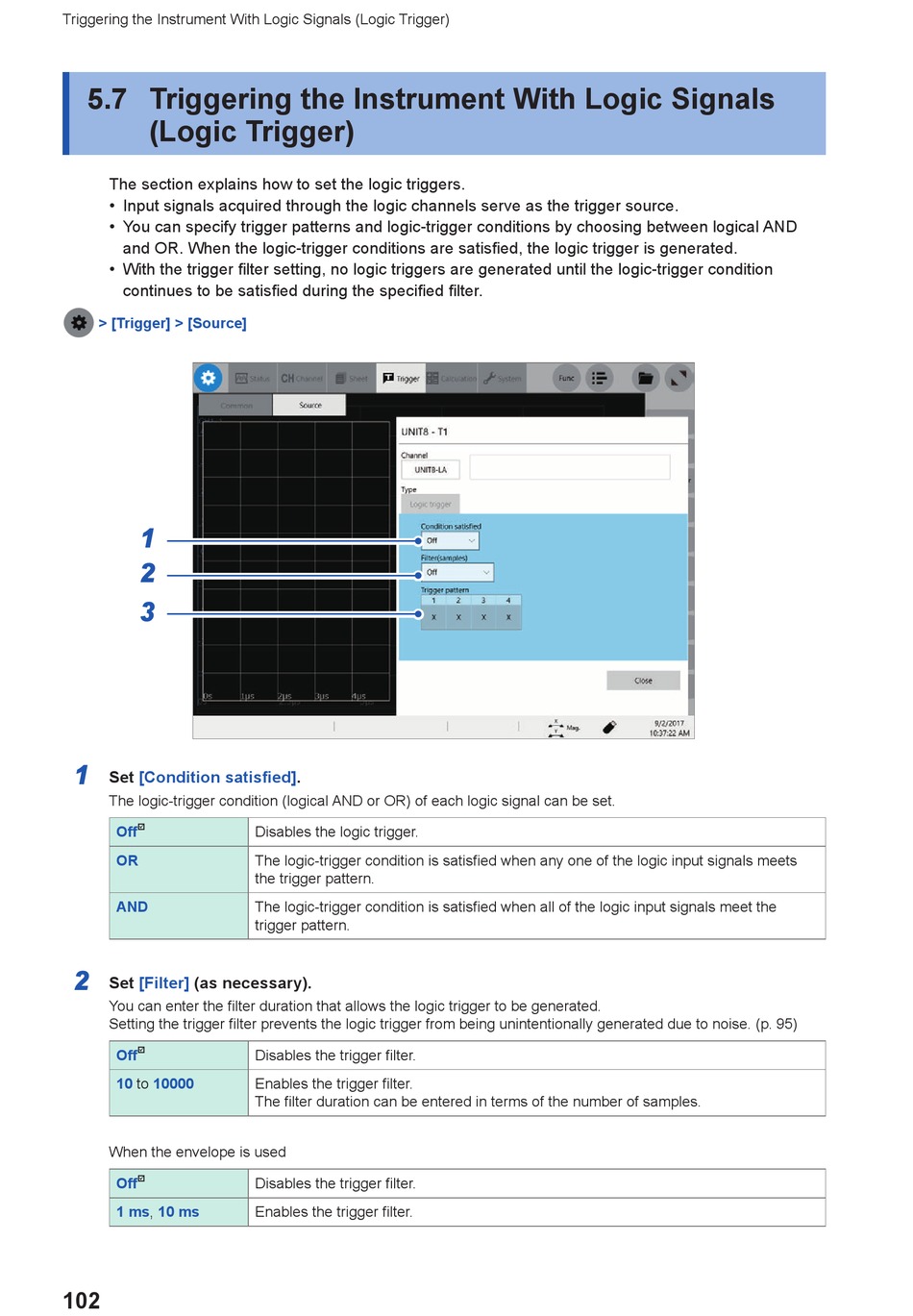

Triggering the Instrument With Logic Signals (Logic Trigger)

5.7 Triggering the Instrument With Logic Signals
(Logic Trigger)
The section explains how to set the logic triggers.
• Input signals acquired through the logic channels serve as the trigger source.
• You can specify trigger patterns and logic-trigger conditions by choosing between logical AND
and OR. When the logic-trigger conditions are satisfied, the logic trigger is generated.
• With the trigger filter setting, no logic triggers are generated until the logic-trigger condition
continues to be satisfied during the specified filter.
> [Trigger] > [Source]
1
2
3
1
Set [Condition satisfied].
The logic-trigger condition (logical AND or OR) of each logic signal can be set.
Off

OR
AND
2
Set [Filter] (as necessary).
You can enter the filter duration that allows the logic trigger to be generated.
Setting the trigger filter prevents the logic trigger from being unintentionally generated due to noise. (p. 95)
Off

10 to 10000
When the envelope is used
Off 
1 ms, 10 ms
102
Disables the logic trigger.
The logic-trigger condition is satisfied when any one of the logic input signals meets
the trigger pattern.
The logic-trigger condition is satisfied when all of the logic input signals meet the
trigger pattern.
Disables the trigger filter.
Enables the trigger filter.
The filter duration can be entered in terms of the number of samples.
Disables the trigger filter.
Enables the trigger filter.
