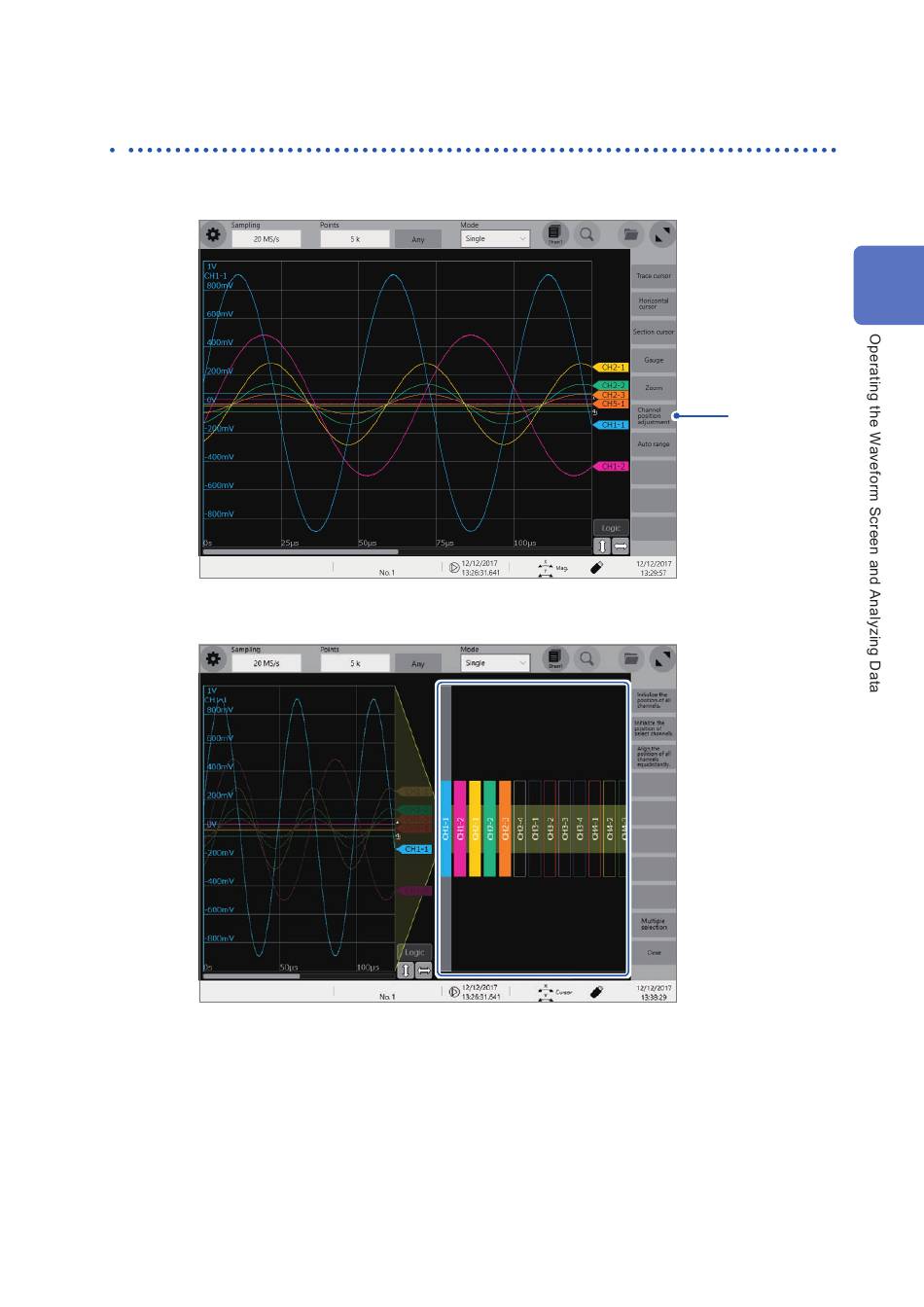

Differentiating the waveform display position and display
magnification for each analog channel
1
Tap
[Channel position
The channel position adjustment screen is displayed.
The yellow area shows the display range of the waveform screen.
Changing the Display Position and Display Magnification of the Waveforms
adjustment].
2
1
33
