Hioki MR8880-20 Quick Start Manual

MEMORY HiCORDER MEMORY HiCORDER
Capture high- to low-voltage signals in a single device
Rugged, Professional and Ready for the Field

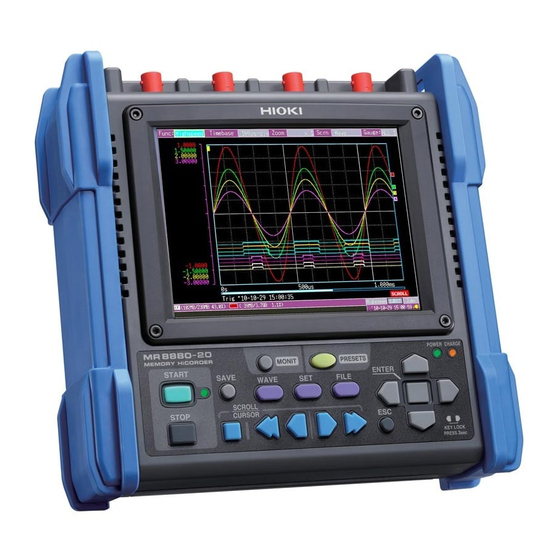

MR8880
CAT III 600 V insulation performance
• Maximum 600V AC/DC input - no need for a differential probe
• 4 completely isolated channels let you simultaneously record
data on a 3-phase power line plus have one extra channel
Tough against harsh environments
• Operating temperature range:
• Built to withstand mechanical shocks and vibrations
(ships standard with side protectors)
Make settings easily with
Simply select what you'd like to measure and follow the on-
screen instructions to select the appropriate settings. The
recorder can be easily configured to measure voltage drops
and power outages.
-20
Recorders
-10°C to 50°C
PRESETS
