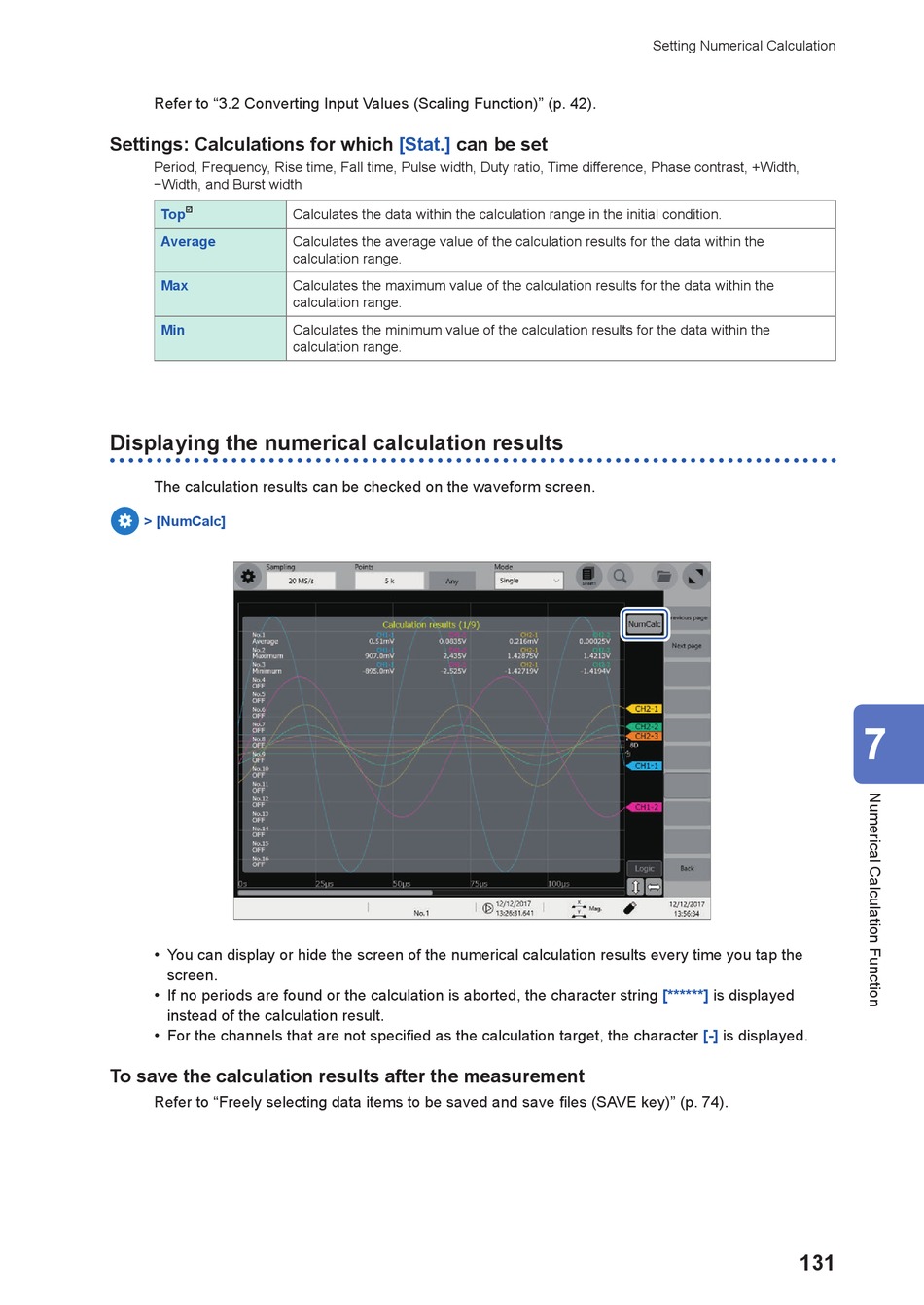

X84; Displaying The Numerical Calculation Results - Hioki Memory HiCorder MR6000 Instruction Manual

Refer to "3.2 Converting Input Values (Scaling Function)" (p. 42).
Settings: Calculations for which
Period, Frequency, Rise time, Fall time, Pulse width, Duty ratio, Time difference, Phase contrast, +Width,
−Width, and Burst width
Top

Average
Max
Min
Displaying the numerical calculation results
The calculation results can be checked on the waveform screen.
> [NumCalc]
• You can display or hide the screen of the numerical calculation results every time you tap the
screen.
• If no periods are found or the calculation is aborted, the character string
instead of the calculation result.
• For the channels that are not specified as the calculation target, the character
To save the calculation results after the measurement
Refer to "Freely selecting data items to be saved and save files (SAVE key)" (p. 74).
[Stat.] can be set
Calculates the data within the calculation range in the initial condition.
Calculates the average value of the calculation results for the data within the
calculation range.
Calculates the maximum value of the calculation results for the data within the
calculation range.
Calculates the minimum value of the calculation results for the data within the
calculation range.
Setting Numerical Calculation
[******] is displayed
[-] is displayed.
