5.6 Triggering the Instrument Using Analog Signals

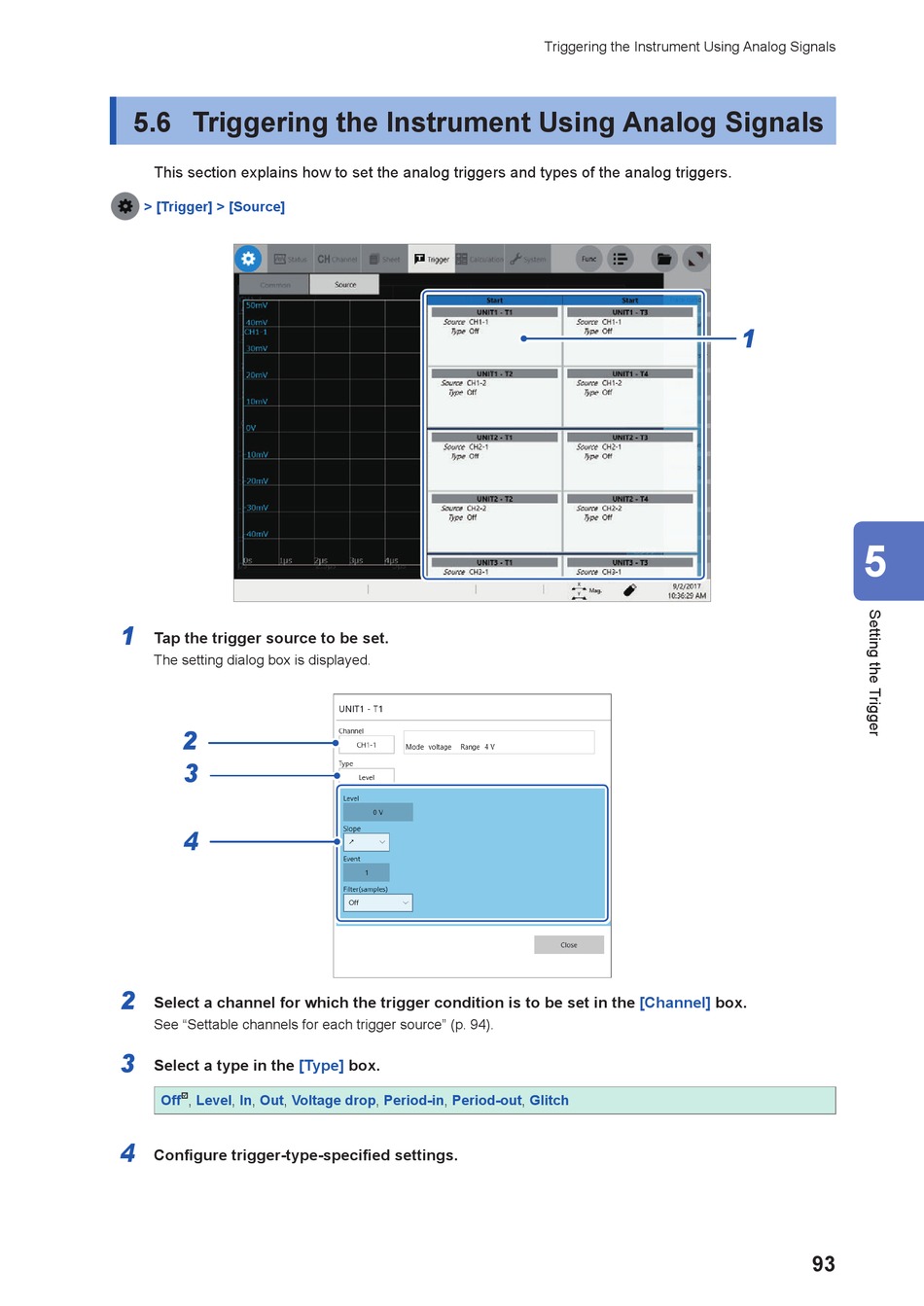

This section explains how to set the analog triggers and types of the analog triggers.
> [Trigger] > [Source]
1
Tap the trigger source to be set.
The setting dialog box is displayed.
2
3
4
2
Select a channel for which the trigger condition is to be set in the
See "Settable channels for each trigger source" (p. 94).
3
Select a type in the
Off  , Level, In, Out, Voltage
4
Configure trigger-type-specified settings.
[Type] box.
drop, Period-in, Period-out,
Triggering the Instrument Using Analog Signals
[Channel]
Glitch
1
5
box.
