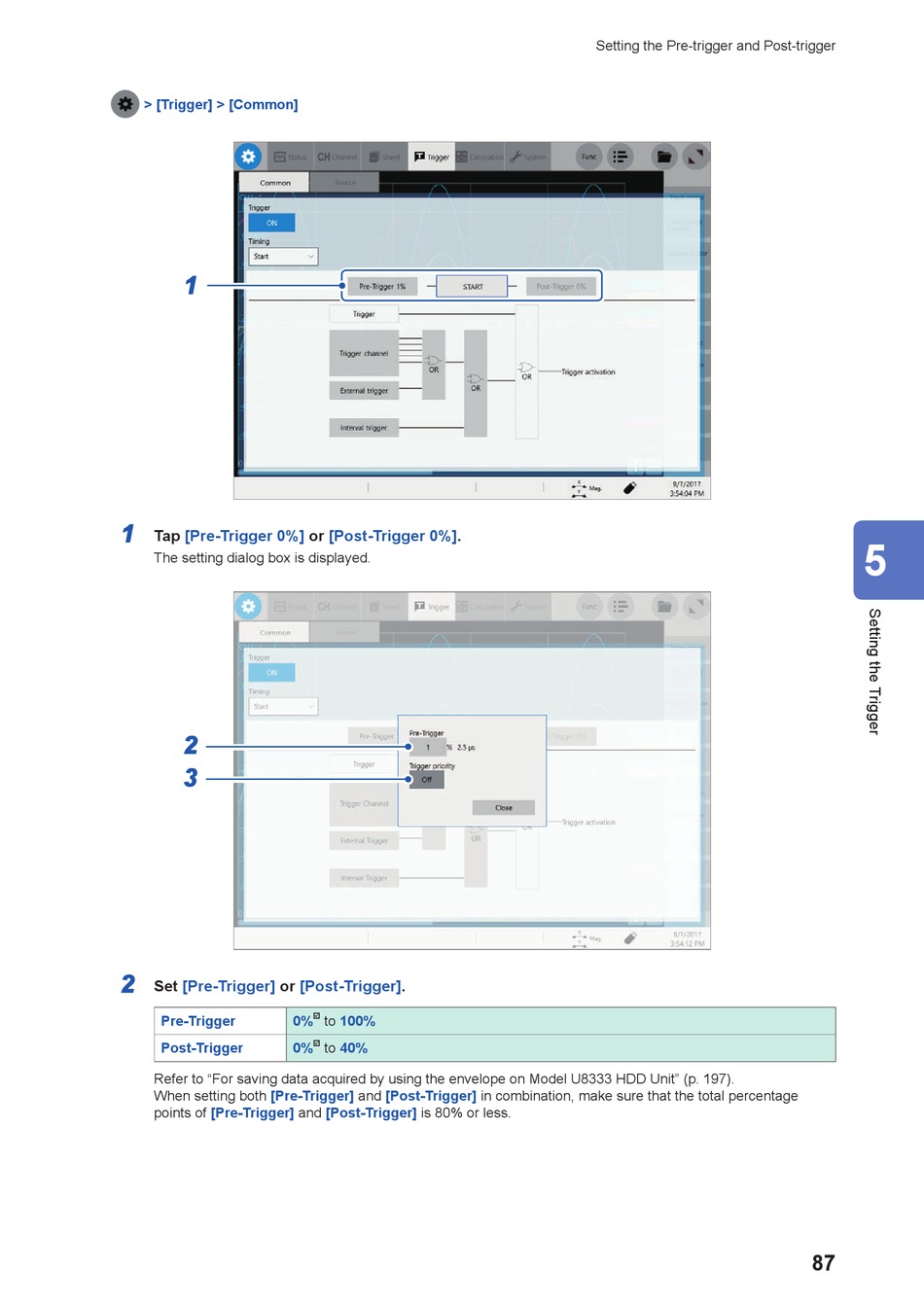

Hioki Memory HiCorder MR6000 Instruction Manual page 91

> [Trigger] > [Common]
1
1
Tap [Pre-Trigger 0%]
The setting dialog box is displayed.
2
3
2
Set [Pre-Trigger] or [Post-Trigger].
Pre-Trigger 0%
Post-Trigger 0%
Refer to "For saving data acquired by using the envelope on Model U8333 HDD Unit" (p. 197).
[Pre-Trigger]
When setting both
points of [Pre-Trigger]
or [Post-Trigger 0%].
 to 100%
 to 40%
[Post-Trigger]
and
and [Post-Trigger] is 80% or less.
Setting the Pre-trigger and Post-trigger
in combination, make sure that the total percentage
5
87
