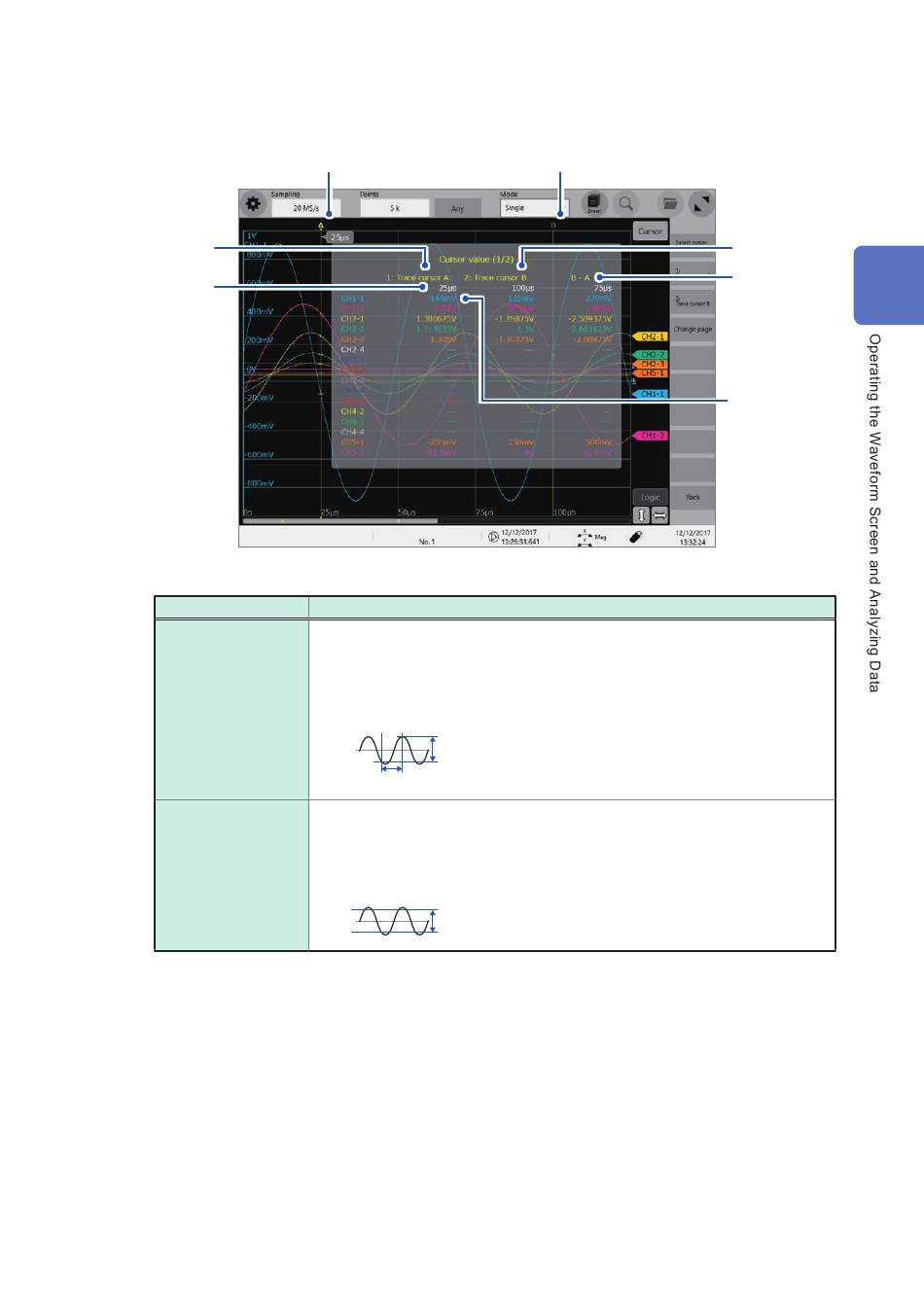

Reading measured values on the waveform screen
When the trace cursor is selected
Trace cursor A
Cursor value 1
Time
The display of the cursor values vary depending on the selected cursor type.
Cursor type
Trace cursor
Horizontal cursor
When the external sampling is used, the time is replaced with the number of samples.
When Trace cursor A is assigned to Cursor value 1; and Trace cursor B, to Cursor
value 2.
Time: A period of time from the trigger point or starting point of recording until the
trace cursor selected for Cursor value 1 or Cursor value 2
B − A: Difference in measured values between Trace cursor A and Trace cursor B
A B
B − A (Difference between measured values)
B − A (Time lag)
When Horizontal cursor A is assigned to Cursor value 1; and Horizontal cursor B,
to Cursor value 2
Cursor value 1 or Cursor value 2: Measured value of the specified cursor
B − A: Difference in measured values between Horizontal cursor A and Horizontal
cursor B
A
B − A
B
Reading Measured Values (Trace Cursors)
Trace cursor B
Cursor value
Cursor value 2
2
Difference
between
Cursor value
1 and Cursor
value 2
The values
of the points
at which
each cursor
crosses the
waveforms
are displayed.
