3.3 Fine-Adjusting Input Values (Vernier Function)

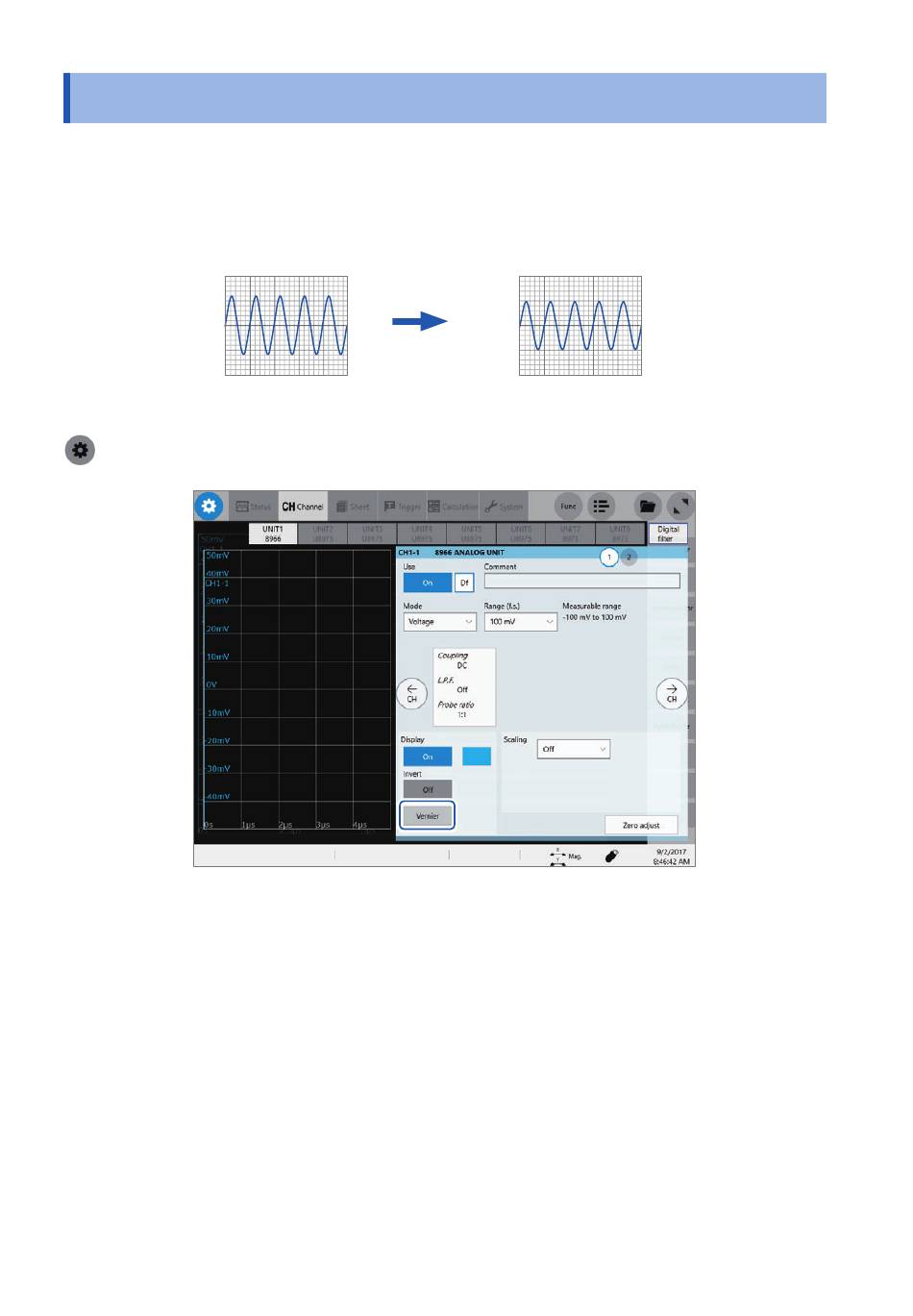

You can fine-adjust the input voltage freely on the waveform screen. When recording physical
quantities such as noise, temperature, and acceleration with sensors, you can adjust those
amplitudes, facilitating calibration.
Normal waveform
1.2 V
> [Channel]
Adjust the set value in [Vernier].
• The adjustable range is from 50% to 200% of an original waveform.
• You cannot check if waveforms are adjusted by the vernier function only by observing waveforms.
• The waveform data (data saved as files) is that adjusted by the vernier function.
48
Waveform processed by
the vernier function
1.0 V
When an input voltage of 1.2 V is
displayed as a voltage of 1.0 V
