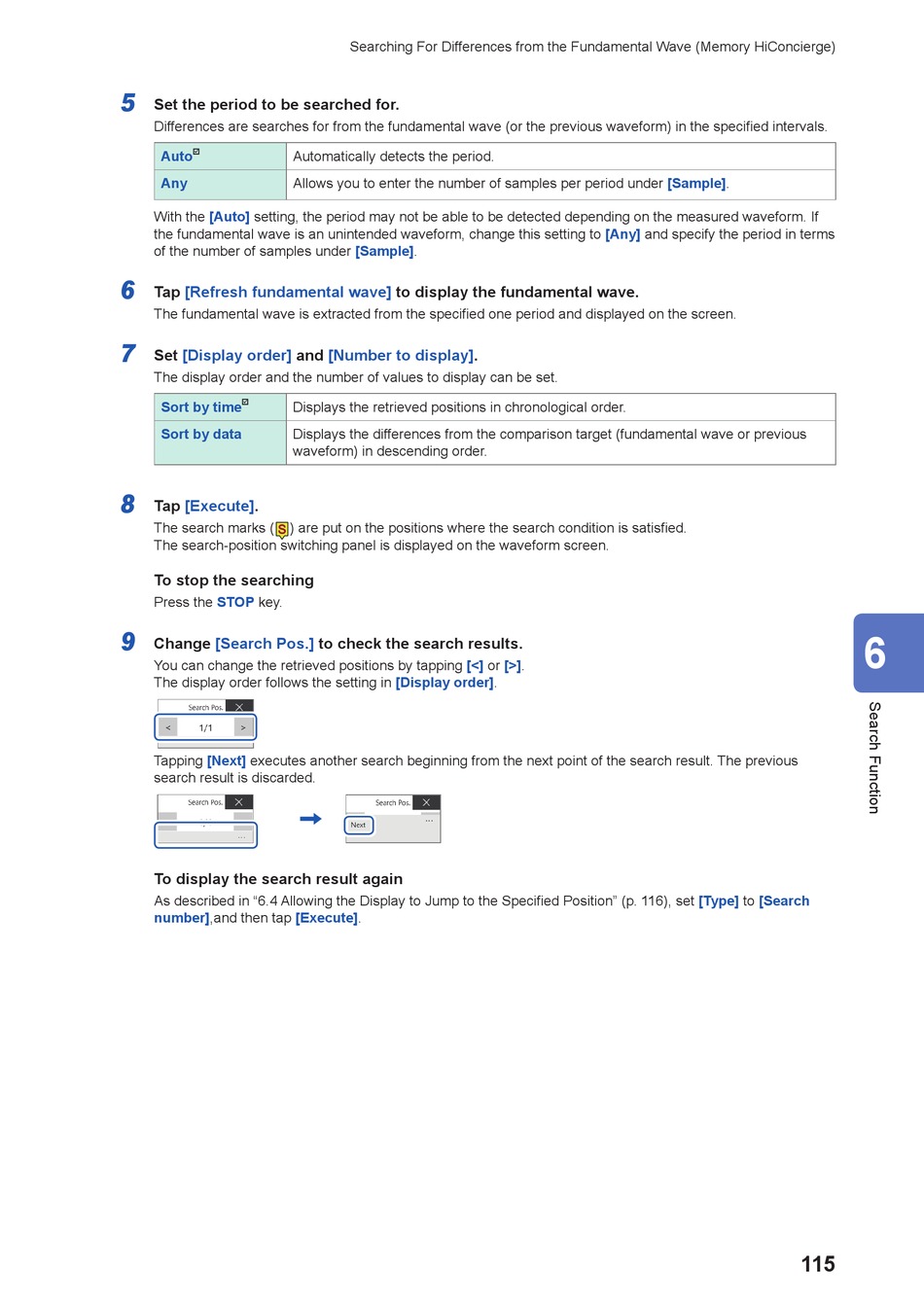

Hioki Memory HiCorder MR6000 Instruction Manual page 119

5
Set the period to be searched for.
Differences are searches for from the fundamental wave (or the previous waveform) in the specified intervals.
Auto  Automatically detects the period.
Any Allows you to enter the number of samples per period under [Sample].
With the [Auto] setting, the period may not be able to be detected depending on the measured waveform. If
the fundamental wave is an unintended waveform, change this setting to
of the number of samples under [Sample].
6
Tap [Refresh fundamental wave]
The fundamental wave is extracted from the specified one period and displayed on the screen.
7
Set [Display order]
The display order and the number of values to display can be set.
Sort by time  Displays the retrieved positions in chronological order.
Sort by data Displays the differences from the comparison target (fundamental wave or previous
waveform) in descending order.
8
Tap [Execute].
The search marks ( ) are put on the positions where the search condition is satisfied.
The search-position switching panel is displayed on the waveform screen.
To stop the searching
Press the STOP key.
9
Change [Search Pos.]
You can change the retrieved positions by tapping
The display order follows the setting in
[Next]
Tapping executes another search beginning from the next point of the search result. The previous
search result is discarded.
To display the search result again
As described in "6.4 Allowing the Display to Jump to the Specified Position" (p. 116), set
number],and then tap [Execute].
Searching For Differences from the Fundamental Wave (Memory HiConcierge)
to display the fundamental wave.
and [Number to display].
to check the search results.
[<]
[Display order].
[Any] and specify the period in terms
or [>].
6
[Type] to [Search
