Saving Data

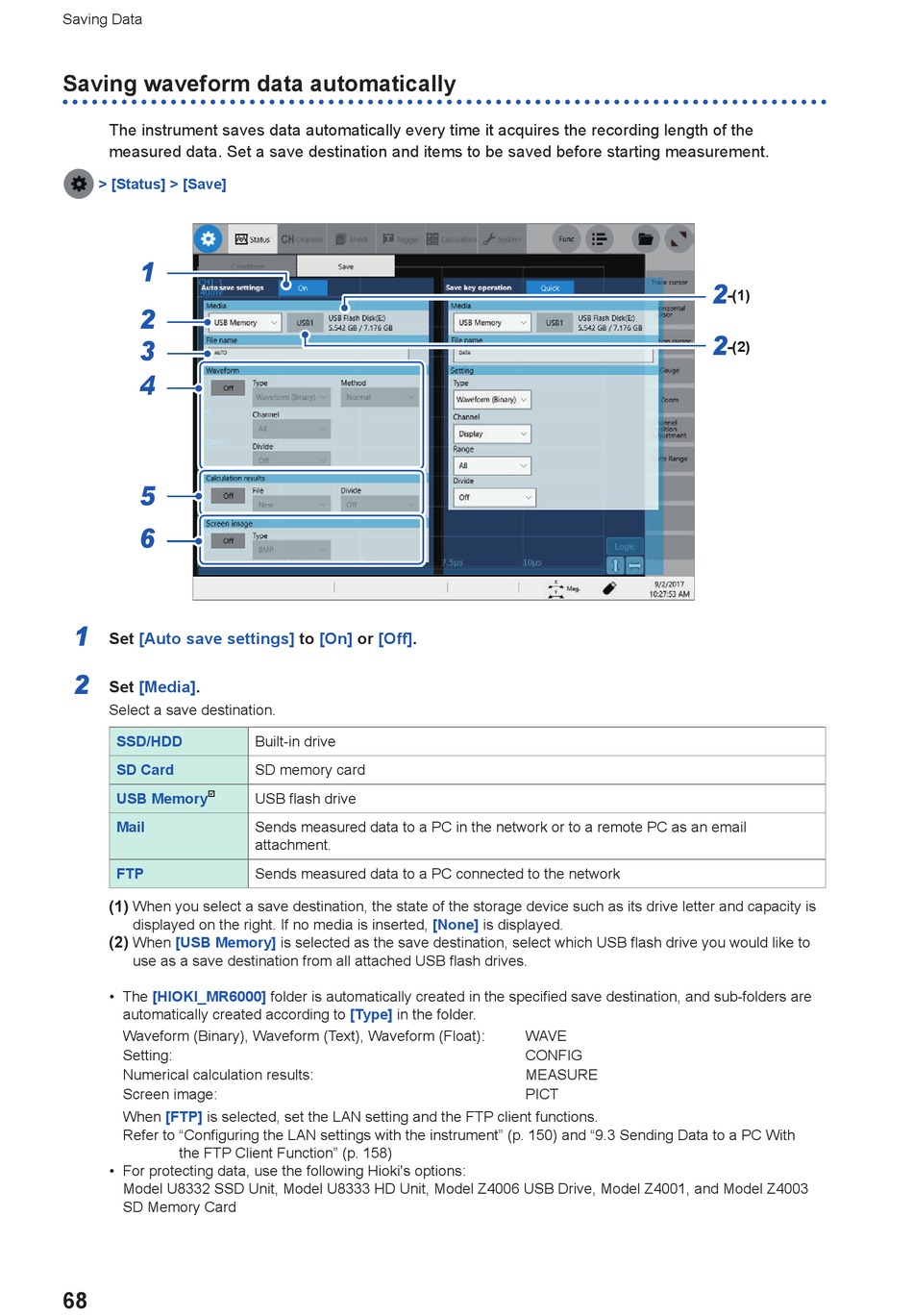

Saving waveform data automatically
The instrument saves data automatically every time it acquires the recording length of the
measured data. Set a save destination and items to be saved before starting measurement.
> [Status] > [Save]
1
2
3
4
5
6
1
Set [Auto save settings]
2
Set [Media].
Select a save destination.
SSD/HDD
SD Card
USB Memory 
Mail
FTP
(1)
When you select a save destination, the state of the storage device such as its drive letter and capacity is
displayed on the right. If no media is inserted,
(2)
When [USB Memory]
use as a save destination from all attached USB flash drives.
• The [HIOKI_MR6000]
automatically created according to
Waveform (Binary), Waveform (Text), Waveform (Float):
Setting:
Numerical calculation results:
Screen image:
When [FTP] is selected, set the LAN setting and the FTP client functions.
Refer to "Configuring the LAN settings with the instrument" (p. 150) and "9.3 Sending Data to a PC With
the FTP Client Function" (p. 158)
• For protecting data, use the following Hioki's options:
Model U8332 SSD Unit, Model U8333 HD Unit, Model Z4006 USB Drive, Model Z4001, and Model Z4003
SD Memory Card
68
to [On] or [Off].
Built-in drive
SD memory card
USB flash drive
Sends measured data to a PC in the network or to a remote PC as an email
attachment.
Sends measured data to a PC connected to the network
is selected as the save destination, select which USB flash drive you would like to
folder is automatically created in the specified save destination, and sub-folders are
[Type] in the folder.
[None] is displayed.
WAVE
CONFIG
MEASURE
PICT
2
-(1)
2
-(2)
