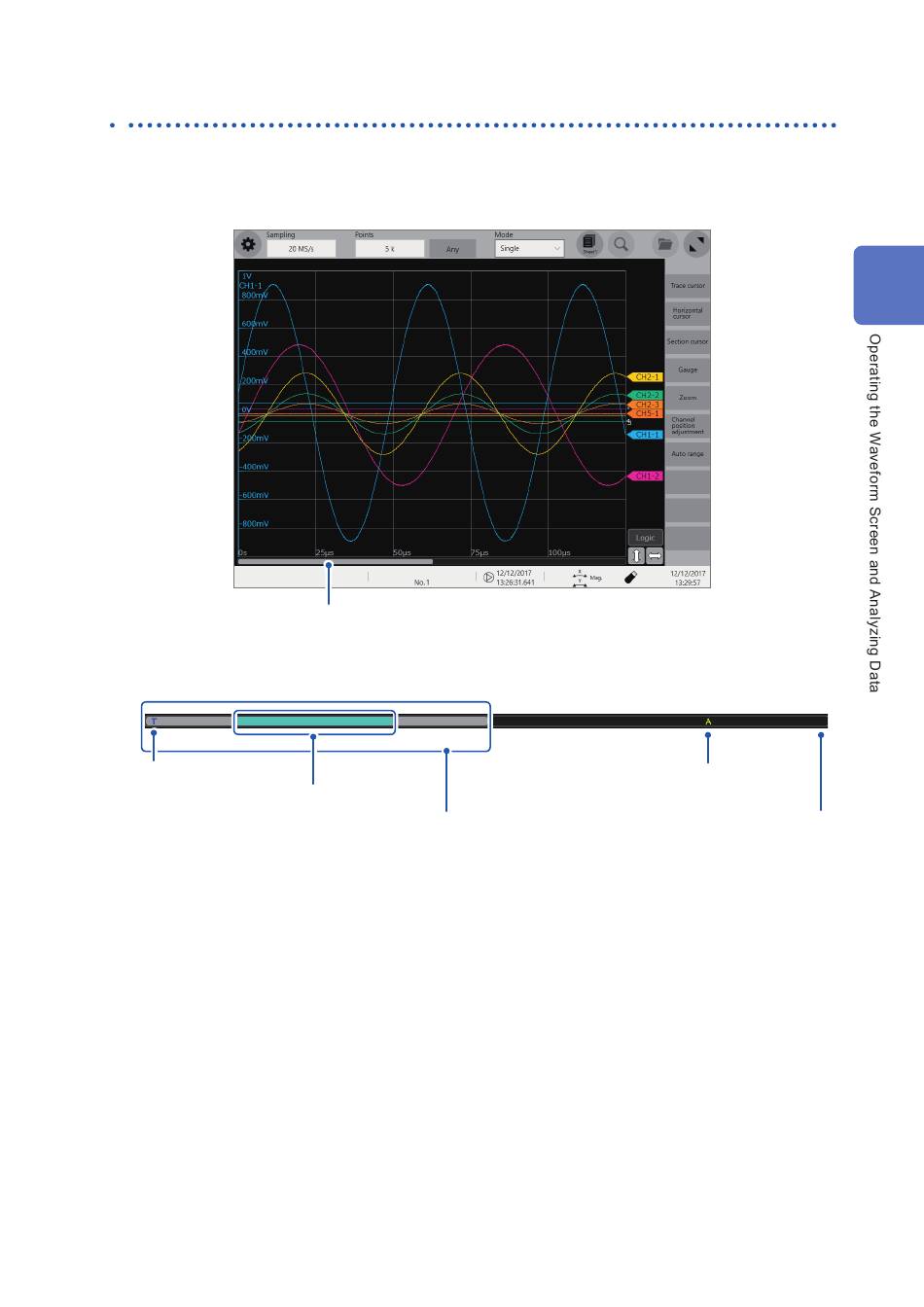

Checking a position of waveforms with the scroll bar
The scroll bar provides the position and size of the displayed part of the waveforms relative to
the entire recording length of the waveforms. It also shows the positions of the trigger point, trace
cursors, and section cursors.
Verifying the position of the trigger point and cursors on the scroll bar
Trigger point
Section cursor position
With the display zoomed in, the scroll bars are displayed at both the top and bottom.
Scroll bar
Screen display range
Scrolling Waveforms
Trace cursor A
Recorded range
