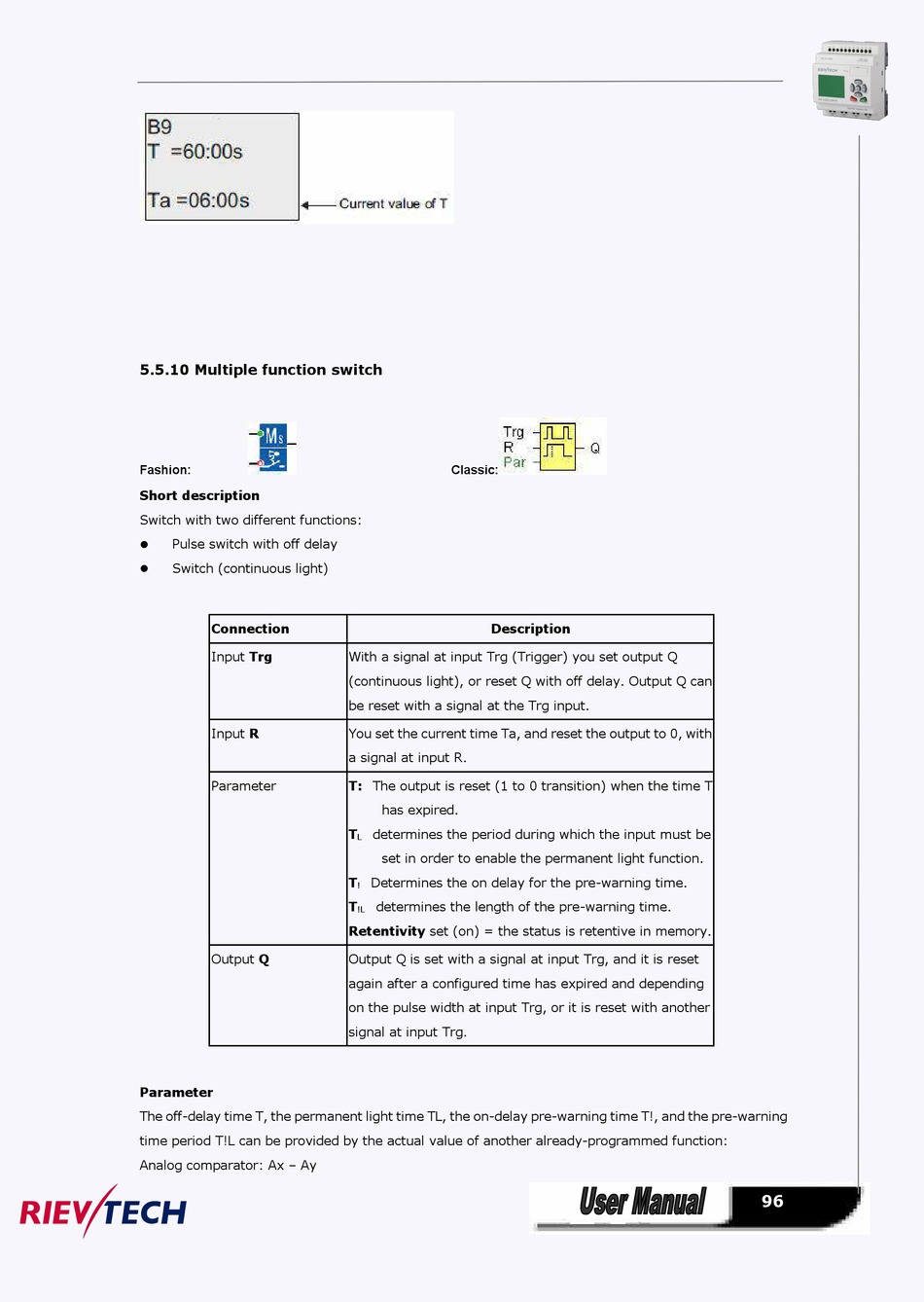

5.5.10 Multiple function switch

Fashion:
Short description
Switch with two different functions:
Pulse switch with off delay

Switch (continuous light)

Connection
Input Trg
Input R
Parameter
Output Q
Parameter
The off-delay time T, the permanent light time TL, the on-delay pre-warning time T!, and the pre-warning
time period T!L can be provided by the actual value of another already-programmed function:
Analog comparator: Ax – Ay
Classic:
Description
With a signal at input Trg (Trigger) you set output Q
(continuous light), or reset Q with off delay. Output Q can
be reset with a signal at the Trg input.
You set the current time Ta, and reset the output to 0, with
a signal at input R.
T: The output is reset (1 to 0 transition) when the time T
has expired.
T
determines the period during which the input must be
L
set in order to enable the permanent light function.
T Determines the on delay for the pre-warning time.
!
T determines the length of the pre-warning time.
!L
Retentivity set (on) = the status is retentive in memory.
Output Q is set with a signal at input Trg, and it is reset
again after a configured time has expired and depending
on the pulse width at input Trg, or it is reset with another
signal at input Trg.
