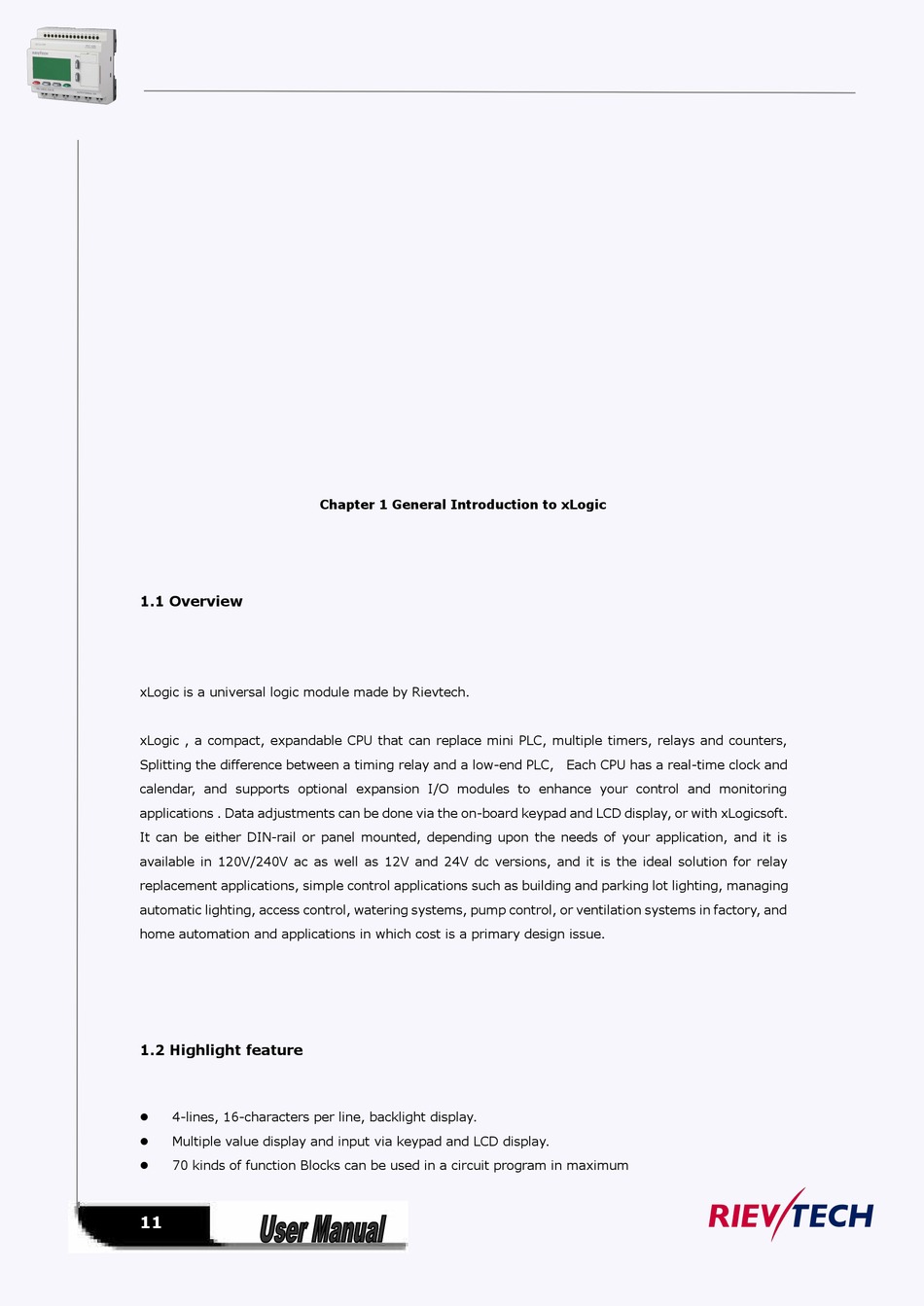

Chapter 1 General Introduction To Xlogic; Overview; Highlight Feature - Rievtech xLogic ELC Series User Manual

1.1 Overview

xLogic is a universal logic module made by Rievtech.
xLogic , a compact, expandable CPU that can replace mini PLC, multiple timers, relays and counters,
Splitting the difference between a timing relay and a low-end PLC, Each CPU has a real-time clock and
calendar, and supports optional expansion I/O modules to enhance your control and monitoring
applications . Data adjustments can be done via the on-board keypad and LCD display, or with xLogicsoft.
It can be either DIN-rail or panel mounted, depending upon the needs of your application, and it is
available in 120V/240V ac as well as 12V and 24V dc versions, and it is the ideal solution for relay
replacement applications, simple control applications such as building and parking lot lighting, managing
automatic lighting, access control, watering systems, pump control, or ventilation systems in factory, and
home automation and applications in which cost is a primary design issue.

1.2 Highlight feature

4-lines, 16-characters per line, backlight display.

Multiple value display and input via keypad and LCD display.

70 kinds of function Blocks can be used in a circuit program in maximum

