3.4.3 Connecting xLogic Outputs

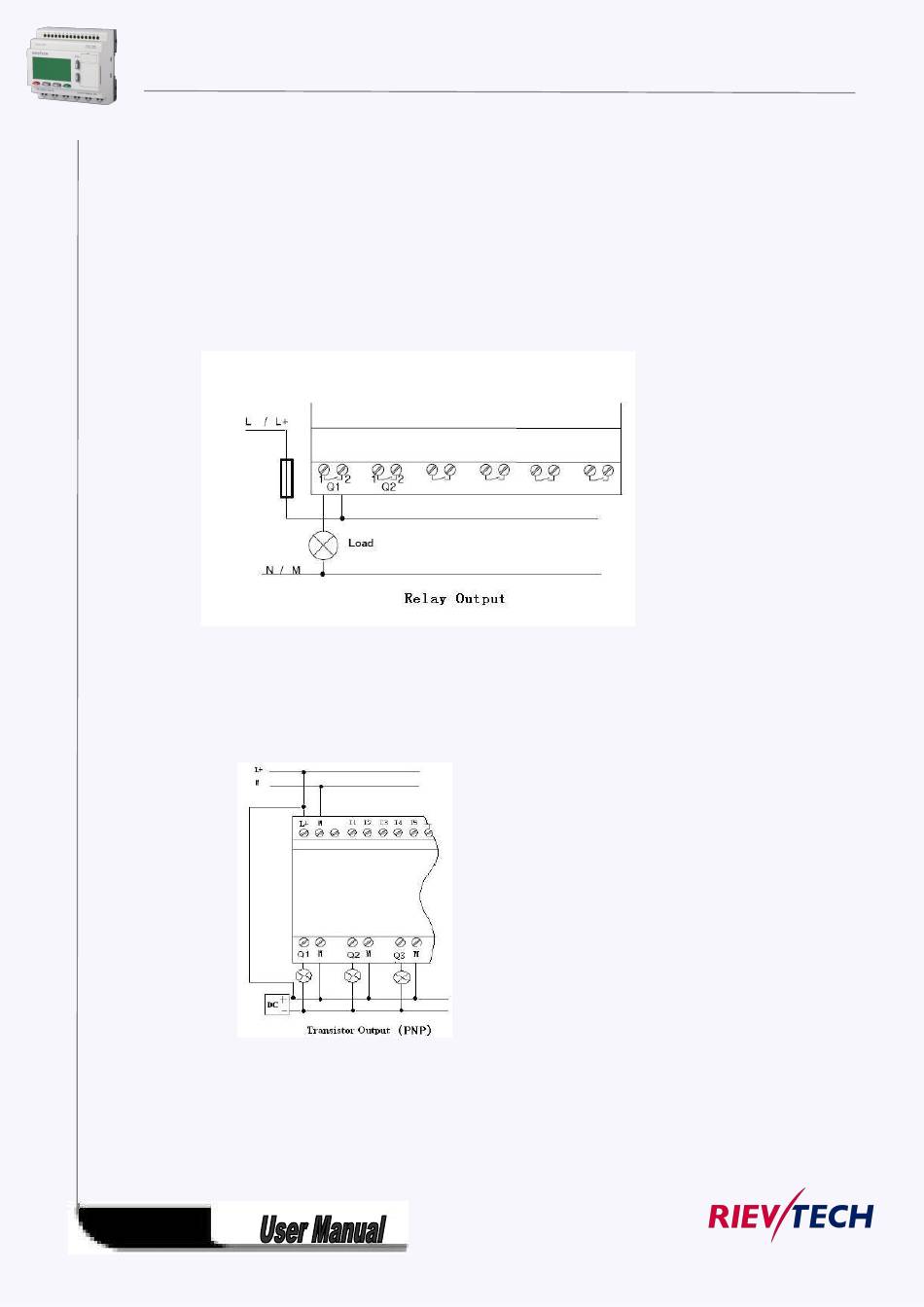

1. Requirement for the relay output
Various loads such as lamp, fluorescent tube, motor, contact, etc., can be connected to the outputs of
xLogic. The maximum ON output current that can be supplied by xLogic is 10A for the resistance load and
3A for the inductive load. The connection is in accordance with the following figure:
2. Requirement for the electronic transistor output:
The load connected to xLogic must have the following characteristics:
* The maximum switch current cannot exceed 0.3A.
* When the switch is ON (Q=1), the maximum current is 0.3A.
Notes (PNP):
* The load connecting voltage must be ≤60VDC and it must be DC.
* The "+" terminal of the output wiring must be connected with the DC positive
voltage, and it must be connected with the "L+" terminal of the xLogic power ，a
load must be connected with the "-" terminal of the DC negative voltage.
