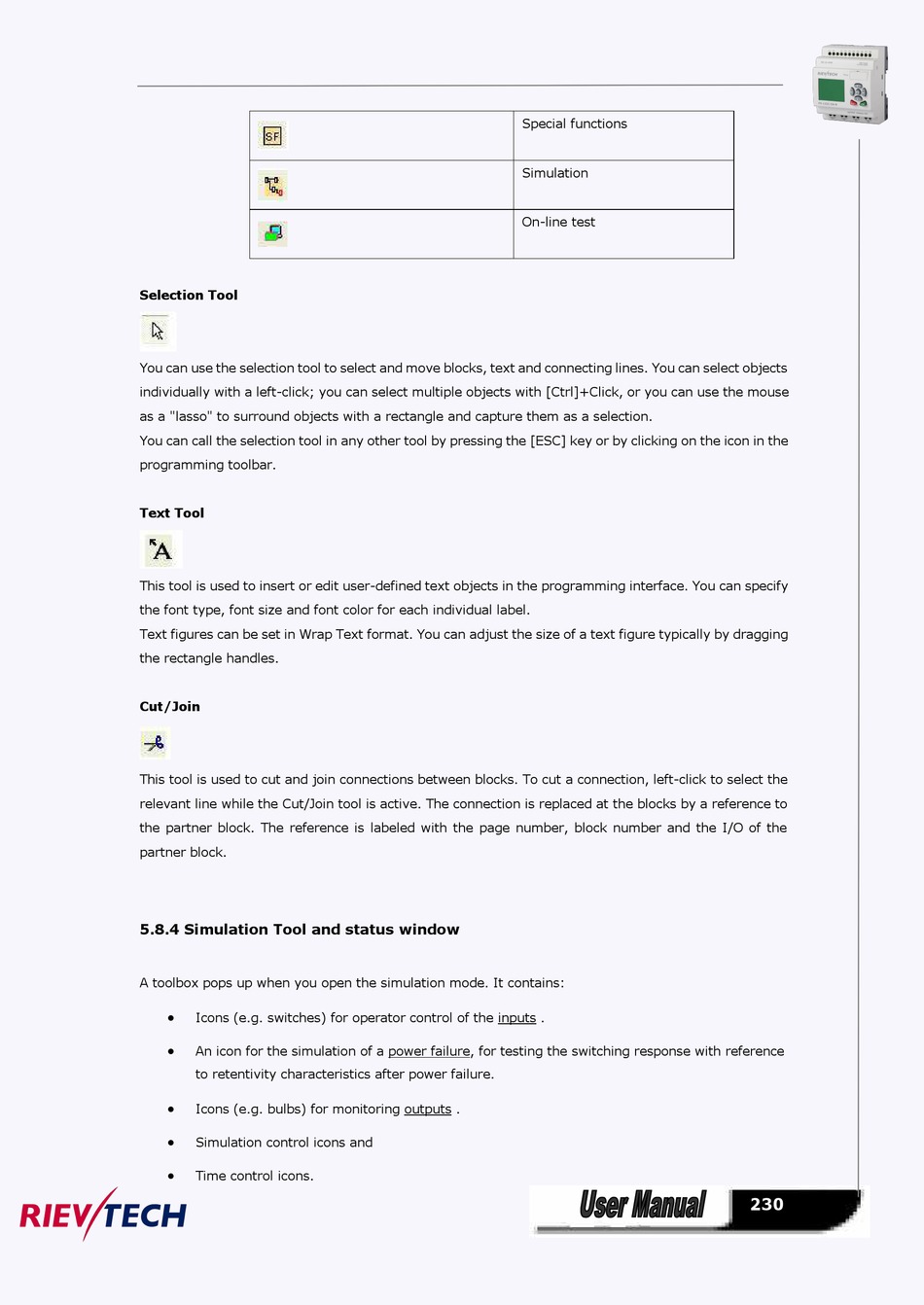

Selection Tool
You can use the selection tool to select and move blocks, text and connecting lines. You can select objects
individually with a left-click; you can select multiple objects with [Ctrl]+Click, or you can use the mouse
as a "lasso" to surround objects with a rectangle and capture them as a selection.
You can call the selection tool in any other tool by pressing the [ESC] key or by clicking on the icon in the
programming toolbar.
Text Tool
This tool is used to insert or edit user-defined text objects in the programming interface. You can specify
the font type, font size and font color for each individual label.
Text figures can be set in Wrap Text format. You can adjust the size of a text figure typically by dragging
the rectangle handles.
Cut/Join
This tool is used to cut and join connections between blocks. To cut a connection, left-click to select the
relevant line while the Cut/Join tool is active. The connection is replaced at the blocks by a reference to
the partner block. The reference is labeled with the page number, block number and the I/O of the
partner block.
5.8.4 Simulation Tool and status window
A toolbox pops up when you open the simulation mode. It contains:
Icons (e.g. switches) for operator control of the inputs .
An icon for the simulation of a power failure, for testing the switching response with reference
to retentivity characteristics after power failure.
Icons (e.g. bulbs) for monitoring outputs .
Simulation control icons and
Time control icons.
Special functions
Simulation
On-line test
230
