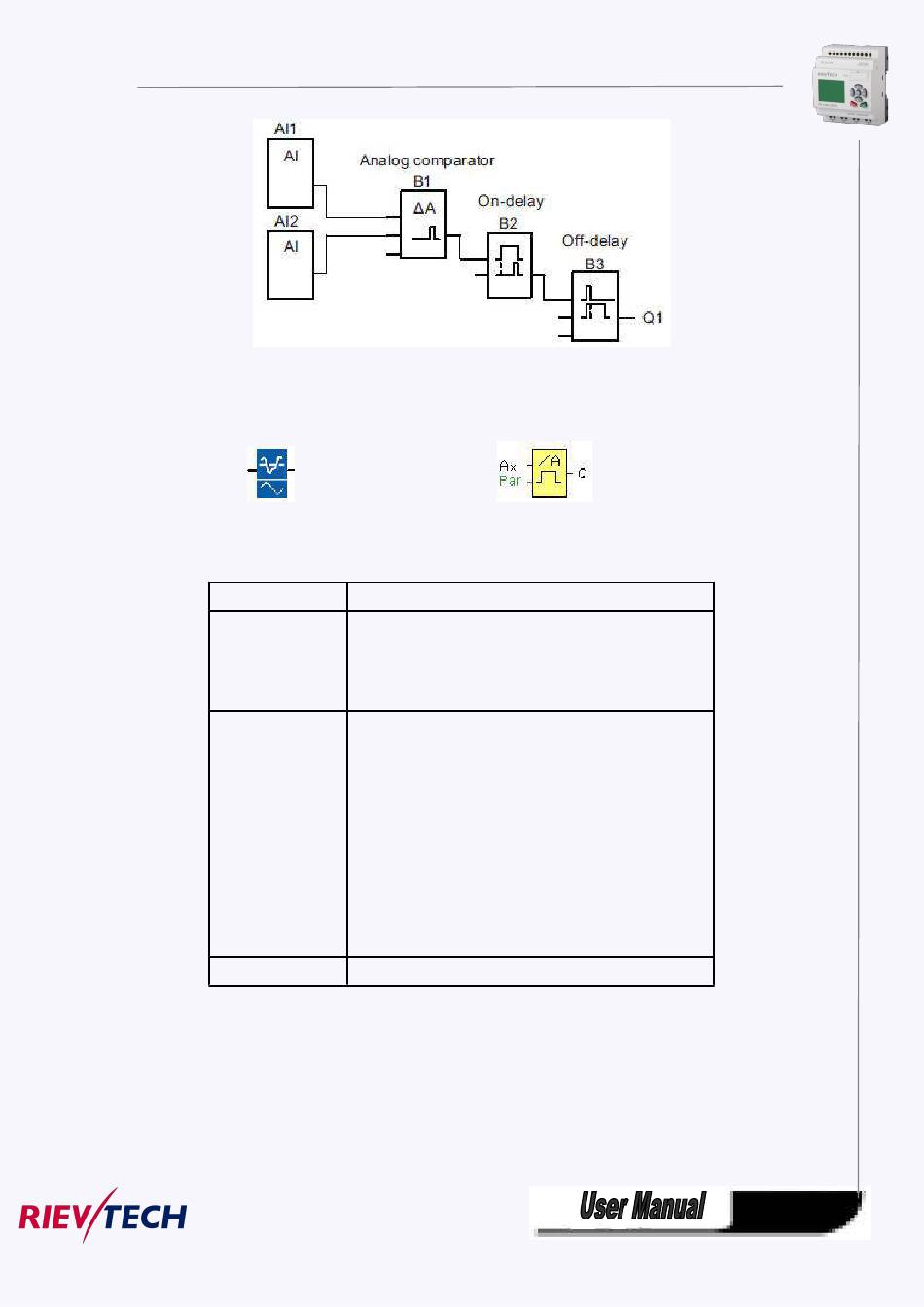

5.5.22 Analog threshold trigger

Fashion:
Short description
The output is set or reset depending on two configurable thresholds (hysteresis).
Connection
Input Ax
Parameter
Output Q
Parameter On and Off
The On and Off parameters can be provided by the actual value of another already-programmed
function:
Analog comparator: Ax – Ay
Analog trigger: Ax
Analog amplifier: Ax
Classic:
Description
Input the analog signal to be evaluated at input Ax.
Use the analog inputs AI1...AI8, the analog outputs AQ1
and AQ2.
0 - 10 V is proportional to 0 - 1000 (internal value).
A: Gain
Range of values: ± 10.00
B: Zero offset
Range of values: ± 10,000
On: On threshold
Range of values: ±20,000
Off: Off threshold
Range of values: ± 20,000
p: Number of decimals
Range of values: 0, 1, 2, 3
Q is set or reset depending on the set thresholds.
