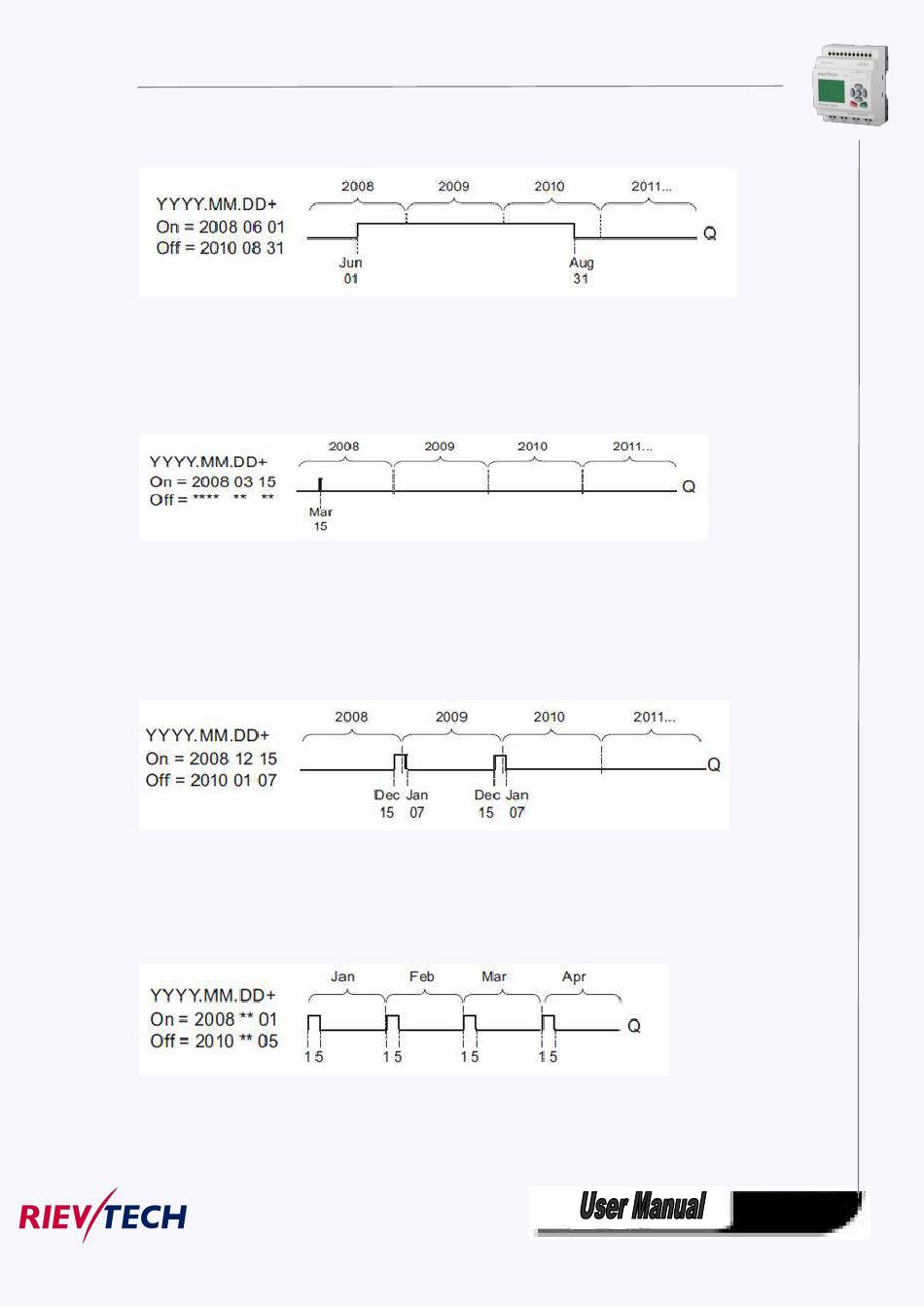

2008-08-31: On June 1, 2008 the timer output switches on and remains on until August 31,
2010.
Example 6: Yearly mode off, Monthly mode off, Pulse selected, On Time = 2008-03-15, Off Time =
****-**-**: On March 15, 2008 the timer output switches on for one cycle. Because the timer does not
have a monthly action or yearly action, the timer output pulses only one time
at the specified On Time.
Example 7: Yearly mode on, Monthly mode off, Pulse off, On Time = 2008-12-15, Off Time =
2010-01-07: On December 15 of 2008 and 2009, the timer output switches on and remains
on until January 7 of the following year. When the timer output turns off on January 7, 2010 it
does NOT turn on again the following December 15.
Example 8: Yearly mode on, Monthly mode on, On Time = 2008-**-01, Off Time = 2010-**-
05: Starting in 2008, on the first day of each month the timer output switches on and switches off on the
fifth day of the month. The timer continues in this pattern through the last month of 2010.
Description of the function
The yearly timer sets and resets the output at specific on and off times.
The off-date identifies the day on which the output is reset again. The first value defines the month, the
second the day.
