For example If AF2 =800, then the settings is equal to 08:00;
AF2=2105, then the On time would be 21:05;
If AF3=1023, then the OFF time would be 10:23;
Note:
If the AF value is over 2323, it will be not available for the On/Off time, the output of the weekly timer will
be 0.

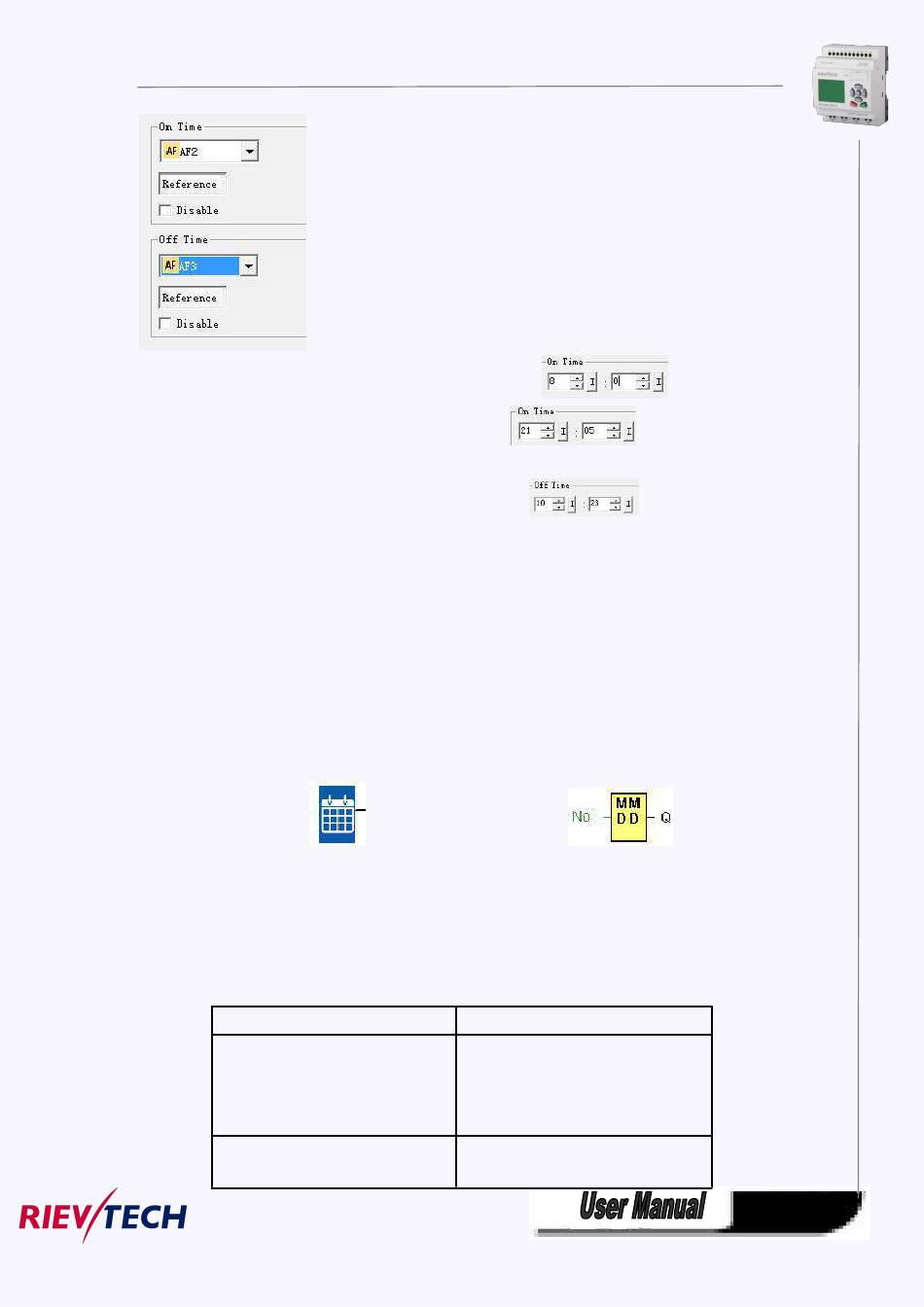

5.5.12 Yearly timer

Fashion:
Caution
Your xLogic must be equipped with an internal real-time clock if you are going to use this SFB.
Short description
The output is controlled by means of a configurable on/off date
Connection
Parameter
Output Q
Classic:
Description
At the No (cam) parameter
you set the on and off trigger
for the cam of the yearly
timer.
Q is set on when the
configured cam is switched on.
102
