Notes:
1.The Bit4--Bit15 was not ticked, they are all recognized as 0.
2. With such block you can realize to modify one bit of the word register in the slave devices together
with the code 06/16 in Modbus network.

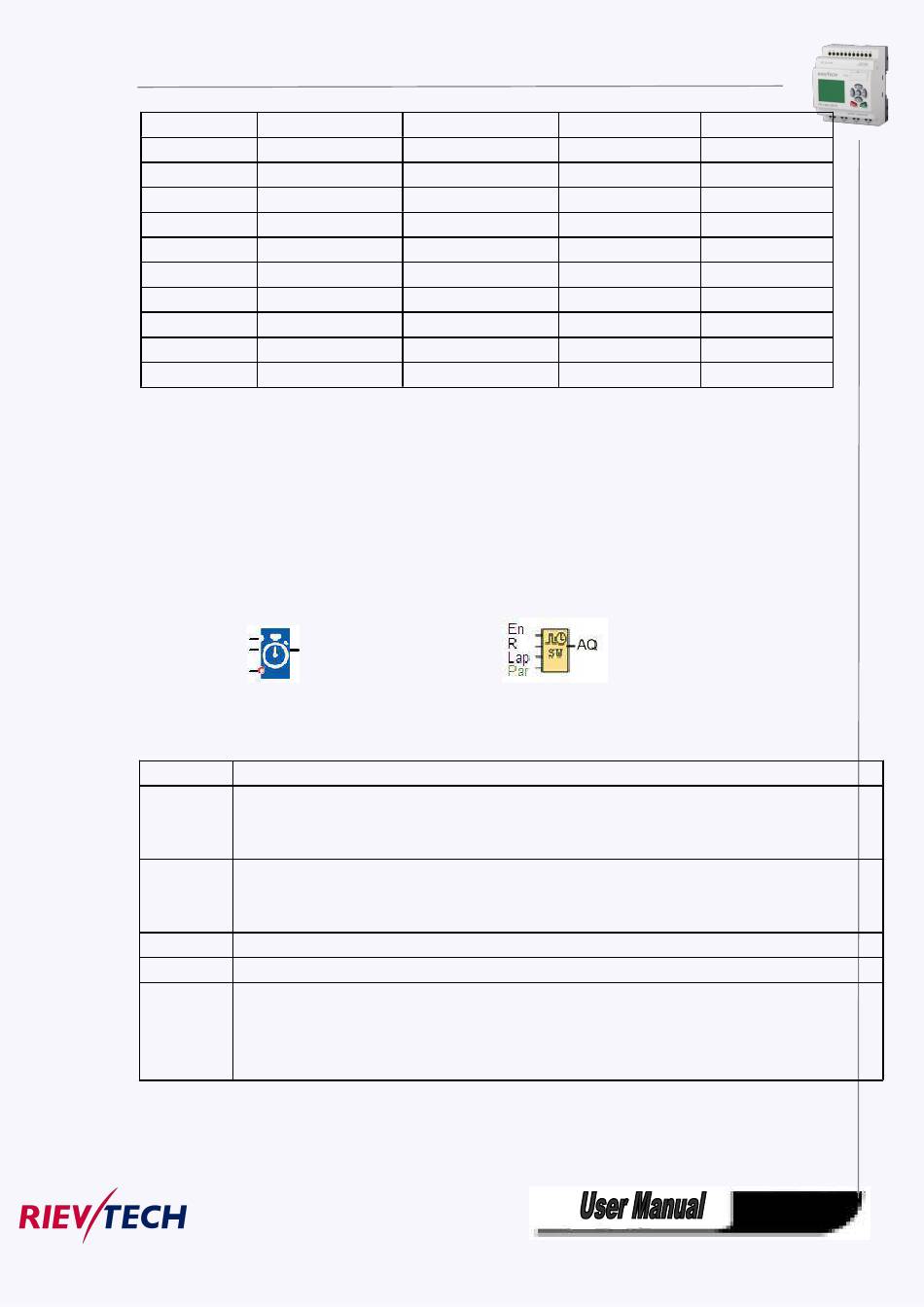

5.5.41 Stopwatch

Fashion:
Short description
The stopwatch records the time elapsed since it was enabled.
Connection Description
Input En En (Enable) is the monitoring input. xLogic sets the current elapsed time to 0 and begins
counting elapsed time when En transitions from 0 to 1. When En transitions from 1 to 0,
the elapsed time is frozen.
Input Lap A positive edge (0 to 1 transition) at input Lap pauses the stopwatch, and sets output to lap time.
A negative edge (1 to 0 transition) at input Lap resumes the stopwatch, and set the output to
current elapsed time..
Input R A signal at input R (Reset) clears the current elapsed time and lap time.
Parameter Time base for elapsed time, which you can set to hours, minutes, seconds, or 1/100ths of seconds.
Output AQ The output AQ outputs value of the current elapsed time when it is a negative edge (1 to 0 transition)
at the input Lap, and outputs value of the Lap time when it is a positive edge (0 to 1 transition)
at the input Lap.
A positive edge (0 to 1 transition) resets the value at output AQ to 0.
Parameters Time base
You can configure the time base for the analog output:
1 0
1 0
1 0
0 1
0 1
0 1
0 1
1 1
1 1
1 1
1 1
Classic:
5
6
7
8
9
10
11
12
13
14
15
